| Brand Name: | GEZHI or OEM |
| Model Number: | DWDM-8CH-D-2Slot1U |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

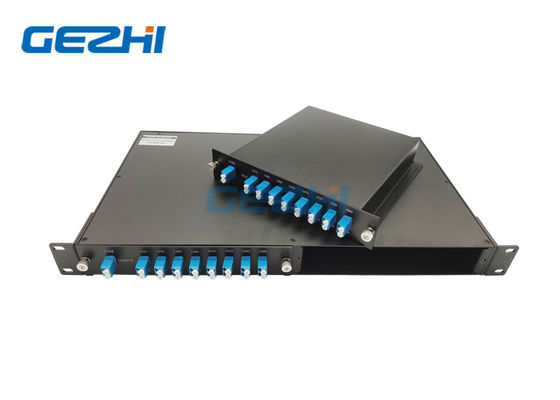

Double Fiber DWDM mux Passive filters 1x8 Channels networks
GEZHI’ Double Fiber DWDM mux Passive filters 1x8 Channels networks is a low loss, high density passive optical module which based on the thin film coating technology with C27, C28, C29, C30, C31, C32, C33, C34 at ITU grid wavelength C1 to C61 for customs choice. The Double Fiber DWDM mux Passive filters 1x8 Channels networks offers an high channel isolation WDM solution for data centers and Metro access applications. Its package with 2slot 19" 1U Rack Mount LC/UPC adaptor. The Double Fiber DWDM mux Passive filters 1x8 Channels networks is ideal for long-haul transport of fiber optic singals all over a dual fiber. GEZHI's Dense Wavelength Division Multiplexing (DWDM) is an important milestone in the evolution of fiber optic transmission technology
|
Features |
Applications |
|
|
Specification
| Parameter | Unit | Passive Filters DWDM | |
| Channel Number | -- | 1x8 Channels | |
| Operation Wavelength | nm | C27~C34 | |
| Channel Central Wavelength | nm | ITU-T Grid @DWDM | |
| Channel Passband | nm | 0.8 (100Ghz) | |
| Insertion Loss @PB | dB | <2.8 | |
| Isolation @Adjacent Channel | dB | >30 | |
| Isolation @Non-adjacent Channel | dB | >40 | |
| Isolation @Reflect Channel | dB | >15 | |
| Passband Ripple | dB | <0.5 | |
| Polarization Dependent Loss | dB | <0.15 | |
| Polarization Mode Dispersion | ps | <0.1 | |
| Directivity & Return Loss | dB | Directivity: >50 Return Loss:>45 | |
| Power Handling | mW | <500 | |
| Connector | -- | LC/UPC | |
| Fiber Type | -- | SMF-28e or Customized | |
| Operating Temperature | ℃ | -20 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Package Dimension | mm | 2Slots 19" 1U Rackkmount | |
GEZHI's Double Fiber DWDM mux Passive filters 1x8 Channels networks offers high-capacity terminal DWDM solutions for network expansion. This Double Fiber DWDM mux Passive filters 1x8 Channels networks is used for long-haul transmission where wavelengths are packed tightly together over the C-band in 100GHz grid (0.8nm). The Double Fiber DWDM mux Passive filters 1x8 Channels networks is protocol transparent and suited for applications including SDH/SONET, 10/1G Ethernet, 16/8/4/2/1G Fibre Channel, CATV, FTTx, etc.
Double Fiber DWDM mux Passive filters 1x8 Channels networks
19“ 1U Rackmount
8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules
Dual Fiber DWDM
|
|
