| Brand Name: | GEZHI or OEM |
| Model Number: | DWDM-8CH-S-1U |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
Optical Passive Dense Wavelength Division Multiplexer Modules 8 CH One Fiber
GEZHI’ Optical Passive Dense Wavelength Division Multiplexer Modules 8 CH One Fiber is a low loss, high density passive optical module which based on the thin film coating technology with C21,C22,C23,C24,C25,C26,C27,C28 wavelength or ITU grid wavelength C1 to C61 for customs choice. The Optical Passive Dense Wavelength Division Multiplexer Modules 8 CH One Fiber offers an high channel isolation WDM solution for data centers and Metro access applications. Its package with 19" 1U Rack Mount LC/UPC adaptor. The Optical Passive Dense Wavelength Division Multiplexer Modules 8 CH One Fiber is ideal for long-haul transport of fiber optic singals all over a single fiber.
|
Features |
Applications |
|
|
Specification
| Parameter | Unit | 8 CH Optical Passive DWDM | |
| Channel Number | -- | 1x8CH | |
| Operation Wavelength | nm | C21~C28 | |
| Channel Central Wavelength | nm | ITU-T Grid @DWDM | |
| Channel Passband | nm | 0.8 (100Ghz) | |
| Insertion Loss @PB | dB | <2.8 | |
| Isolation @Adjacent Channel | dB | >30 | |
| Isolation @Non-adjacent Channel | dB | >40 | |
| Isolation @Reflect Channel | dB | >15 | |
| Passband Ripple | dB | <0.5 | |
| Polarization Dependent Loss | dB | <0.15 | |
| Polarization Mode Dispersion | ps | <0.1 | |
| Directivity & Return Loss | dB | Directivity: >50 Return Loss:>45 | |
| Power Handling | mW | <500 | |
| Connector | -- | LC/UPC | |
| Fiber Type | -- | SMF-28e or Customized | |
| Operating Temperature | ℃ | -20 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Package Dimension | mm | 19" 1U Rack Mount | |
GEZHI's Optical Passive Dense Wavelength Division Multiplexer Modules 8 CH One Fiber offers high-capacity terminal DWDM solutions for network expansion. This 8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules is used for long-haul transmission where wavelengths are packed tightly together over the C-band in 100GHz grid (0.8nm). The Optical Passive Dense Wavelength Division Multiplexer Modules 8 CH One Fiber is protocol transparent and suited for applications including SDH/SONET, 10/1G Ethernet, 16/8/4/2/1G Fibre Channel, CATV, FTTx, etc.

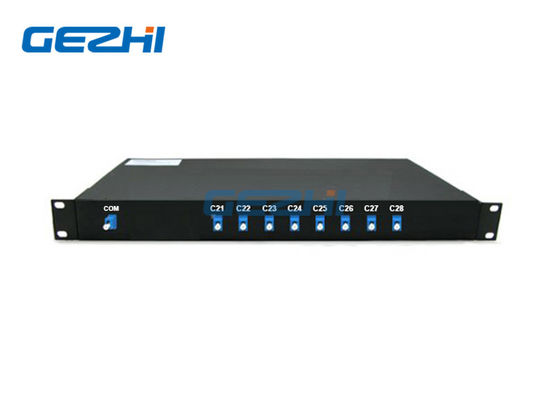

Optical Passive Dense Wavelength Division Multiplexer Modules 8 CH One Fiber
19“ 1U Rackmount
8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules
Dual Fiber DWDM
|
|
