| Brand Name: | GEZHI or OEM |
| Model Number: | DWDM-8CH-D-1U |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules
GEZHI’ 8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules is a low loss, high density passive optical module which based on the thin film coating technology with C27, C28, C29, C30, C31, C32, C33, C34 wavelengthwith a upgrade port for future development and Fibre Extender or ITU grid wavelength C1 to C61 for customs choice. The 8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules offers an high channel isolation WDM solution for data centers and Metro access applications. Its package with 19" 1U Rack Mount LC/UPC adaptor. The 8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules is ideal for long-haul transport of fiber optic singals all over a dual fiber.
|
Features |
Applications |
|
|
Specification
| Parameter | Unit | 8 Channels Fiber Optic Multiplexer | |
| Channel Number | -- | 1x8CH | |
| Operation Wavelength | nm | C27~C34 +Upgrade Port | |
| Channel Central Wavelength | nm | ITU-T Grid @DWDM | |
| Channel Passband | nm | 0.8 (100Ghz) | |
| Insertion Loss @PB | dB | <2.8 | |
| Isolation @Adjacent Channel | dB | >30 | |
| Isolation @Non-adjacent Channel | dB | >40 | |
| Isolation @Reflect Channel | dB | >15 | |
| Passband Ripple | dB | <0.5 | |
| Polarization Dependent Loss | dB | <0.15 | |
| Polarization Mode Dispersion | ps | <0.1 | |
| Directivity & Return Loss | dB | Directivity: >50 Return Loss:>45 | |
| Power Handling | mW | <500 | |
| Connector | -- | LC/UPC | |
| Fiber Type | -- | SMF-28e or Customized | |
| Operating Temperature | ℃ | -20 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Package Dimension | mm | ABS box 100x80x10mm | |
GEZHI's 8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules offers high-capacity terminal DWDM solutions for network expansion. This 8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules is used for long-haul transmission where wavelengths are packed tightly together over the C-band in 100GHz grid (0.8nm). The 8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules is protocol transparent and suited for applications including SDH/SONET, 10/1G Ethernet, 16/8/4/2/1G Fibre Channel, CATV, FTTx, etc.

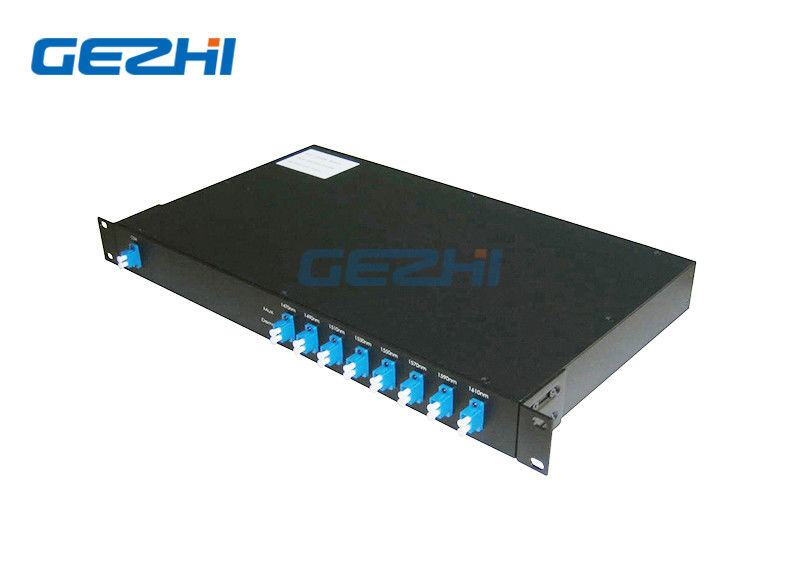

8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules
19“ 1U Rackmount
8 Channels Fiber Optic Multiplexer Optical Passive DWDM Mux Modules
Dual Fiber DWDM
|
|
