| Brand Name: | GEZHI or OEM |
| Model Number: | 1x8CHDWDM-LGX |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

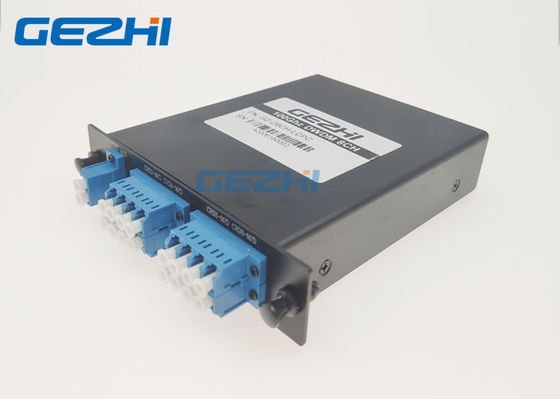

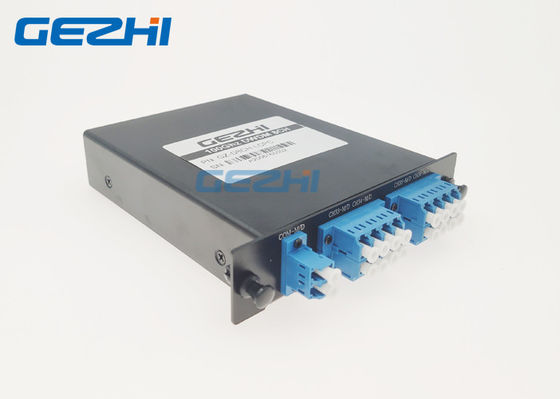

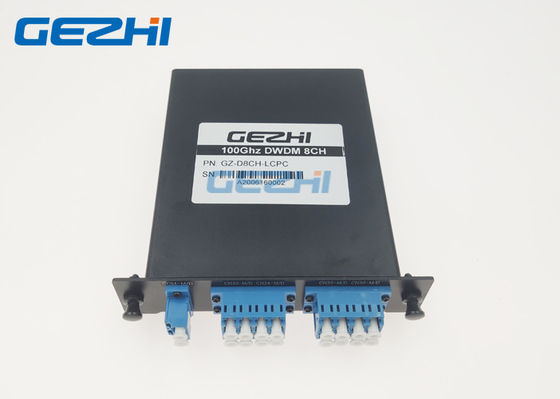

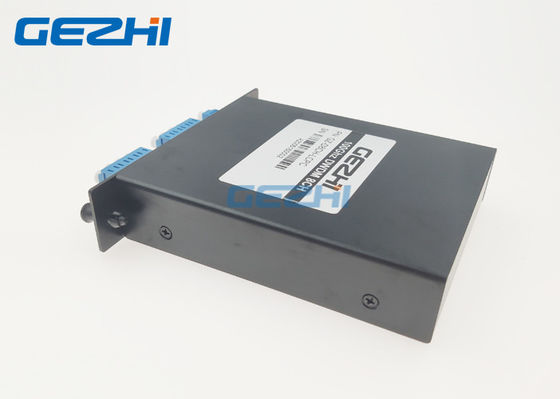

1x8 Channel Fiber Optical Passive Dense Wavelength Division Multiplexer
GEZHI’ 1x8 Channel Fiber Optical Passive Dense Wavelength Division Multiplexer is a low insertion loss, high density passive optical module which based on the thin film coating technology with C33, C34, C35, C36, C37, C38, C39, C40 wavelength. The 1x8 Channel Fiber Optical Passive Dense Wavelength Division Multiplexer offers an high channel isolation WDM solution for data centers and Metro access applications. Its package a 8CH DWDM mux and 8CH DWDM Demux module in a plug-in LGX Cassette with LC/UPC adaptor. The 1x8 Channel Fiber Optical Passive Dense Wavelength Division Multiplexer is ideal for long-haul transport of fiber optic singals all over a dual fiber.
Features
Low Insertion Loss
High stability and reliability
High channel
Wide pass band
Epoxy-Free Optical Path
Applications
Wavlength Routing
Access / Enterprise Networks
CATV Fiber Optic Links
Long Haul Networks
Metro Networks
Channel Add/Drop
Dense WDM Systems
Specification
| Parameter | Unit | 8CH DWDM Mux and Demux | |
| Channel Number | -- | 8 Channel | |
| Operation Wavelength | nm | C33~C40 | |
| Channel Central Wavelength | nm | ITU-T Grid @DWDM | |
| Channel Passband | nm | 0.8 (100Ghz) | |
| Insertion Loss @PB | dB | <2.5 | |
| Isolation @Adjacent Channel | dB | >30 | |
| Isolation @Non-adjacent Channel | dB | >40 | |
| Isolation @Reflect Channel | dB | >15 | |
| Passband Ripple | dB | <0.5 | |
| Polarization Dependent Loss | dB | <0.15 | |
| Polarization Mode Dispersion | ps | <0.1 | |
| Directivity & Return Loss | dB | Directivity: >50 Return Loss:>45 | |
| Power Handling | mW | <500 | |
| Connector | -- | LC/UPC | |
| Fiber Type | -- | SMF-28e or Customized | |
| Operating Temperature | ℃ | -20 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Package Dimension | mm | 130x129x29 | |
1x8 Channel Fiber Optical Passive Dense Wavelength Division Multiplexer filter cascading
1x8 Channel Fiber Optical Passive Dense Wavelength Division Multiplexer
Dual Fiber DWDM
|
