| Brand Name: | GEZHI or OEM |
| Model Number: | 8CH-CWDM |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
8 CH Coarse WDM Mux Demux Module 1470~1610 + wide band 1310nm

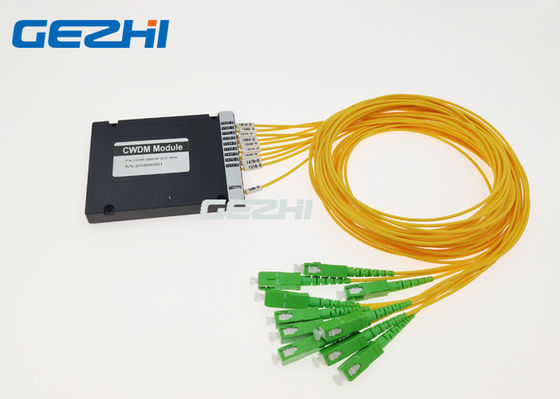

GEZHI's 8 CH Coarse WDM Mux Demux Module 1470~1610 + wide 1310nm is ABS module with SC/APC pigtailed. This 8 CH Coarse WDM Mux Demux Module 1470~1610 + wide 1310nm can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost, low power consumption and small compact, it is widely used in access layer and metro aggregation to do transmission on a short time.
The 8 CH Coarse WDM Mux Demux Module 1470~1610 + wide 1310nm for Short-haul Transmission. It's protocol and rate transparent supporting such applications as SDH/SONET, 1G/10G Ethernet and 8/4/2/1G Fiber Channel across the same fiber link.
Features
Ultra low insertion loss
Wide pass band
High stability and reliability
high channel isolation
Protocal and rate transparent for applications up to 10Gbps
Completely passive, no power& no cooling required
Applications
WDM network
Fiber optical amplifier
Access Network
Line monitoring
Telecommunication
Cellular Application
Specification
| Parameter | 8CH Mux or Demux | |
| Center Wavelength (nm) | ITU, ITU+1 | |
| Passband (nm) | ITU±6.5 | |
| Operating Wavelength (nm) | 1470~1610nm + Wide 1310nm | |
| Channel Space (nm) | 20 | |
| Fiber Type | SMF-28e or customer specified | |
| IL (dB) | <2.8dB | |
| Isolation(dB) | Adjacent Channel | 30 |
| Non-Adjacent Channel | 45 | |
| PDL (dB) | 0.2 | |
| PMD (ps) | 0.1 | |
| Return Loss (dB) | 45 | |
| Directivity (dB) | 50 | |
| Maximum Optical Power (mw) | 500 | |
| Operating Temperature (℃) | -20~+70 | |
| Storage Temperature (℃) | -40～85 | |

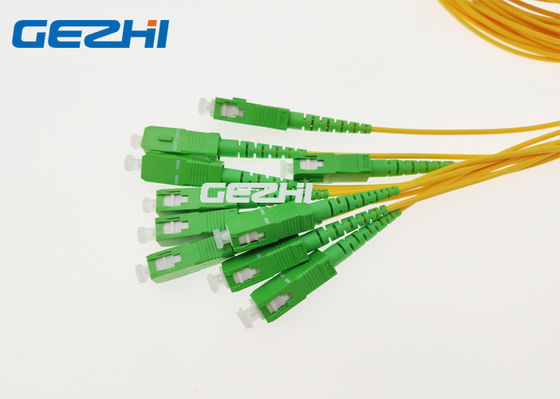

| Connector | SC/APC | |

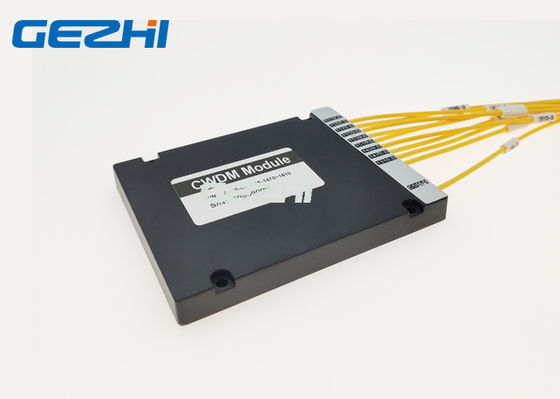

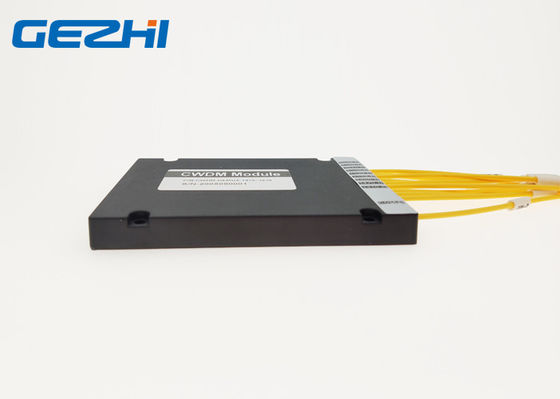

| BOX Package (mm) | ABS box 100x80x10 | |
Note: 1. Customization is available.
2. Specification maybe changed without notice.
8 CH Coarse WDM Mux Demux Module 1470~1610 + wide band 1310nm
Filter cascading
8 CH Coarse WDM Mux Demux Module 1470~1610 + wide band 1310nm
Single Fiber transmission
8 CH Coarse WDM Mux Demux Module 1470~1610 + wide band 1310nm
Package
|
|
