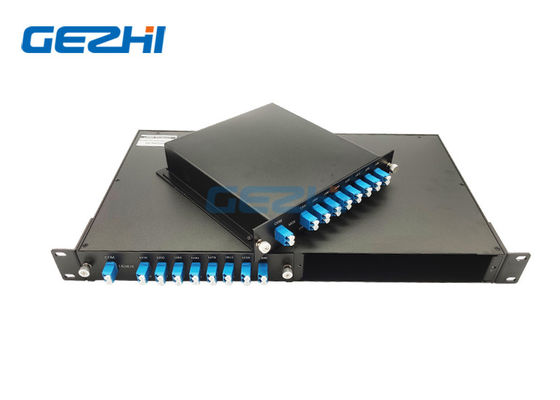

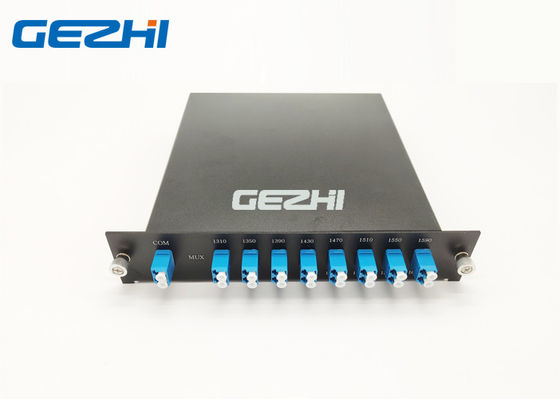

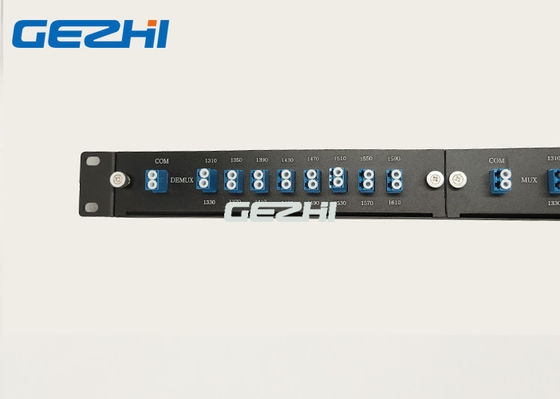

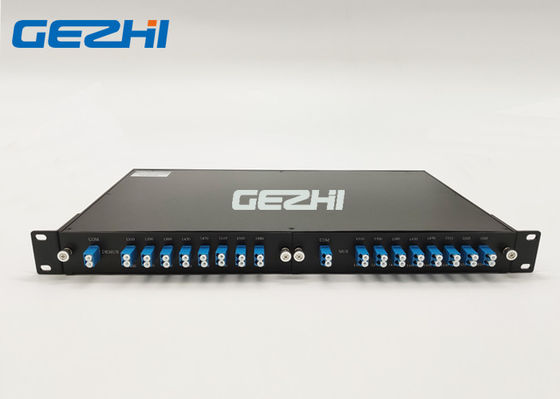

2 Units CWDM Mux/Demux FMU Plug-in Module in 2-Slot 1U 19" Rack Chassis
GEZHI 16CH CWDM Mux/Demux FMU Plug-in Module is built a 16CH Mux LGX cassette + 16CH Demux LGX cassette in one 19" 1U Rack-mount. The wavelenght of 16CH CWDM Mux/Demux FMU Plug-in Module is 1310 to 1610nm. The 16CH CWDM Mux/Demux FMU Plug-in Module offers an high channel isolation WDM solution for data centers and Metro access applications. And working at dual optical network fiber.
|
Features |
Applications |
|
|
Specification
| Parameter |
Unit |
16CH CWDM Mux/Demux | ||
| Mux | Demux | |||
| Channel Wavelength | nm | 1310~1610nm | ||
|
Center wavelength Accuracy |
nm | ±0.5 | ||
| Channel Spacing | nm | 20 | ||
|
Channel Passband (@-0.5dB bandwidth |
nm | >13 | ||
| Max Insertion Loss | dB | <4.5 or with skip <3.5 | <4.5 or with skip <3.5 | |
| Channel Ripple | dB | 0.3 | ||
| Isolation | Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature Sensitivity |
dB/℃ |
<0.005 |
||
|
Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent Loss |
dB | <0.1 | ||
|
Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | >50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -20~+70 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | 2-slot 19" 1U Rackmount | ||
Ordering Information
| CWDM | - | XXX | - | XX | - | XX | - | XX | - | XX | - | XX |
| Number of Channels | Module type | Cable type | Fiber length | Input connector |
Output connector |
|||||||
|
M=Mux |
01=1Channel 02=2 Channel 03=3 Channel 04=4 Channel ...... 16=16Channel 17=17Channel 18=18Channel |
0=100x80x10 mm |
00=none 09=900um Loose tube 20=2.0mm 30=3.0mm |
05=0.5m 10=1.0m 15=1.5m 30=3.0m 40=4.0m 50=5.0m ...... |
0=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC X=Customized |
0=none |
16CH CWDM Mux/Demux Filter cascading
2 Units 16CH CWDM Mux/Demux FMU Plug-in Module in 2-Slot 1U 19" Rack Chassis
2 Units 16CH CWDM Mux/Demux FMU Plug-in Module in 2-Slot 1U 19" Rack Chassis
Two Fiber
|
|
