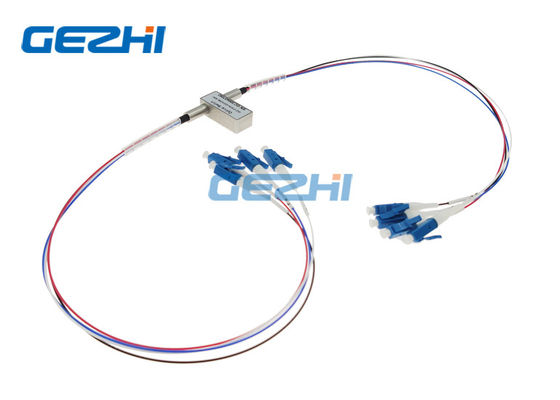

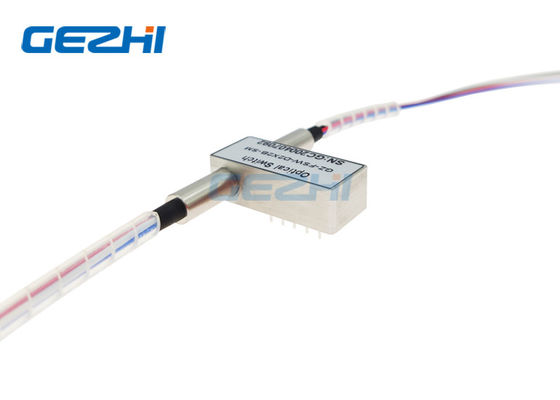

Dual 2x2B Fiber Optical Switches mini 4x4 fiberoptic bypass switch
GEZHI's Dual 2x2B is designed for use in measurement instruments and optical fiber communication networks. Its comes with 4 input and 4 output. This mini 4x4 fiberoptic bypass switch is achieved using a opto-mechanical configuration and activated via an electrical control signal. This advanced design of GEZHI Dual 2x2B fiber optical switches offering unprecedented high stability as well as an unmatched low cost.
Features
Highly Stable & Reliable
Short switching time
Compact design, Miniature size
Low Insertion Loss
Wide operating wavelength Range
Fail-Safe Latching and Non-latching
Single mode or Multimode optional
Applications
System Monitor
Configurable OADM
Metropolitan Area Network
R&D in Laboratory
Specification
| Parameters | Unit | GZ-FSW-D2×2B | |
| Wavelength Range | nm | 670~980 | 1260~1650 |
| Operating Wavelength | nm | 670/785/850/980 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.6 Max:1.0 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥30 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20~+70 | |
| Storage Temperature | ℃ | -40~+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27.0×(W)12.6×(H)8.0(±0.2mm) customization is available. | |
Order Information
GZ-FSW-D2x2B-x-xx-x-x-x-xx-x-x
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC |

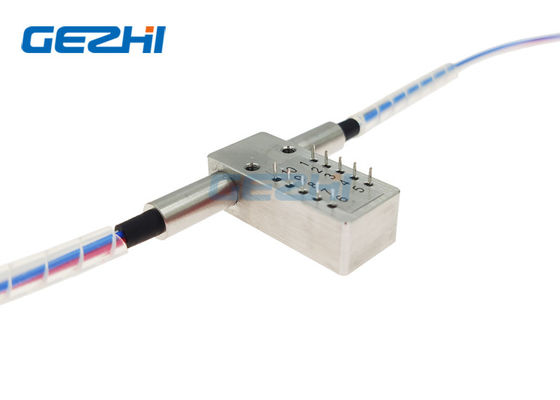

Pins
| Control model | Optical Path | Electric Drive | Status Sensor | ||||||
| D2×2B | Light Pin | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
| Non-latching | P1-P3 P1’-P3’ | -- | -- | -- | -- | Close | Open | Open | Close |
|
P1-P4, P1’-P4’ P3-P2, P3’-P2’ |
V+ | -- | -- | GND | Open | Close | Close | Open | |
Electric
| Specifications | Voltage | Current | Resistance |
| 5V Latching | 4.5~5.5 | 36~44mA | 125Ω |
| 5V Non-latching | 4.5~5.5 | 26~32mA | 175Ω |
| 3V Latching | 2.7~3.3 | 54~66mA | 50Ω |
| 3V Non-latching | 2.7~3.3 | 39~47mA | 70Ω |

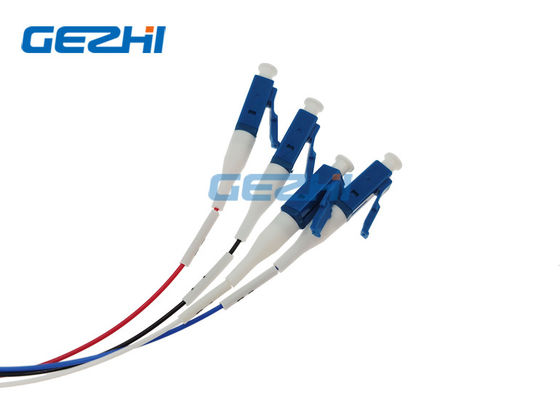

Package Picture
