1x32 SM Optical Fiber Switch Module TTL interface 1310/1550nm FC/PC
GEZHI 1x32 SM Optical Fiber Switch is a kind of light path control equipment. It can realize multi-channel fiber optic light path switching. The 1x32 Optical fiber switch is modularized design with drive circuit breakdown self-checking function. It is used for multi light source/detector selection, multi-channel fiber monitoring, and optical fiber path protection etc in the optical fiber transmission system. Besides, it is also used in optical fiber test system for outdoor cable test optical fiber and related component test and multi-spot optical sensors monitoring system.
GEZHI also can supply 1x32 2x32 Rackmount optical switch, of course, customized optical switch is available.
Features
Low Loss and High Reliability
Parallel Interface (TTL)
Modularized Design
Drive Circuit Breakdown Self-checking Function
Epoxy-free on Optical Path
Applications
Ring Network
Testing of Fiber, Optical Component
Remote Monitoring in Optical Network
Specification
| Parameter | Parameter Values |
| Model | OSW-1X32 |
| Insertion Loss | ≤0.8 dB |
| Wavelength Range | 1260~1650 nm |
| Test Wavelength | 1310/1550 nm |
| Fiber Type | SM, 9/125um(SMF-28) |
| Return Loss | ≥50 dB |
| Crosstalk | ≥ 70 dB |
| PDL | ≤0.05 dB |
| WDL | ≤0.25 dB |
| TDL | ≤0.25 dB |
| Repeatability | ≤0.02 dB |
| Lifetime | > 107 |
| Switching Time | ≤8 ms (Adjacent channel) |
| Optic Power | ≤500 mW |
| Connector | FC/PC |
| Control Mode | TTL |
| Working Power Supply | 5V/500 mA |
| Product Sze | 135 x 64 x 46 |
| Operating Temperature | -20 ℃ to +70 ℃ |
| Operating Temperature | -40 ℃ to +85 ℃ |
Note: 1. Customization is available.
Pin Specifications
| DB-15 male connector | |||
| Pin No. | I / O | Signal | Description |
| 2 | Input | D0 |
D0~ D5 is channel selection Bit0~Bit5,D0 is low, D5 is high |
| 3 | Input | D1 | |
| 4 | Input | D2 | |
| 5 | Input | D3 | |
| 6 | Input | D4 | |
|
11 |
Input |
RESET |
TTL, Low level reset to channel 0. High level means channel selection bits are effective. |
| 7 | Out | READY | TTL, Ready (High=Not ready, Low=Ready) |
| 8 | Out | ERROR | TTL, Error OR Failure , (High=Error, Low=No error) |
| 1,9 | Power | GND | Ground |
| 12 | Power | VCC1 | 5.0±5% VDC Motor Power Supply (max 500mA) |
| 15 | Power | VCC2 | 5.0±5% VDC Circuit Power Supply (max 50mA) |
| 4,6,7,8,10,13,14 | NC | NC | vacancy |

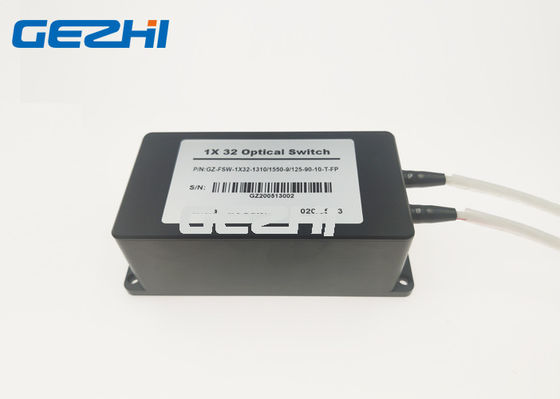

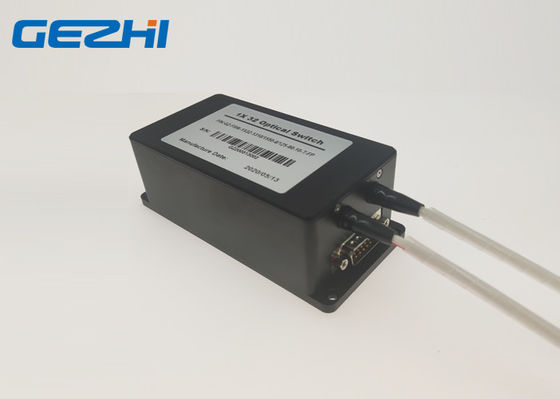

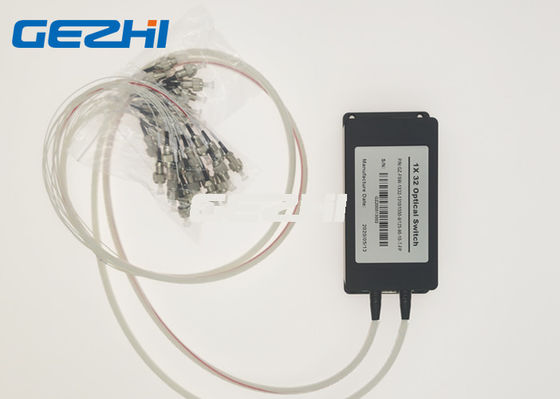

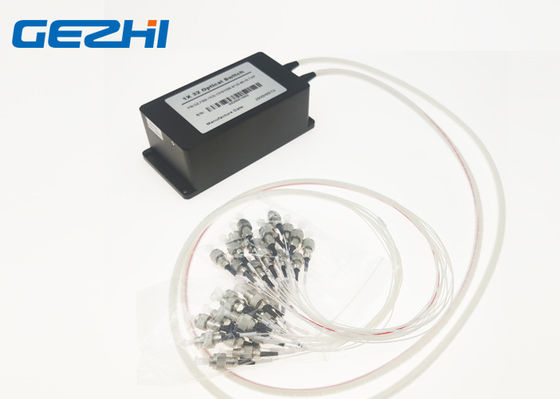

1x32 Optical Switch picture
