| Brand Name: | GEZHI or OEM |
| Model Number: | 1x2 Optical Switch |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

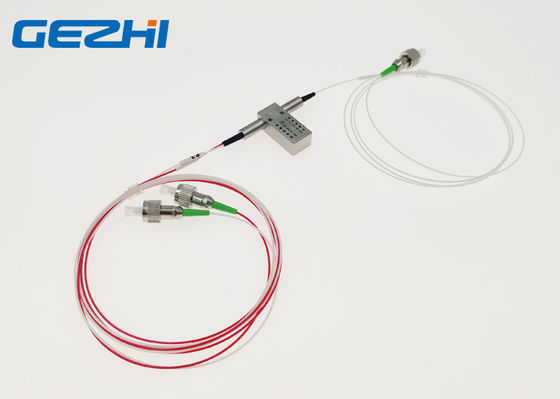

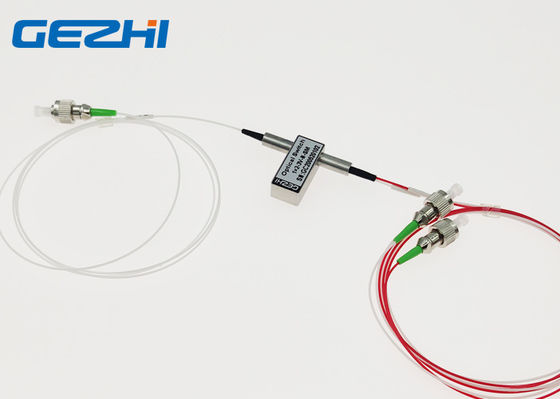

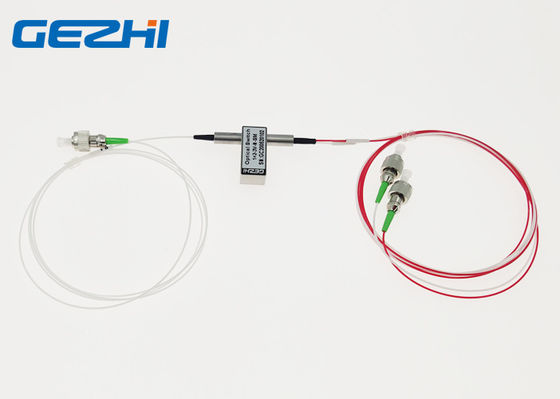

1260~1650nm broad wavelength 1x2 Optical Switch 3V FC/APC connector

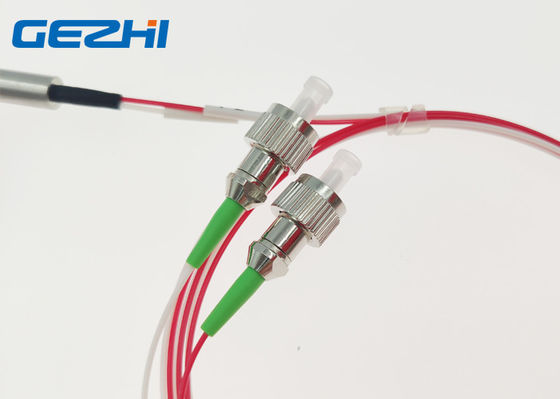

GEZHI 1260~1650nm broad wavelength Optical switch configurate by 1x2 type with Three fibers and two states. It connect with FC/APC green connector and Non-latched 3V voltage. GEZHI 1260~1650nm broad wavelength 1x2 optical switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. The optical Switch is apllication in Optical Network monitoring, wavelength router and reconfigurable add/drop multiplexers.
Features
Low Insertion Loss
Smallest Size
Non-latched type 3V voltage
FC/APC connector
Industrial Type Available
PCB Mountable
Applications
Optical network protection and restoration
Research and development
Transmission equipment protection
1x2 Optical Switch Order Information
GZ-FSW-1x2-x-xx-x-x-x-xx-x-xx
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
|
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LP/APC X=Others |
Specification
|
Parameters |
GZ-FSW-1×2 | ||
| Wavelength Range | nm | 850±40 / 1300±40 | 1260~1650 |
| Operating Wavelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.5 Max:1.0 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
|
Power Supply |
V | 3.0 or 5.0 | |
| Lifetime | Time | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20~+80 | |
| Storage Temperature | ℃ | -40~+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27×(W)12.0×(H)8.2 | |
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.
Pins
| Type | Pin | Electric Drive | Status sensor | ||||||
| 1×2 | channel | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
| Latching | P1-P2 | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
| Non-latching | P1-P2 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
Optical Route
| Status One | Status Two |
|
|
|
