| Brand Name: | GEZHI or OEM |
| Model Number: | 1x8T Optical Switches |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

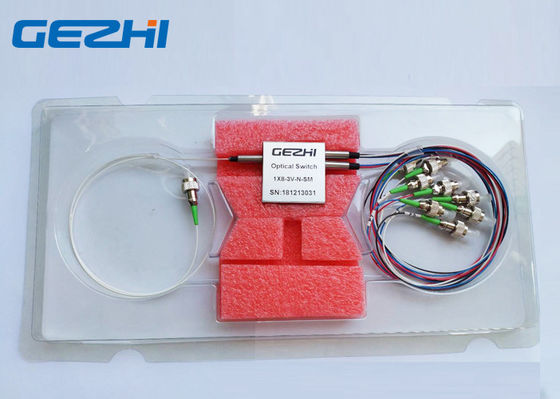

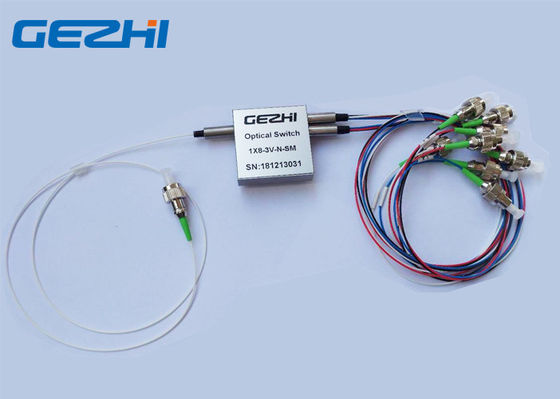

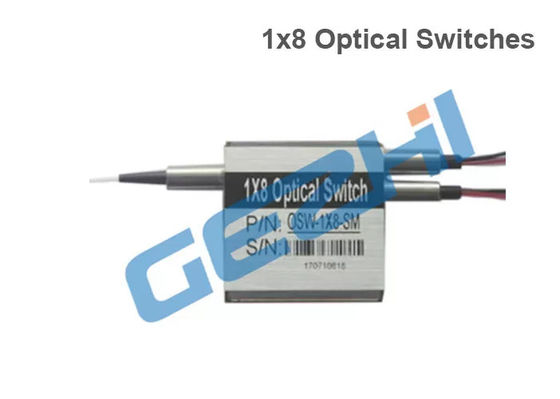

Latched Fiber optic Switches 1x8 Opto-Mechanical Optical Switch with small size 1310&1550nm
GEZHI ’ 8x1 Fiber Optic Switch (1×8 Mechanical Optical Switches) support 1310&1550nm. The Optical Switch is a 8x1 prism optical switch. It can support 8 optical fibers input and 1 fiber output, channel switch. Wide operating wavelength range, low insertion loss and speedy switching rate, can use network trends configuration, network monitor and lab application.
Features
Bi-directionalLow optical distortions
Miniature size
Low Insertion Loss, Low cross talk
Short switching time
Wide operating wavelength Range
Applications
Metropolitan Area Network
System monitoring
Network protection and restoration
R&D in Laboratory
Instrumentation, testing, and measurement
Specification
| 1×8 Optical Switch T-type | Unit | Typical |
| Operation Wavelength | nm | 1310&1550nm |
| Insertion Loss | dB | <1.2 |
| Wavelength Dependent Loss | dB | <0.30 |
| Polarization Dependent Loss | dB | <0.1 |
| Return Loss | dB | >55 |
| Cross Talk | dB | >55 |
| Switching Time | ms | Typical: 4 Max:10 |
| Repeatability | dB | <±0.02 |
| Durability | Cycles | >10 Million |
| Switching Type | Latching / Non-Latching | |
| Optical Power Handling | mW | <500mW |
| Operating Voltage | VDC | 3V or 5V |
| Operating Temperature | ℃ | 0~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Fiber Type | / | SM/MM Fiber |
| Package Dimension | mm | 35L x 35W x 9H |
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.
Pins
Electric
| Specifications | Voltage | Current | Resistance |
| 5V latching | 4.5~5.5 V | 22.2(±10%) mA | 202.5(±10%) Ω |
| 5V non-latching | 4.5~5.5 V | 31(±10%) mA | 145(±10%) Ω |
| 3V latching | 2.7~3.3 V | 33.3(±10%) mA | 90(±10%) Ω |
| 3V non-latching | 2.7~3.3 V | 46.7(±10%) mA | 64.2(±10%) Ω |
Ordering Information
GZ-FSW-1x8T-x-xx-x-x-xx-xx-x
| X | XX | X | X | XX | XX | X |
| Mode | Wavelength | Voltage Type | Control Model | Fiber Diameter | Fiber Length | Connector |
|
S=SM 9/125 M5=MM 50/125 M6=MM 62.5/125 |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
25=250um 90=900um |
05=0.5m 10=1.0m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
Dimension
Video
|
|
