| Brand Name: | GEZHI or OEM |
| Model Number: | 2x2 Fiberoptic Switch |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

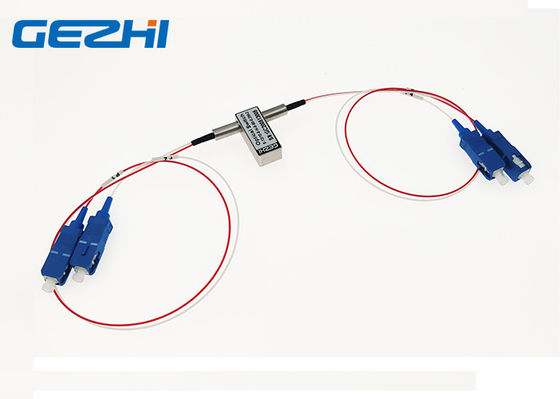

2x2 Bypass Mechanical Fiberoptic Switch Non-Latching SC/UPC connector
GEZHI 2x2 Bypass Fiberoptic Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal. The Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The 2x2 Bypass fiberoptic switches are true switching solution for optical networking applications.
Features
Unmatched Low Cost
Low Insertion Loss
High Channel Isolation
Highly Stable and Reliable
Epoxy Free Optical Path
Latching or Non-Latching
Applications
Optical Signal Routing
Optical Netrwork Protection/Restoration
Configurable Optical Add/Drop
Transmitter and Receiver Protection
Network Test Systems
Instrumentation
Specification
| Parameters | GZ-FSW-2×2B | ||
| Wavelength Range | nm | 850±40/1300±40 | 1260～1650 |
| Operating avelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20～+70 | |
| Storage Temperature | ℃ | -40～+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27.0×(W)12.0×(H)8.2 customization is available. | |
Pins
| Parameters | Pins | Electric Drive | Status Sensor | ||||||
| 2×2B | Optical Path | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
| Non-latching | P1-P3 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P4,P2-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
| latching | P1-P3 | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1-P4 P2-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
Optical Route
| Status One | Status Two |
|
|
|
Order Information
GZ-2×2B
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC |

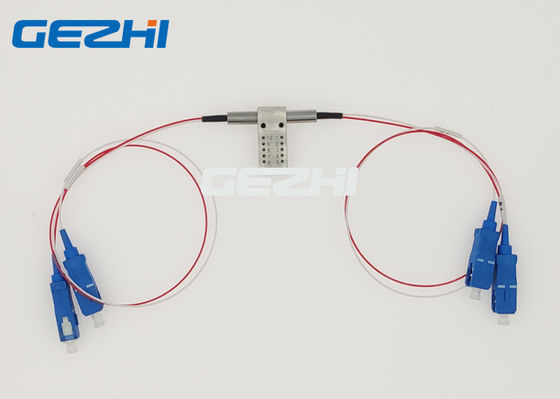

2x2 Bypass Fiberoptic Switch picture
