| Brand Name: | Gezhi or OEM |
| Model Number: | Gezhi-PLC Splitter |
| MOQ: | 1 pieces |
| Price: | Nigotiate |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
PLC Splitter SC/UPC 1*4 Insert Type product description
PLC Splitter SC/UPC 1*4 Insert Type fiber optic plc splitter

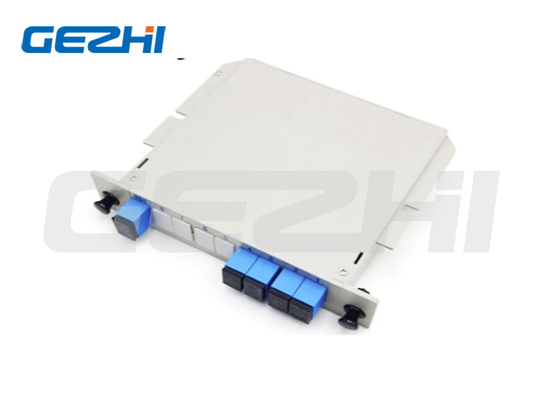

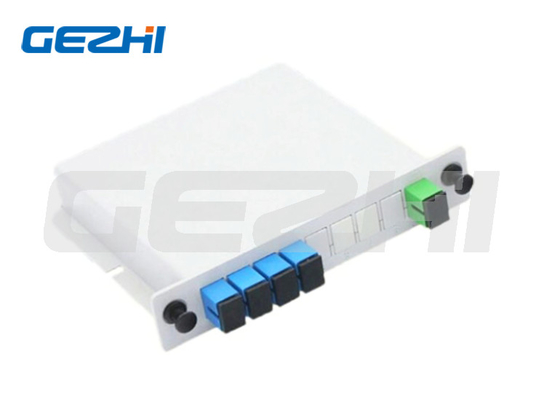

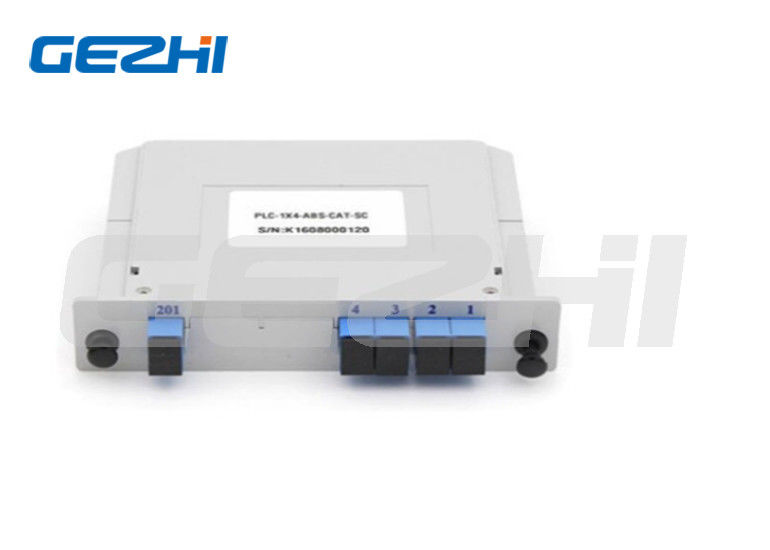

PLC Splitter SC/UPC 1*4 Insert Type is 1×4 PLC Fiber Optic Splitter Box SC/UPC Connector Insert Type Applied for optical networks
Planar waveguide optical splitter (PLC Splitter) is a kind of integrated waveguide optical power distribution device based on quartz substrate, which has the characteristics of small size, wide working wavelength range, high reliability and good spectroscopic uniformity, especially used in passive optical networks (EPON, GPON, etc.) to connect the central office and terminal equipment and realize the splitting of optical signals. Beiyi Fibercom specializes in the development and production of 1×N and 2×N full series of PLC planar waveguide optical splitters, packaging methods include steel tube packaging, ABS box, 1U rack and Mini module, 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 1×128, 2×2, 2×4, 2×8, 2×16, 2×32, 2×64, 2×128.
| 1*N Insert Type PLC Specifications | |||||||
| Items | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | Unit |
| Insertion loss | ≤4.2 | ≤7.20 | ≤10.5 | ≤13.5 | ≤16.9 | ≤20.5 | dB |
| Uniformity | ≤0.6 | ≤0.6 | ≤0.8 | ≤1.1 | ≤1.5 | ≤2.0 | dB |
| Modular package size | 100X80X10 | 120x80x18 | 140x115x18 | mm | |||
| (ABS Black Box) | Screw hole spacing: 74×70 | Screw hole spacing: 80×74 | crew hole spacing: 106×100 | ||||
| (LxWxH) | |||||||
| Test wavelength | 1310&1490&1550 | nm | |||||
| Operating wavelength range | 1260～1650 | nm | |||||
| Polarization-dependent losses | < 0.2 | < 0.3 | dB | ||||
| directionality | >55 | dB | |||||
| Return loss | >55 | dB | |||||
| Operating temperature | -40~+85 | ℃ | |||||
| Storage temperature | -40~+85 | ℃ | |||||
| 2*N Insert Type PLC Specifications | |||||||
| Items | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | 单位 |
| Insertion loss | ≤4.2 | ≤8.0 | ≤11.0 | ≤14.3 | ≤17.5 | ≤20.5 | dB |
| Uniformity | 0.6 | ≤1.5 | ≤1.5 | ≤1.8 | ≤2.3 | ≤2.5 | dB |
| Modular package size | 100x80x10 | 120x80x18 | 140x115x18 | mm | |||
| (ABS Black Box) | Screw hole spacing: 74×70 | Screw hole spacing: 80×74 | crew hole spacing: 106×100 | ||||
| (LxWxH) | |||||||
| Test wavelength | 1310&1490&1550 | mm | |||||
| Operating wavelength range | 1260～1650 | nm | |||||
| Polarization-dependent losses | < 0.2 | < 0.3 | dB | ||||
| directionality | >55 | dB | |||||
| Return loss | >55 | dB | |||||
| Operating temperature | -40~+85 | ℃ | |||||
| Storage temperature | -40~+85 | ℃ | |||||
