Fiber Optic Passive Components
Created with Pixso. 2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector

2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector

Brand Name: Gezhi or OEM
Model Number: 2x2 Optical Plc Splitter
MOQ: 1 pieces
Price: USD >= 1 pieces $5.6
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Package:
Stainless Steel Tube
Application:
GEPON
Fiber Connector:
LC/UPC, LC/APC, SC/UPC Etc.
Control Type:
G657A1
Fiber Type:
5V
Port:
2X2
Wavelength:
1260-1650nm
Packaging Details:
inner box,Carton
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

FC Connector PLC Optical Fiber Splitter

,

2x2 Mini PLC Optical Fiber Splitter

,

2 Way Fiber Optic PLC Splitter

Product Description

Product description



                    2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic Cable PLC Splitter with FC Connector

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. PLC splitters are
commonly found in PON(Passive Optical Networks), Datacom, LAN(Local Area Networks), CATV(Cable TV), LCP(Local Convergence Points),FTTx, and more applications, suitable for communication, medical, bank, building, large Office buildings, offices and other places with high-quality network requirements. Blockless PLC splitter is mainly used for the connection of outdoor optical distribution boxes or network cabinets, aiming to improve the utilization rate of customer ports.



2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 0

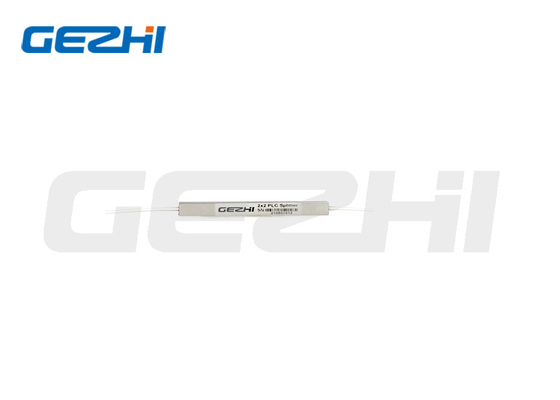

2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 1

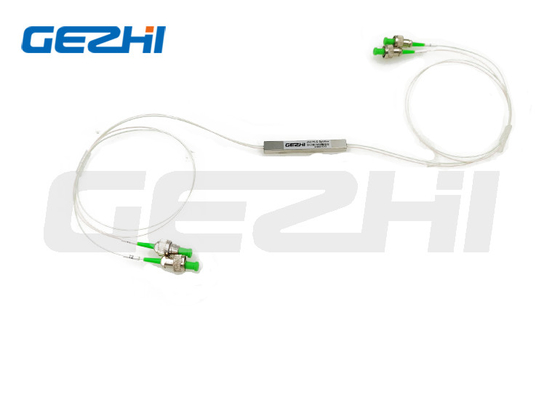

2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 2

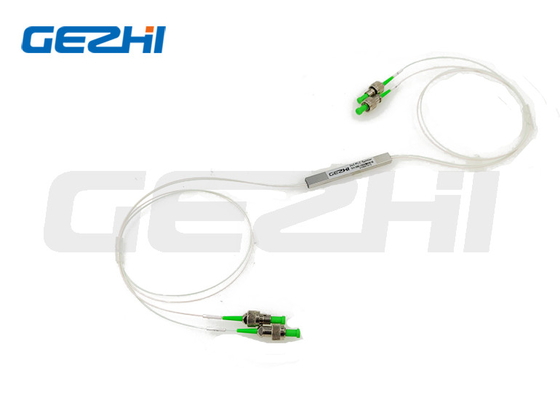

2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 3

Feature

Low Insertion Loss of 2X2 PLC splitter

Low PDL of 2X2 PLC splitter
High Return Loss
Uniform Power Splitting
Wide Operating Wavelength
Wide Operating Temperature
Good Environmental Stability
Qualified under Telcordia GR-1221 & GR-1209

PRODUCT SPECIFICATIONS
Description
2x2 Plc Splitter
Wavelength
nm
1260-1650
Insertion Loss
nm
≤4.1
Channel Uniformity
dB
≤1.0
Return Loss
dB
≥50
Directionality
dB
≥55
Polarization Dependent Loss
dB
≤0.2
Package Size
mm
4*7*60
Fiber Color
-
Blue Orange Green Brown or any color
Loose Tube Color
-
White
Maximum Power
mw
300
Operating Temperature
-10~75
Storage Temperature
-40~85
Fiber Type
-
G657A1
Package Style
-
1 PC / Blister Box



High Quality & Stability Material
2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 4



High Reliable & Stable quality
PLC Chip

2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 5



G657A1 Fiber with min10mm bend radius allow tighter or bending

2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 6



zirconia ceramic ferrules

Product packaging
2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 7
2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 8
2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 9
2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 10
Finished Item
Inner Package
Inner Box
Carton





Test Enviroment
2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 11
2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 12
2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 13
2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 14
NO-dust workshop
High Temp. Ageing & High-Low Temperature cycling
Relay Reliable Testing
100% Testing Before Shipment





SIMILAR PRODUCTS
2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 15
2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 16
2X2 Mini PLC Optical Fiber Splitter 2 Way Fiber Optic PLC Splitter With FC Connector 17



FAQ
Q1:Can I have a sample order? What is your MOQ for 2X2 PLC splitter?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms for 2X2 PLC splitter?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time for 2X2PLC splitter?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
