OEM 1x4 PLC Splitter With SC/APC Connectors PLC Fiber Optic Splitter

Name: OEM 1x4 PLC Splitter With SC/APC Connectors PLC Fiber Optic Splitter
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: PLC04CHXXAA
Price: Negotiable USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	PLC04CHXXAA
MOQ:	1 pieces
Price:	USD >= 1 pieces $2.5
Delivery Time:	7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Model:

PLC04CHXX

Package:

ABS Box Module

Fiber Connector:

LC/UPC, FC/APC, SC/APC Etc.

Application:

GEPON

Port:

1x4

Wavelength:

1260-1650nm

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

APC Connectors 1x4 PLC Splitter

fiber optic PLC splitter 1x4

SC/APC PLC Fiber Optic Splitter

Product Description

Product description

Splitter PLC Splitter 1x4 with SC/APC Connectors PLC

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Gezhi provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

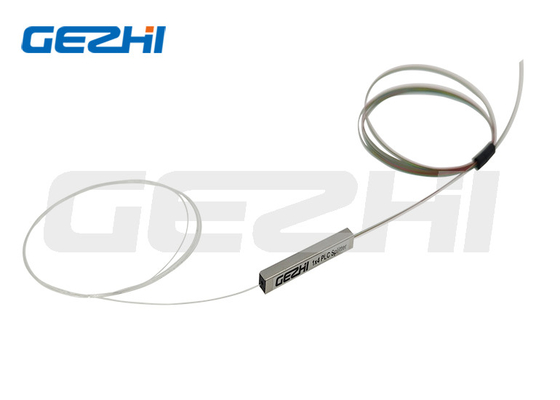

OEM 1x4 PLC Splitter With SC/APC Connectors PLC Fiber Optic Splitter 0

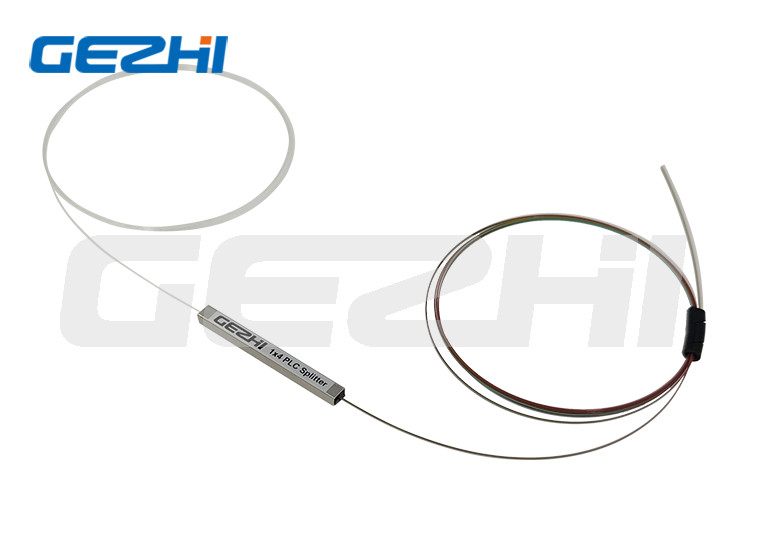

OEM 1x4 PLC Splitter With SC/APC Connectors PLC Fiber Optic Splitter 1

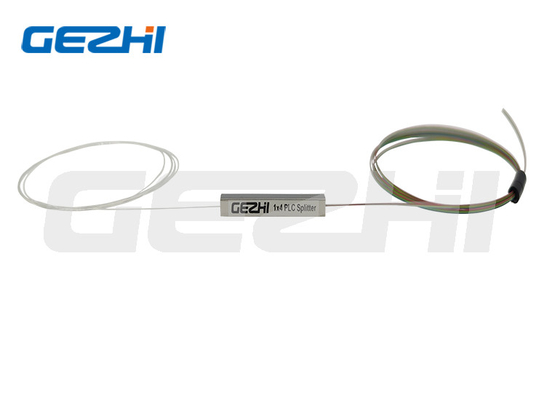

OEM 1x4 PLC Splitter With SC/APC Connectors PLC Fiber Optic Splitter 2

Feature

Low Insertion loss Low PDL

Compact Design Good channel-to-channel uniformity Wide

Operating Wavelength: From 1260nm to 1650nm Wide
Operating Temperature: From -40℃ to 85℃ High Reliability and Stability

PRODUCT SPECIFICATIONS

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	G657 or customized
Insertion Loss (dB)	≤4.1	≤7.4	≤10.5	≤13.8	≤17.1	≤20.4
Loss Uniformity (dB)	≤0.8	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0
Return Loss (dB)	≥50	≥50	≥50	≥50	≥50	≥50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	≥55	≥55	≥55	≥55	≥55	≥55
Temperature Stability (-40~85 ℃)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85
Typies	12,14,18,116,132,164(with/without connectors) 22,24,28,216,232,264(with/without connectors)
Note: 1. The insertion loss is at least 0.2dB less without connector. 2. The insertion loss for 2×N PLC would increase less than 0.3dB. 3. Insertion loss varies with different connectors:UPC ≥50 dB, APC ≥55 dB

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
