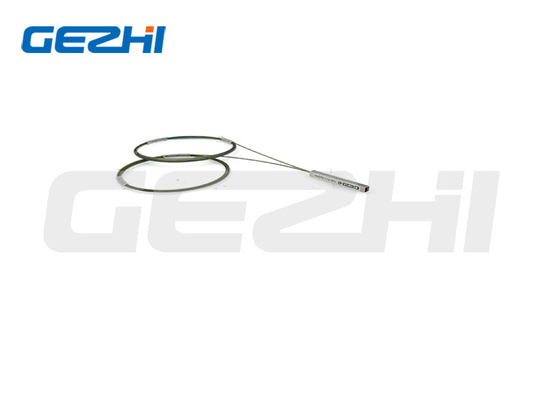

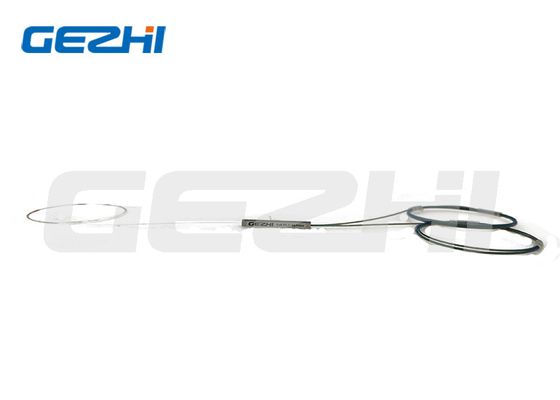

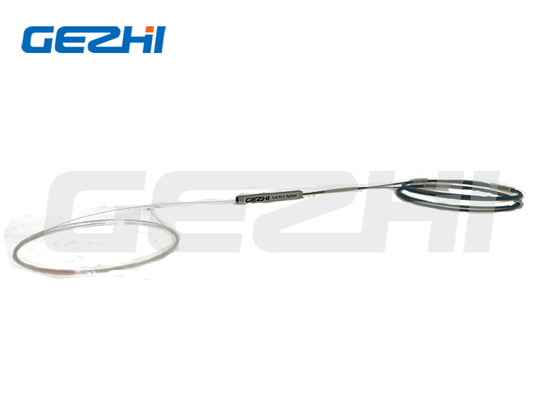

High Reliability and Stability 1X8 Fiber Optic PLC Splitter SC/APC 1X8 GEPON PLC Splitter

Name: High Reliability and Stability 1X8 Fiber Optic PLC Splitter SC/APC 1X8 GEPON PLC Splitter
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: PLC-1X8-AA
Price: Negotiable USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	PLC-1X8-AA
MOQ:	1 pieces
Price:	USD >= 1 pieces $2.5
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Network:

TCP, Ip, POE, GPRS, Wifi

Port:

1x8

Wavelength:

1260-1650nm

Fiber Collector:

SC/APC, SC/UPC, FC/APC, Etc.

Application:

GEPON

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

High Stability Fiber Optic PLC Splitter

1X8 GEPON PLC Splitter

1X8 Fiber Optic PLC Splitter

Product Description

Product descriptiion

High Reliability and Stability 1X8 Fibra Optica PLC Splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Gezhi Photonics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

High Reliability and Stability 1X8 Fiber Optic PLC Splitter SC/APC 1X8 GEPON PLC Splitter 0

Features

♦ Good channel-to-channel uniformity

♦ Wide Operating Wavelength: From 1260nm to 1650nm

♦ Wide Operating Temperature: From -40℃ to 85℃

♦ High Reliability and Stability

Compliance

♦ Telcordia GR-1209-CORE-2001

♦ Telcordia GR-1221-CORE-1999

♦ RoHS

Technical Paremeter

Parameter		1xN PLC Splitter Specification
Operating Wavelength (nm)		1260 ~ 1650
Type		1x2	1x4	1x8	1x16	1x32	1x64
Insertion Loss (dB)	Typical	3.6	6.8	10.0	13.0	16.0	19.5
Insertion Loss (dB)	Max	3.8	7.1	10.3	13.5	16.5	20.5
Uniformity (dB)	Typical	0.4	0.5	0.5	1.0	1.0	2.5
Uniformity (dB)	Max	0.6	0.6	0.8	1.2	1.5	2.5
PDL(dB)Max	Typical	0.1	0.1	0.1	0.2	0.2	0.2
PDL(dB)Max	Max	0.15	0.15	0.25	0.3	0.3	0.3
Wavelength department loss(dB)	Typical	0.1	0.1	0.1	0.3	0.4	0.7
Wavelength department loss(dB)	Max	0.2	0.3	0.4	0.6	0.8	1.0
Temperature department loss	Typical	0.3	0.3	0.3	0.4	0.4	0.4
Temperature department loss	Max	0.5	0.5	0.5	0.5	0.5	0.5
Directivity (dB) Min		55
Return Loss (dB) Min		55(50)
Operating Temperature (°C)		-40~ +85
Storage Temperature (°C)		-40 ~ +85
Fiber length		1m or Customized
Fiber Type		G657A
Connector Type		Customized
PLC Splitter Bare Fiber (mm)		4x4x40	4x4x40	4x4x40	4x7x50	4x7x50	4x12x60
PLC Splitter Blockless (mm)		4x4x40	4x7x60	4x7x60	4x12x60	6x20x80	6x40x100
PLC Splitter Module (mm)		100x80x10	100x80x10	100x80x10	120x80x18	120x80x18	141x115x18
PLC-splitter-rack-mountable(mm)		19’1U 2U Rack-Mount Box, LGX Box, ODF Box

Ordering information

XXX

Port

Configrition

Module type

Cable type

Fiber length

Input connector

Output

connector

G=Gezhi

P=PLC

102=1x2

104=1x4

108=1x8

116=1x16

132=1x32

164=1x64

204=2x4

208=2x8

216=2x16

232=2x32

264=2x64

BF=Bare Fiber

BL=Blockless

MO=Module

LG=LGX Box

RM=Rack Mount

CB=Cassette Box

XX=Customized

00=none

09=900um

Loose tube

20=2.0mm

30=3.0mm

05=0.5m

10=1.0m

15=1.5m

30=3.0m

40=4.0m

50=5.0m

......

0=none

1=LC/UPC

2=LC/APC

3=SC/UPC

4=SC/APC

5=FC/UPC

6=FC/APC

7=LC/APC

X=Customized

0=none

1=LC/UPC

2=LC/APC

3=SC/UPC

4=SC/APC

5=FC/UPC

6=FC/APC

7=LC/APC

X=Customized

Shipping

High Reliability and Stability 1X8 Fiber Optic PLC Splitter SC/APC 1X8 GEPON PLC Splitter 3

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
