3-Port C+L Micro-Optic Component Optical Isolators L FC/PC Single Mode Fiber Optic Circulators

Name: 3-Port C+L Micro-Optic Component Optical Isolators L FC/PC Single Mode Fiber Optic Circulators
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 3 port optical circulator AA
Price: Negotiable USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	3 port optical circulator AA
MOQ:	1 pieces
Price:	USD >= 1 pieces $46
Delivery Time:	7 Days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Channel Min Isolation(dB):

>40

Return Loss (dB):

>50

Operating Temperature (°C):

0 ~ +70

Storage Temperature (°C):

-40 ~ +85

Application:

CATV System

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

3-port c+l Optical Isolators

Single Mode Fiber Optic Circulators

Product Description

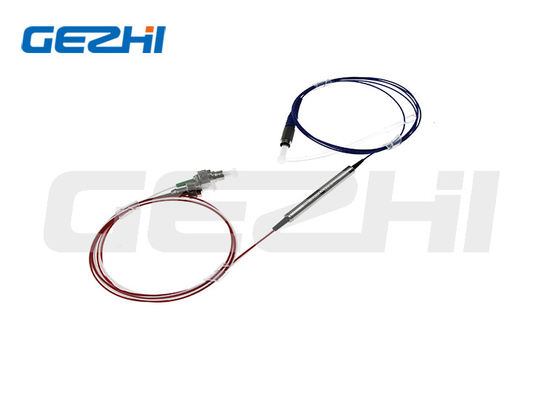

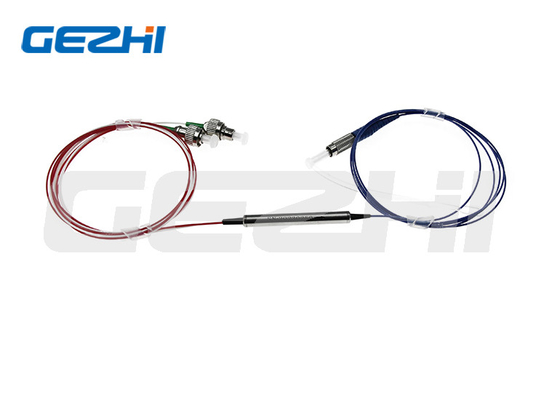

3 port C+L Band Polarization Insensitive Optical Circulator

GEZHI’s polarization insensitive optical circulator utilizes proprietary designs and metal bonding micro optics packaging. It provides low insertion loss, broad band high isolation, low PDL, excellent temperature stability and optical path epoxy free. It can be used for wavelength add/drop, dispersion compensation and EDFA application.

Feature

♦ Low Insertion Loss

♦ Wide Band High Isolation

♦ Low PDL

♦ Compact In-Line Package

♦ High Stability and Reliability

♦ Epoxy-free on Optical Path

Application

♦ Optical Amplifier

♦ Metro Area Network

♦ Wavelength Add/Drop

♦ Dispersion Compensation

♦ Bi-Direcation Communication

3-Port C+L Micro-Optic Component Optical Isolators L FC/PC Single Mode Fiber Optic Circulators 0

Technical Paremeter

Parameter		P Grade
Configuration		Port 1 to Port 2 to Port 3
Operation Wavelength (nm)		1525 to 1610
Isolation (dB)	Typical	0.8
	Maximum	1.0
Typical Isolation (dB)		50
Minimum Isolation (dB)		35
Cross Talk (dB)		≥50
Polarization Dependent Loss (dB)		<0.2
Polarization Mode Dispersion		<0.1
Return Loss(dB)		≥50
Power Handling (mW)		500
Opterating Temperature (℃)		-5~+75
Storage Temperature (℃)		-40~+85
Package dimension (mm)		Φ5.5xL50 orΦ5.5xL63

Ordering Information

Port

Wavlength

Grade

Fiber Type

Fiber Length

In/Out Connector

3=3 Port

CL=C+L Band 1525~1610nm

P=P Grade

1=Bare fiber

2=900um

loose tube

1=1m

2=2m

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC

S=Specify

Application Diagram

As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.

Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.

Fiber Optical Circulator Passive Components 3 Ports 1310nm or 1550nm

As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.

Circulator can be used to send optical signals through a single fiber in two directions.

Fiber Optical Circulator Passive Components 3 Ports 1310nm or 1550nm

Dimension

Fiber Optical Circulator Passive Components 3 Ports 1310nm or 1550nm

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time?
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.

Tags:

1x8 Coarse WDM

Bidirectional CWDM

1x3 Passive CWDM

Splitting Ratio Fiber Optic 1x2 FBT Coupler Splitter fiber optic splitter OPTICO 1X2 Single-mode FBT Coupler

Get Best Price

1×16 Sc/Upc Optical Fiber Plc Splitter - Steel Tube type with SC/APC Connector

Get Best Price

Cassette Type Plastic Insertion Module 164 PLC Splitter 130101*206mm

Get Best Price

G657A1 Fiber PLC Splitter 1*4 Bare Fiber Optic Splitter for Wavelength 1260-1650nm

Get Best Price

1x16 PLC Fiber Splitter with SC/APC Connectors and Optical Signal Distribution

Get Best Price

Fiber Optic 1x4/1x8 Mini PLC Splitter G657A Fiber Type 3.8-24.5 dB Insertion Loss Guaranteed

Get Best Price

1x2 PLC SC/APC Fiber Optic Splitter FTTH SM 0.9mm G657A1 1m Optical Fiber PLC Splitter

Get Best Price

1x4 Single Mode Optical Fiber PLC Splitter With Fan Out & SC/APC Connectors

Get Best Price
