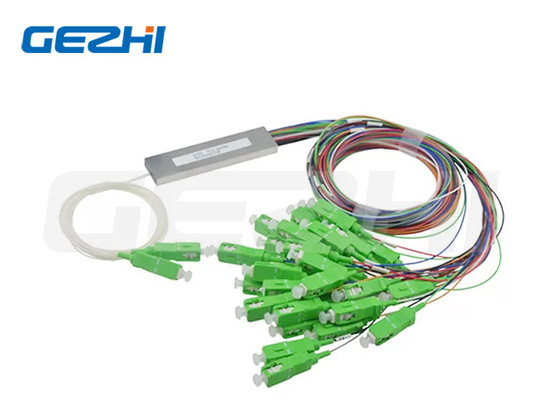

Mini Coupler 2 X 8 SC / APC Fiber Optic Cable Splitter WDM 1.5M For FTTH Box
Splitter PLC have two kinds of package: mini steel tube and ABS box. It is according to your requirements .differrent fiber count, the size of the mini steel tube is different .
1x2/4/8 splitter tube size is 60*7*4mm .
1x16 splitter tube size : 60*12*4mm
1x32 splitter tube size :80*20*6mm
1x64 splitter tube size : 100*40*6mm
Product Description
1.passive optical splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
2.we provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Application
1.FTTX Systems
2.PON Networks
3.CATV Links
4.Optical Signal Distribution
Feature
1.Low Insertion loss
2.Low PDL
3.Compact Design
4.Good channel-to-channel uniformity
5.Wide Operating Wavelength:From 1260nm to 1650nm
6.Wide Operating Temperature: From -40°C to 85°C
7.High Reliability and Stability
Compliance
1.Telcordia GR-1209-CORE
2.Telcordia GR-1221-CORE
3.RoHS
Data sheet
| Port Configration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | |
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
| Insertion Loss (dB) | Typical | 3.8 | 7.2 | 10.6 | 14 | 16.8 | 20.8 |
| Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.9 | 21.5 | |
| Channel Uniformity (dB) | 1 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 | |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 | |
| WDL (dB) | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1 | |
| TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | |
| Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 80(L)X12(W)X4(H) | 80(L)X20(W)X6(H) | ||||
| RL (dB) | > 50dB | ||||||
| Directivity (dB) | > 55dB | ||||||
| Fiber Type | G652D | ||||||
| Operating Temperature Range | -40ºC ~ 85ºC | ||||||
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : 1x2/4/6/8/16/32/64 2x2/4/8/16/32/64
6. Cable type : G652D / G657A1 / G657A2
7. input and out put length : 1 / 1.5meters (according to your requirement )
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
|
|
