| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-PLC Splitter |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

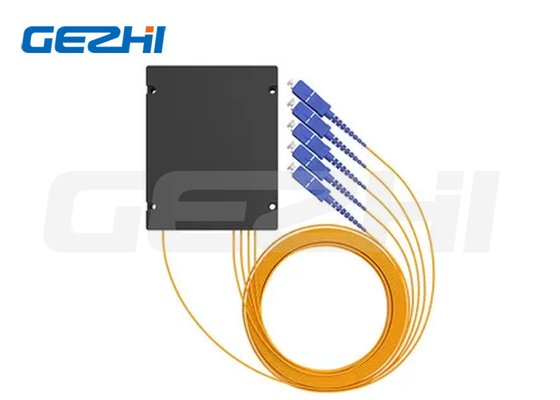

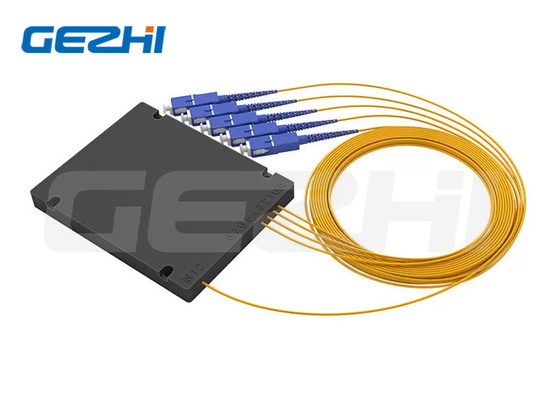

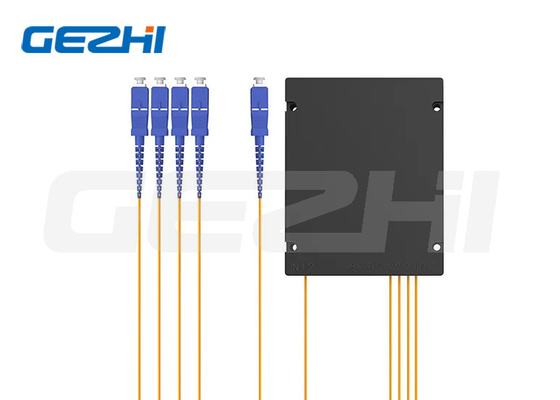

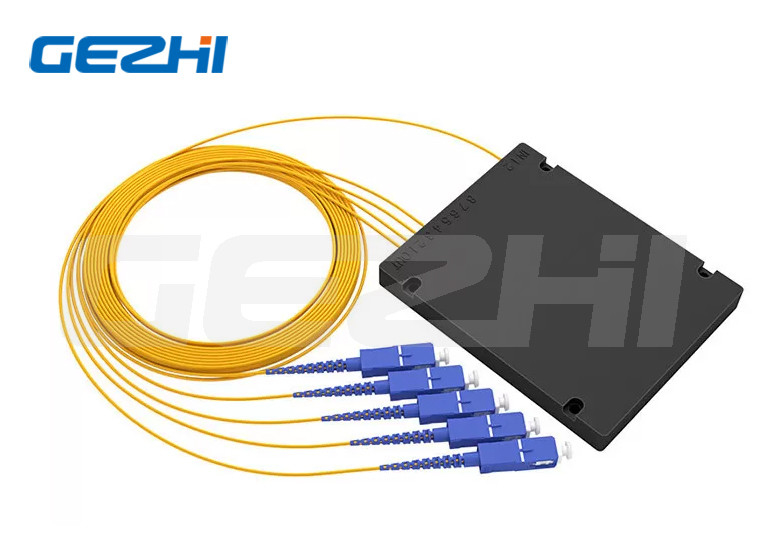

Digital Splitter For Fiber Optic Cable, Fiber PLC Splitter Customized
Fiber Optic Splitter Description
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
PLC optical splitter is mainly used for optical signal coupling and distribution in passive optical network (PON) systems. It has the advantages of insensitivity to wavelength, high stability and uniform splitting.
Fiber Optic Splitter Application
1. FTTX Systems
2. LAN, WAN and Metro Networks
3. Analog/Digital Passive Optical Networks CATV Networks
4. Other applications in fiber optic systems
Fiber Optic Splitter Feature
●Low insertion loss and low PDL
●High channel counts
●Exceptional reliability and stability
●Wide Operating Wavelength
●Wide Operating Temperature
●Compact design
Fiber Optic Splitter Specifications
| Item | Unit | PLC optical splitter ABS box type | |||||||
| Operating Wavelength | nm | 1260~1650 | |||||||
| Fiber Type | / | G652D/G657A1/G657A2 | |||||||
| Tube Type | um | 250um Fiber, 600um or 900um loose tube | |||||||
| Channel Type | / | 1x4 1x8 1x16 1x32 1x64 1x128 | |||||||
| Insertion Loss | dB | ≤7.2 ≤10.5 ≤13.7 ≤17.0 ≤20.6 ≤24.5 | |||||||
| Uniformity | dB | ≤0.6 ≤0.8 ≤1.2 ≤1.5 ≤2.0 ≤2.5 | |||||||
| PDL | dB | ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.35 ≤0.35 | |||||||
| TDL | dB | ≤0.5 | |||||||
| Return Loss | dB | ≥55 | |||||||
| Directionality | dB | ≥55 | |||||||
| Working Power | mW | ≤500 | |||||||
| Operating temperature | ℃ | -40~+85 | |||||||
| Storage temperature | ℃ | -40~+85 | |||||||
| Package size | mm | 100x80x10 | 120x80x18 | 140x115x18 | |||||
* without connector
|
|
