Created with Pixso. Ftth 1x8 Plc Splitter / Coupler Low Return Loss

Ftth 1x8 Plc Splitter / Coupler Low Return Loss

Brand Name: GEZHI or OEM
Model Number: 1x8- Circulator
MOQ: 1pc
Price: Negotiable
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Return Loss:
≥45dB
Wavelengths:
1310±30 Or 1550±30 Or 1585±30
Power Handling:
SMF-28e Or Customized
Opterating Temperature:
-10~+75
Use:
FTTH
Optical Connector::
C/APC&FC/APC&SC/PC
Output Level:
>80dBuV
Warranty Time:
13 Months, One Year
Packaging Details:
2pcs in a foam with plastic Box
Supply Ability:
50000pcs per month
Highlight:

ftth 1x8 plc splitter

,

low return loss 1x8 plc splitter

,

ftth plc splitter 1x8

Product Description



Micro Fiber Optic Splitter 1x8 Sc Upc Apc Fiber Optic Plc Splitter / Couple



Features

Low Insertion Loss
Low PDL
High Uniformity
Good Environmental Stability

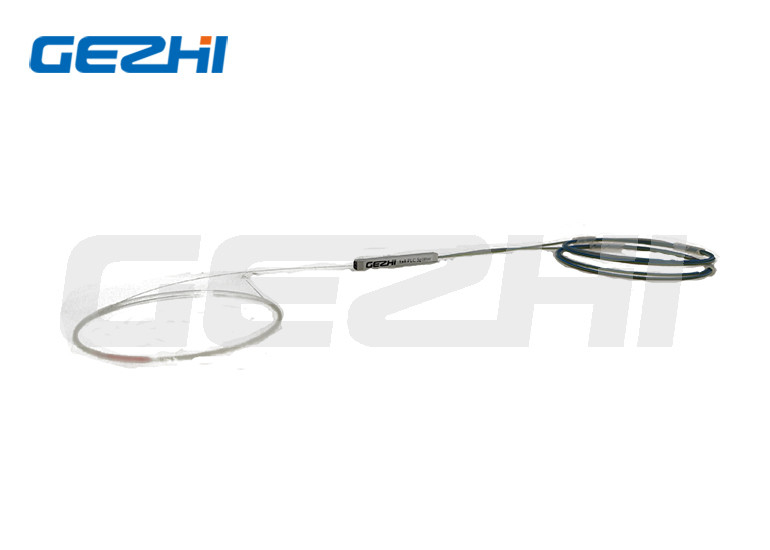

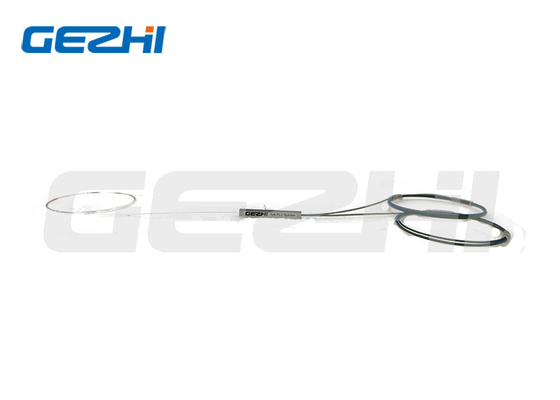

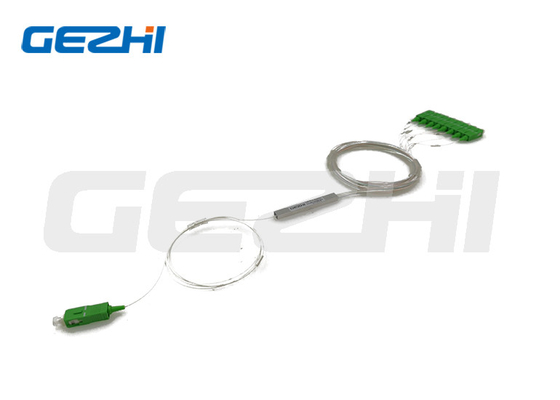

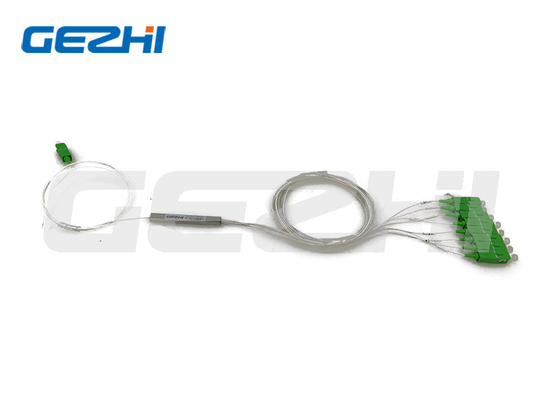

Ftth 1x8 Plc Splitter / Coupler Low Return Loss 0Ftth 1x8 Plc Splitter / Coupler Low Return Loss 1Ftth 1x8 Plc Splitter / Coupler Low Return Loss 2Ftth 1x8 Plc Splitter / Coupler Low Return Loss 3






Applications

FTTH, PON, CATV, LAN
Local Ring Network
Optical Sensors System
Optical Test Instrument
Optical Communications System



Technical Specification

parameter
Index
Center Wavelength(nm)
1260~1650
Structure Type
1×4
1×8
1×16
1×32
2×4
2×8
2×16
2×32
Maximum Insertion Loss(dB)
7.4
10.7
13.7
16.9
7.6
11.2
14.5
18.2
Uniformity(dB)
0.6
0.8
1.2
1.7
1.0
1.5
2.0
2.5
PDL(dB)
≤0.20
≤0.30
≤0.30
≤0.30
≤0.30
≤0.30
≤0.40
≤0.40
Minimum Directivity (dB)
≥55
Return Loss(dB)
≥50
Operation Temperature(℃)
-40~+75
Storage Temperature(℃)
-40~+85
Package Dimension
Specified
Industry Standard
Telcordia GR-1221-CORE
Type of Package Dimension(mm)
1,40×4×4 2,50×7×4 3,100×80×9
4,120×80×18 5,140×115×18

Company Profile

Corephy Optics Co., Ltd. is a high-tech enterprise dedicated to R&D and manufacturing of optical fiber communication products. Corephy mainly serves the fields of telecommunications optical transmission network, optical access network, enterprise network, storage area network, data center and cloud computing system, and is a professional manufacturer of passive optical network devices.

Corephy has dedicated and excellent employees and strong R&D capabilities, able to respond quickly and effectively meet customer needs, provide innovative and customized products and services to customers around the world, and enhance customers' continuous competitiveness and profitability. Build a harmonious business environment and share the benefits of the value chain.

Corephy is market-oriented, research and development is the core, long-term investment in research and development, committed to technological innovation, and maintain the leading position in the industry. With excellent quality and professional services, Corephy Optical products have established long-term and stable cooperative relations with many well-known communication network equipment manufacturers at home and abroad. The company will continue to uphold technology and cost innovation and become a globally respected one-stop manufacturer of optical fiber communication products.

Ftth 1x8 Plc Splitter / Coupler Low Return Loss 4

Ftth 1x8 Plc Splitter / Coupler Low Return Loss 5

Certificates



                 Ftth 1x8 Plc Splitter / Coupler Low Return Loss 6

Manufacturing Shop

Ftth 1x8 Plc Splitter / Coupler Low Return Loss 7

AFQ

Q:Are you trading company or manufacturer?

A:We are manufacturer
Q: Can you do OEM?

A: Yes

Q: Can i get a sample?
A: Yes, pls let us know what you need.
Q: Sample time?
A: About within 5 working days.
Q: How to guarantee the quality of your products?
A: 1) strict material control and detection during producdtion. 2) all goods will be inspected for quality and packaging before shipment .
