| Brand Name: | GEZHI or OEM |
| Model Number: | 64 Channels DWDM Mux Demux |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

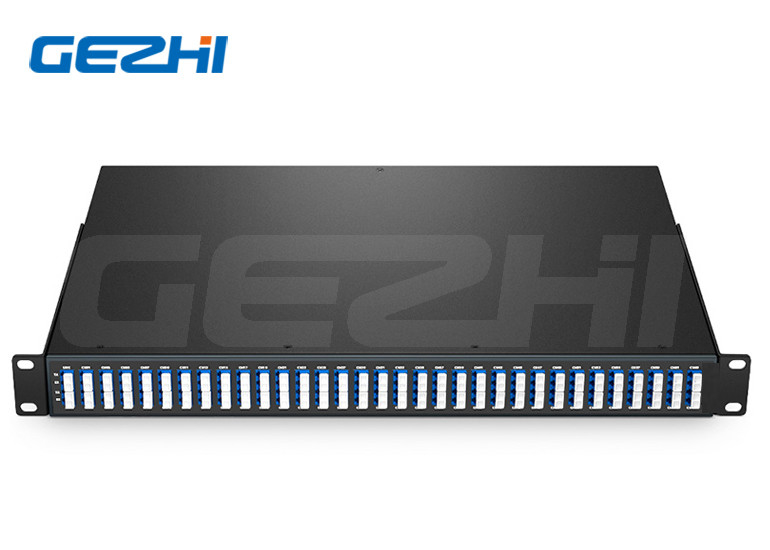

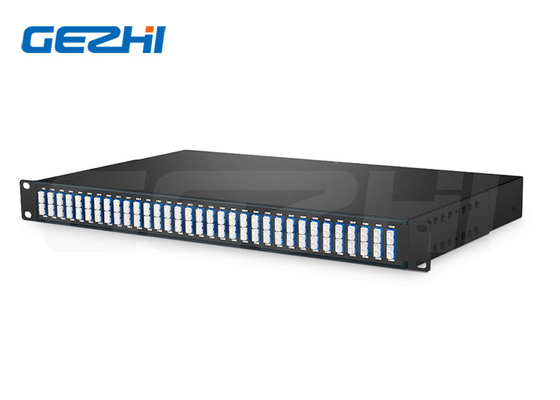

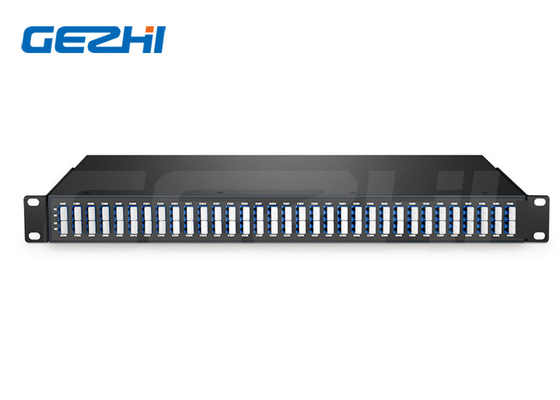

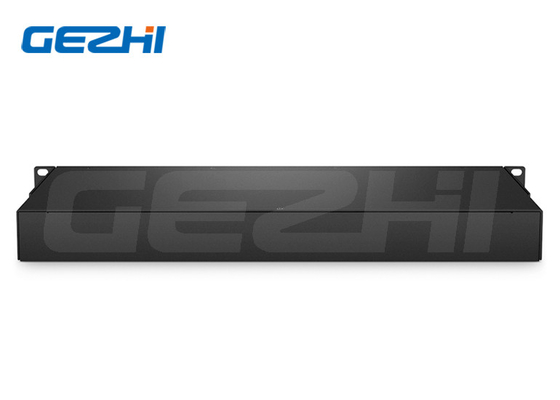

64 Channels DWDM Mux Demux, Super C-band 75GHz 1528.87-1566.62nm,5.8dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount
Product Highlights
Specifications
The 60CH Mux Demux is a low loss,suitable,and high-density for long-haul transmission passive DWDM device based on AAWG (Flat-top). This unit can be used as either a multiplexer or de-multiplexer (mux/demux).
In conjunction with the Gezhi Photonics transponders and amplifiers, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.In accordance with the ITU-T, it maximizes the capacity of the super C-band range.
Connectivity Solutions
Features
1.Maximize Your Fiber with WDM Network
A single fiber can be shared for multiple different data or services in WDM network. It maximizes the usefulness of fiber and generates substantial savings.
2.Data Center Interconnect for DWDM Network
Gezhi Photonics Mux Demux interconnect seamlessly with transponder, muxponder, amplifier, and third-party WDM products, to form cost-effective high-capacity DWDM tailored solutions.
3.Hybrid CWDM-DWDM System for Network Expansion
By using the 1530nm and 1550nm CWDM channels, it becomes possible to transmit multiple DWDM channels within a single CWDM channel, providing a solution that is both cost-effective and easily expandable.
Specifications
| Wavelength | 64 Channels 191.3625-196.0875THz (1528.87-1566.62nm) | Channel Spacing | 75GHz |
| Channel Passband | ±31.5GHz | Insertion Loss | ≤6.5dB, 5.8dB Typical |
| Insertion Loss @ 1% Mon TX | ≤27dB | Insertion Loss @ 1% Mon RX | ≤22dB |
| Wavelength Accuracy | ±50pm | Technology | AAWG (Flat-top) |
| Adjacent Channel Isolation | ≥8dB | Non-adjacent Channel Isolation | ≥30dB |
| Return Loss | ≥40dB | Directivity | ≥40dB |
| Polarization Dependent Loss | ≤0.5dB | Polarization Mode Dispersion | ≤1.0ps |
| Operating Temperature | -5 to 65℃ (23 to 149°F) | Storage Temperature | -40 to 85℃ (-40 to 185°F) |
| Net Weight | 4.185kg | Dimensions (HxWxD) | 1.73"x19"x10.4" (44x481.8x264.1mm) |
FAQ
Q1: What's the Lead time?
A1: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q2:Can I have a sample order? What is your MOQ ?
A2:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q3: What is your warranty time?
A3: 3 years' warranty.
Q4: What are the payment terms?
A4: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
Video
|
|
