| Brand Name: | GEZHI or OEM |
| Model Number: | ObandDWDM |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

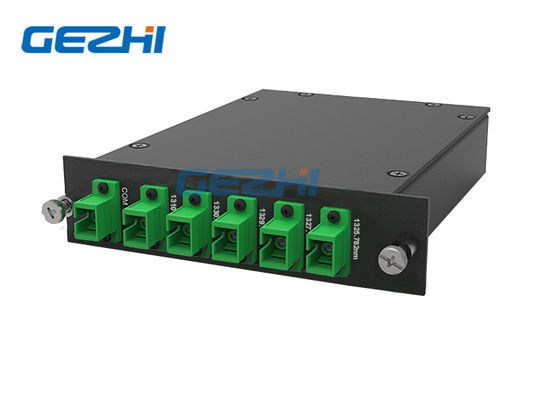

O-Band 200 Ghz DWDM Module 4 Channel Dense WDM Mux and DeMux
GEZHI supply high performance 200GHz Dense Wave Division Multiplexer (DWDM) in O-Band wavelengths
designed for Hybrid Fiber-Coaxial (HFC) network applications. The O-Band 200 Ghz DWDM Module with feature 4 channels, a common input port, and a 1310 upgrade port to allow for future expansion. Options include a single fiber multiplexer or demultiplexer and a dual fiber version that can be either a combination multiplexer and demultiplexer or dual multiplexers or dual demultiplexers. The standard package is the single width LGX module or an ABS flat field module.
|
Features |
Applications |
|
|
Specification
| Parameter | Unit | Values |
| Wavelength Range | nm | 1260~1495 |
| Center Wavelength | nm | 1325.782 (226.125 THz) |
| 1327.249 (225.875 THz) | ||
| 1329.220 (225.540 THz) | ||
| 1330.459 (225.330 THz) | ||
| 1310 Upgrade | ||
| Channel Passband Width | nm | 0.4 |
| Pass Channel Insertion Loss | dB | ≤2.0 |
| Adjacent Channel Isolation | dB | 25 |
| Non-adjacent Channel Isolation | dB | 40 |
| Polarization Mode Dispersion | ps | 0.15 |
| Directivity | dB | 50 |
| Return Loss | dB | ≤45 |
| Power Handling | mW | 300 |
| Operating Temperature | ℃ | -5 to +65 |
| Storage Temperature | ℃ | -40 to +85 |
Ordering Information
O-Band 200 GHz Dense WDM Mux and Demux (Four channel)
| ITEM | Line Type | Pacakge | Fiber Length of ABS box | Connector |
| O-Band DWDM |
MD=Mux+Demux pair M=Mux D=Demux |
A=ABS box L=LGX cassette R=19" 1U Rackmount S=Specify |
1=1meter 2=2merter S=Specify |
00=None LP=LC/PC LA=LC/APC SP=SC/PC SA=SC/APC FP=FC/PC FA=FC/APC S=Specify |
High Quality TFF Technology
Adopting high quality TFF technology, this O-Band 200Ghz DWDM Module provides low insertion loss and High Isolation.
Customizable
The LGX module type has a variety of package sizes and wavelength options. It can also be customized according to customer requirements, such as mini size, one-way or two-way, upgrade port, etc.
O-Band 200 Ghz DWDM Module 4 Channel Dense WDM Mux and DeMux
Single Fiber Solution
Dual Fiber Solution
Video
|
|
