| Brand Name: | GEZHI or OEM |
| Model Number: | 60 Channels DWDM Mux Demux |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

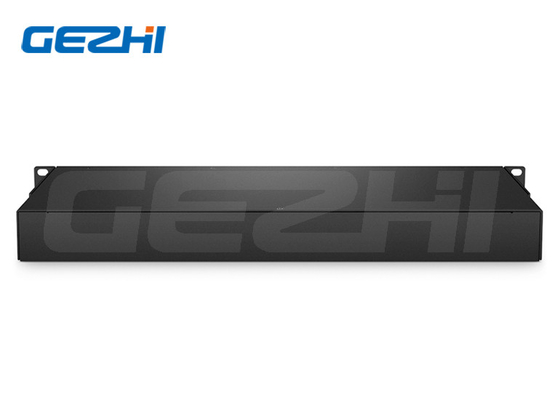

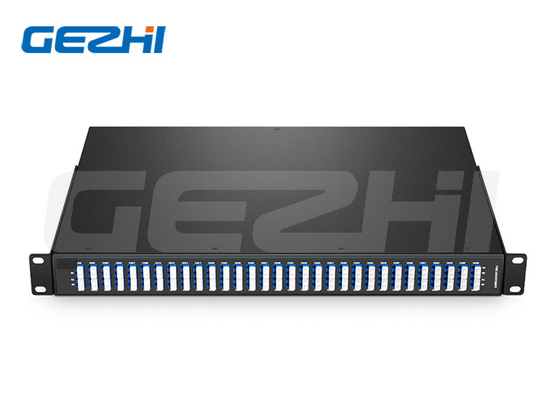

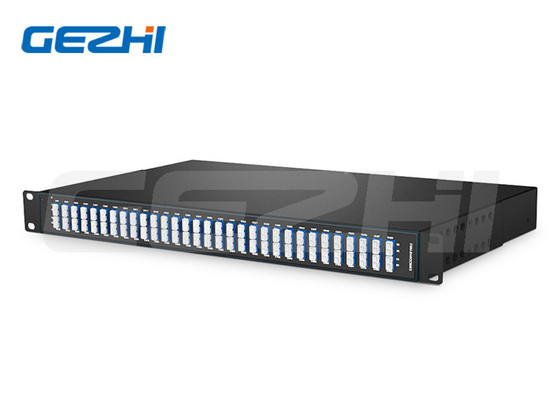

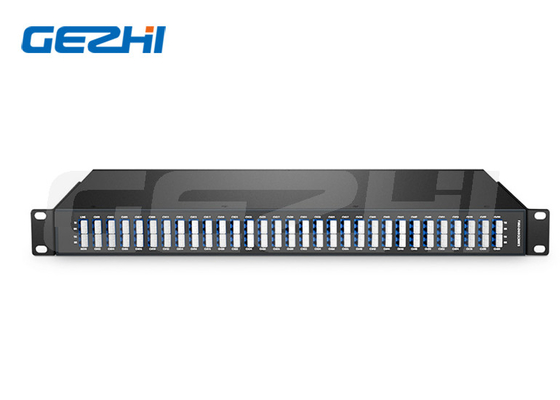

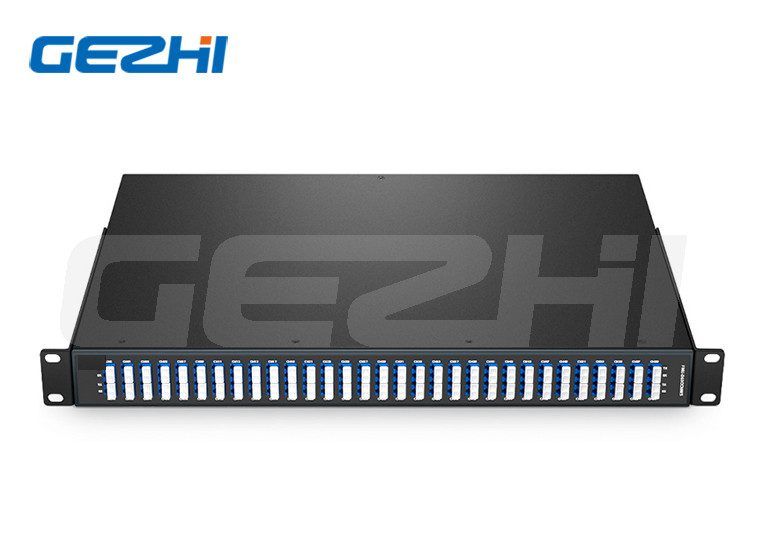

60 Channels DWDM Mux Demux, Super C-band 100GHz 1524.50-1571.65nm,6.0dB Typical IL, LC/UPC, Dual Fiber, 1U Rack Mount
Specifications
The 60CH Mux Demux is a high-density, low loss, and suitable for long-haul transmission passive DWDM device based on AAWG (Flat-top). This unit can be used as either a multiplexer or de-multiplexer (mux/demux). In accordance with the ITU-T, it maximizes the capacity of the super C-band range.
In conjunction with the Gezhi Photonics transponders and amplifiers, etc., this Mux Demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.
Features
1.Diversified Ports for 60 Channels DWDM Mux Demux
The CH1-CH60 channel port for ITU grid DWDM traffic, MON port for optical performance monitoring.
2.Super C-band Improves System Transmission Capacity and Distance
Super C-band can transmit 120 wavelengths at a 50GHz channel spacing and transmit 80 wavelengths at a 75GHz channel spacing, greatly expanding the effective working spectrum.
3.Maximize Your Fiber with WDM Network
A single fiber can be shared for multiple different data or services in WDM network. It maximizes the usefulness of fiber and generates substantial savings.
4.Mix of Services Multiplexing at Any Rate
Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN, OTN, SDH/SONET and native video services, it's transparent to any rate, any service multiplexing and upgrade.
5.Monitor Port for Your Diversified Monitoring Needs
Usually, at a split of 1% (2%, 3%, 5% optional), the monitor port offers flexible monitoring ways to test the power, wavelength and OSNR of the optical signal without service interruption.
6.Hybrid CWDM-DWDM System for Network Expansion
By using the 1530nm and 1550nm CWDM channels, it becomes possible to transmit multiple DWDM channels within a single CWDM channel, providing a solution that is both cost-effective and easily expandable.
7.Data Center Interconnect for DWDM Network
Gezhi Photonics Mux Demux interconnect seamlessly with transponder, muxponder, amplifier, and third-party WDM products, to form cost-effective high-capacity DWDM tailored solutions.
Specifications
| Wavelength | 60 Odd Channels 190.75-196.65THz (1524.50-1571.65nm) | Channel Spacing | 100GHz |
| Channel Passband | ±12.5GHz | Insertion Loss | ≤6.7dB, 6.0dB Typical |
| Insertion Loss @ 1% Mon TX | ≤27dB | Insertion Loss @ 1% Mon RX | ≤22dB |
| Wavelength Accuracy | ±50pm | Technology | AAWG (Flat-top) |
| Adjacent Channel Isolation | ≥25dB | Non-adjacent Channel Isolation | ≥30dB |
| Return Loss | ≥40dB | Directivity | ≥40dB |
| Polarization Dependent Loss | ≤0.5dB | Polarization Mode Dispersion | ≤1.0ps |
| Operating Temperature | -5 to 65℃ (23 to 149°F) | Storage Temperature | -40 to 85℃ (-40 to 185°F) |
| Net Weight | 4.185kg | Dimensions (HxWxD) | 1.73"x19"x10.4" (44x481.8x264.1mm) |
FAQ
Q1:Can I have a sample order? What is your MOQ ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
Video
|
|
