| Brand Name: | GEZHI or OEM |
| Model Number: | Armored Fiber Optic Patch Cable |
| MOQ: | 1pc |
| Price: | Negotiable |

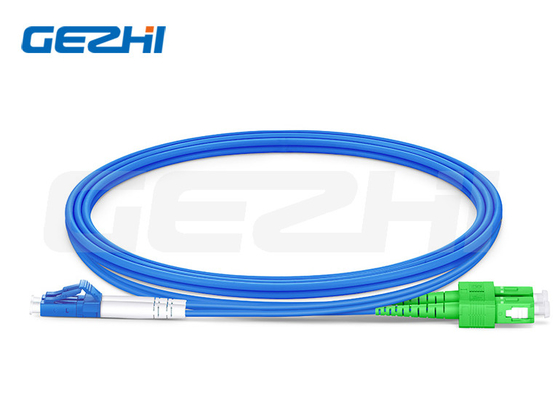

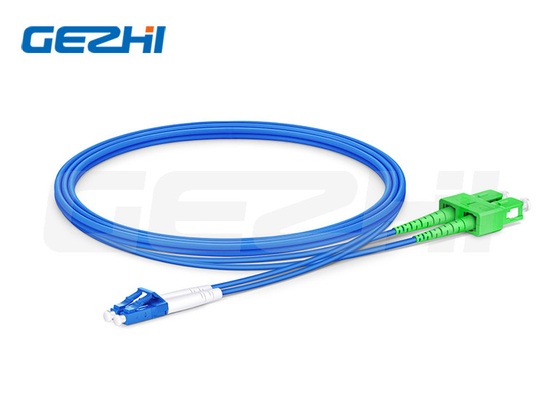

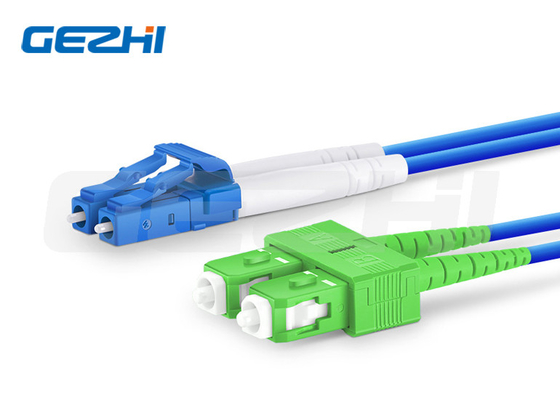

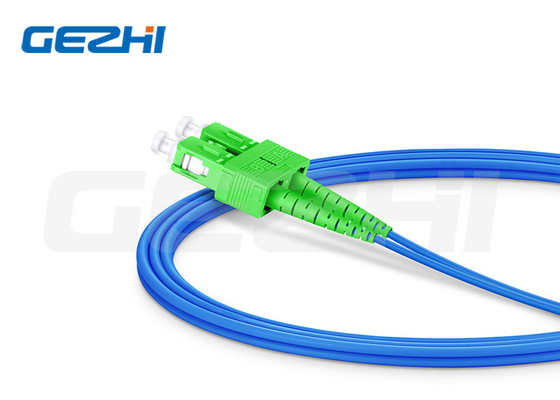

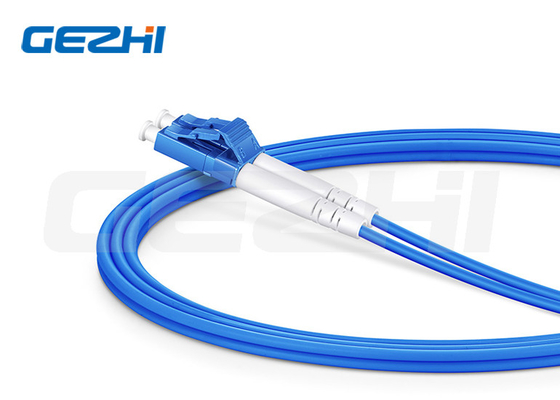

LC UPC to SC APC Duplex OS2 Single Mode Indoor Armored LSZH 3.0mm Fiber Optic Patch Cable
Product Description
OS2 9/125 Single Mode LC/UPC to SC/APC Duplex Indoor Armored Fiber Optic Cable
Armored fiber optic cable with built-in metal armor can provide stronger protection from optical fibers than standard fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents and pests
Specifications
| Connector Type | LC to SC | Polish Type | UPC to APC |
| Fiber Mode | OS2 9/125μm | Fiber Count | Duplex |
| Fiber Grade | G.657.A1 | Min. Bend Radius | 10/5D (Dynamic/Static) |
| Cable Diameter | 3.0mm | Cable Jacket | LSZH |

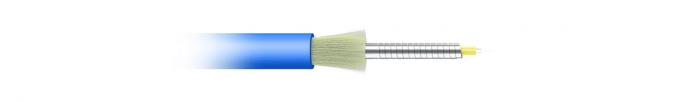

| Fiber Cords Structure | Single Armored, Stainless Steel Tube | Tensile Load | 120/225N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Operating Temperature | -25 to 70°C (-13 to 158℉) | Storage Temperature | -25 to 70°C (-13 to 158℉) |
Features
10/5D Min. Bend Radius
The G.657.A1 fiber allows tighter cable bends for routing.
Zirconia Ceramic Ferrule
The precision ferrules reach up to 500 times insertions lifespan.
120-225N Tensile Strength
The pull-resistant cable prolongs the service life.
|
|
