Product Description:

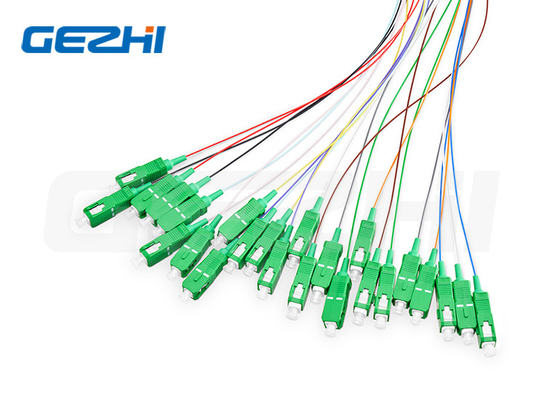

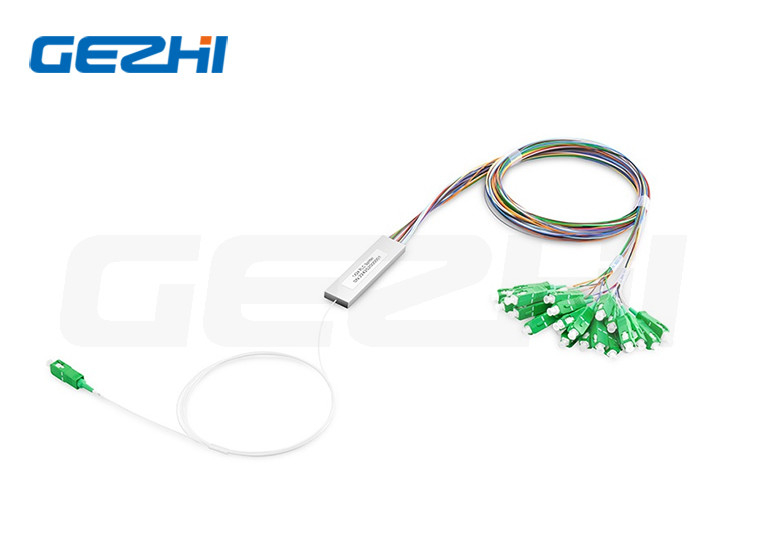

1x24 SC/APC Fiber PLC Splitter Blockless Mini Module Splitter
1x24 PLC Splitter
Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs.Our PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
We provide a various of 1xN and 2xN PLC blockless splitters, including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 blockless fiber type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 blockless fiber type PLC splitters.
Features
◆Good uniformity and low insertion loss
◆Low Polarization Dependent Loss
◆Excellent Mechanical
◆Stability Telecordia GR-1221 and GR-1209
◆Operating environment: -40ºC to +85ºC
◆High Polarization Extinction Ratio & Excellent Uniformity
Applications
◆Fiber to the point (FTTX)
◆Fiber to the home (FTTH)
◆Passive optical networks(PON, GEPON)
◆Local area networks (LAN)
◆Cable television (CATV)
◆Test equipment
Technical Parameters
| Parameter | 1xN PLC Splitter Specification | ||||||
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
| Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| Max | 3.8 | 7.1 | 10.3 | 13.5 | 16.5 | 20.5 | |
| Uniformity (dB) | Typical | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 2.5 |
| Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| PDL(dB)Max | Typical | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 |
| Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | |
|
Wavelength department loss(dB) |
Typical | 0.1 | 0.1 | 0.1 | 0.3 | 0.4 | 0.7 |
| Max | 0.2 | 0.3 | 0.4 | 0.6 | 0.8 | 1.0 | |
|
Temperature department loss |
Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Directivity (dB) Min | 55 | ||||||
| Return Loss (dB) Min | 55(50) | ||||||
| Operating Temperature (°C) | -40~ +85 | ||||||
| Storage Temperature (°C) | -40 ~ +85 | ||||||
| Fiber length | 1m or Customized | ||||||
| Fiber Type | G657A | ||||||
| Connector Type | Customized | ||||||
| PLC Splitter Bare Fiber (mm) | 4x4x40 | 4x4x40 | 4x4x40 | 4x7x50 | 4x7x50 | 4x12x60 | |
| PLC Blcokless (mm) | 4x4x40 | 4x7x60 | 4x7x60 | 4x12x60 | 6x20x80 | 6x40x100 | |
| PLC Splitter Module (mm) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 141x115x18 | |
| PLC-splitter-rack-mountable(mm) | 19’1U 2U Rack-Mount Box, LGX Box, ODF Box | ||||||
High Quality & Stability Material
|
|
|
|
Bend Insensitive Fiber |
Nano-zirconia Ceramic Ferrules |
SC/APC Connectors |
Odering Information
|
FAQ
|
|
