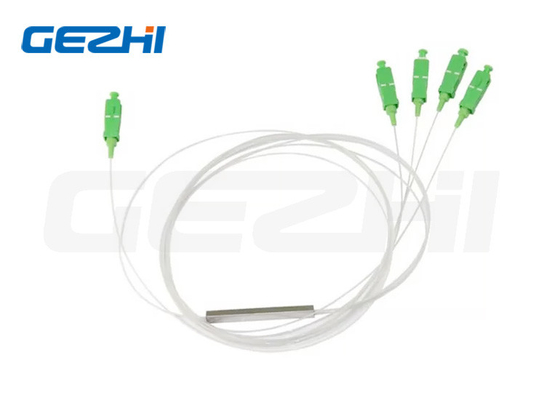

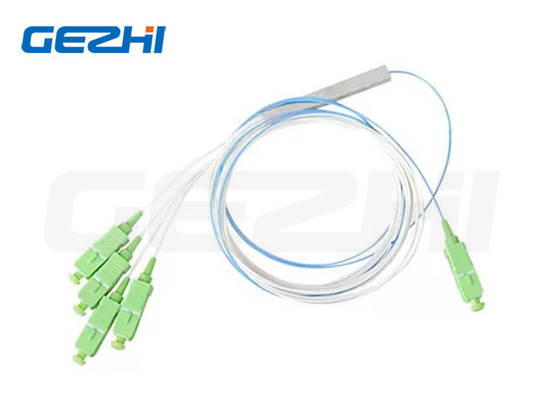

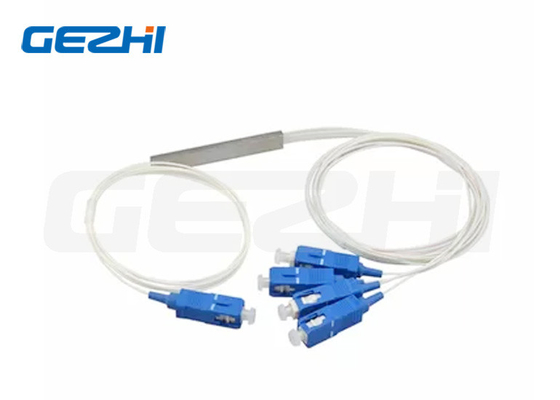

1x4 SC UPC 9/125 Um G657A1 0.9mm White Cable Mini PLC Splitter
Fiber Optic PLC Splitter introduction
The optical splitter can be divided into a molten taper and a flat waveguide according to the principle. Two, molten tapered products are two or more fibers for side fusion, flat waveguide is a micro-optical component type product, using photolithography technology, in the medium or semiconductor substrate to form a light waveguide, to achieve branch distribution function.
The two types of species have similar separation principles, they change the fade field between fibers to couple each other (coupling degree, coupling length) and change the radius of fiber to achieve different sizes of branching, and vice versa can also combine multiple optical signals into one signal called a synthesizer.
Melt-cone fiber coupler has become the mainstream manufacturing technology in the market because of its simple production method, cheap price, and easy connection with external fiber optic, and it can withstand the advantages of mechanical vibration and temperature change.
Fiber Optic PLC Splitter Feature
Broadband Operation Wavelength
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
High Reliability and Stability
Fiber Optic PLC Splitter Application
Telecommunication sector
PON System
FTTH
CATV
Video Transmission
Fiber Optic PLC Splitter Parameter
1×N PLC Splitter
(Measured at room temperature and excludes connector loss)
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | ||
| Fiber Type | ITU-T G657A1 , G657A2 and G.652D | ||||||
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | |
| (P/S) Max | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | ||
| Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | |
| Polarization Dependent Loss (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | |
| Directivity (dB) | Min | 55 | |||||
| Return Loss (dB) | Min | UPC:50 APC:55 | |||||
| Operating Temperature(℃) | -40~85 | ||||||
| Storage Temperature(℃) | -40~85 | ||||||
2×N PLC Splitter
(Measured at room temperature and excludes connector loss)
| Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
| Fiber Type | ITU-T G657A1 , G657A2 and G.652D | ||||||
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 4.0 | 7.0 | 10.5 | 13.5 | 16.5 | 20.5 |
| (P/S) Max | 4.1/4.3 | 7.4/7.6 | 10.8/11.0 | 14.3/14.5 | 17.3/17.5 | 20.7/21.5 | |
| Loss Uniformity (dB) | Max | 0.8 | 0.8 | 1.5 | 2.0 | 2.5 | 2.5 |
| Polarization Dependent Loss (dB) | Max | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Directivity (dB) | Min | 55 | |||||
| Return Loss (dB) | Min | UPC:50 APC:55 | |||||
| Operating Temperature(℃) | -40~85 | ||||||
| Storage Temperature(℃) | -40~85 | ||||||
How to order Fiber Optic PLC Splitter
1. Connector type : SC / FC / LC / ST/ E2000
2. Mode type : single mode UPC and APC
3. Cable diameter : 0.9 / 2.0 / 3.0 mm
4. Packing type : mini steel tupe / ABS box
5. fiber count : 1xN, 2xN(1x2,1x4, 2x2, 2x4,etc)
|
|
