| Brand Name: | GEZHI or OEM |
| Model Number: | Plastic ABS Module 1x64 PLC Fiber Splitter |
| MOQ: | 1pc |
| Price: | Gezhi Photonics Co., Ltd |
| Payment Terms: | T/T, Western Union |

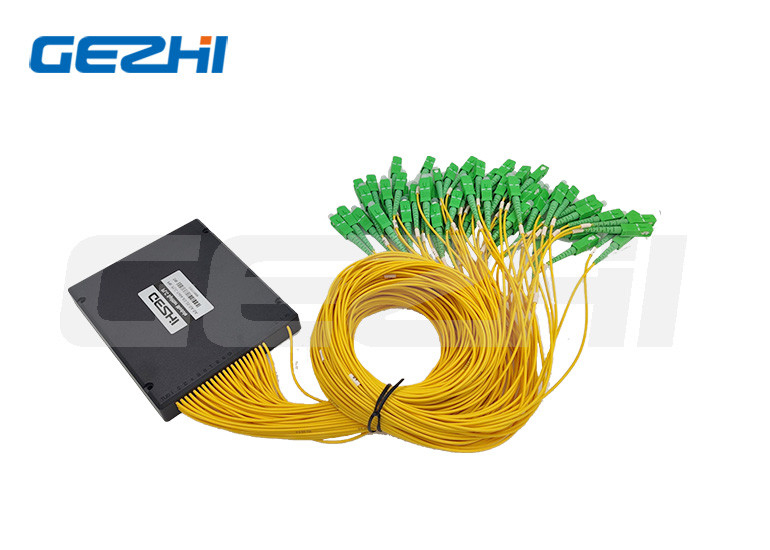

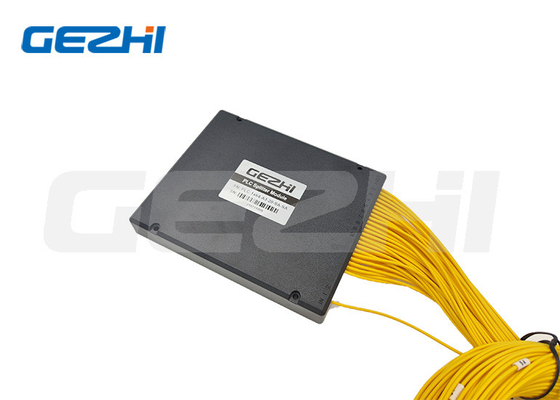

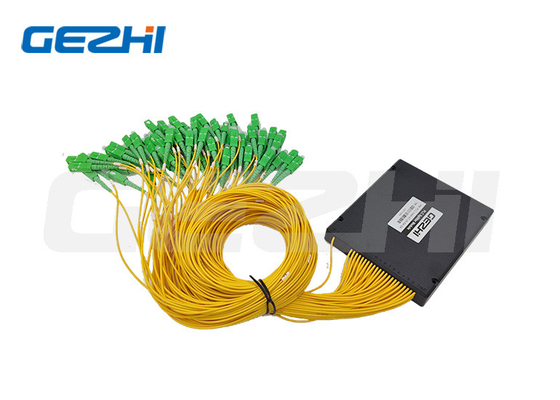

Plastic ABS Module 1x64 PLC Fiber Splitter For FTTX PON Network
Fiber Optic PLC Splitter Description
PLC Splitters are Single mode splitters with an even split ratio from one input fiber to multiple output fibers. The number of available splitting counts are: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 and 1x128, ect.
We offer ABS box PLC Splitters with a wide range of styles and sizes to split or combine light with minimal loss. All splitters are manufactured using a very simple process that produces reliable, low-cost devices. Splitters can be fabricated in custom fiber lengths and with any type of connector.
Fiber optic splitters features high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
Fiber Optic PLC Splitter Feature
● Broadband Operation Wavelength
● Low Insertion loss
● Low PDL
● Compact Design
● Good channel-to-channel uniformity
● High Reliability and Stability
Fiber Optic PLC Splitter Applications
● Telecommunication sector
● PON Syster
● FTTH
● CATV
● Video Transmission
Fiber Optic PLC Splitter Specification
| Item | Parameter | |||||
| Operating Wavelength(nm) | 1260 ~ 1650 | |||||
| Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max.Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min.Return Loss(dB) | 55 | |||||
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min.Return Loss(dB) | 55 | |||||
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1 , G657A2 and G.652D | |||||
| Max.Temperature Stability(dB) | 0.5( Typical 0.3 ) | |||||
| Operating Temperature(℃) | -40 ~ +85 | |||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
All measurement are made at room temperature, and connectors not included
Fiber Optic PLC Splitter Packing Dimension
| Package type | Unit(mm) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Basic Packagin Metel box | L×W×H | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 60*7*4 | 60*12*4 |
| Mini Module Packagin Metel box | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | |
| Module Packagin Plastic box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
| Package type | Unit(mm) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Basic Packagin Metel box | L×W×H | 60*7*4 | 60*7*4 | 60*7*4 | 60*7*4 | 80*20*6 | 80*20*6 |
| Mini Module Packagin Metel box | 60*7*4 | 60*7*4 | 60*7*4 | 80*12*4 | 80*20*6 | 100*40*6 | |
| Module Packagin Plastic box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
Gezhi Photonics Services
Order inquiry: Keep mobile phone opened 24 hours to gurantee the first reply to clients, 10 years of sales experience in optical fiber products can provide you with professional guidance, help you save cost.
Order production: Follow up the production schedule closely to ensure timely delivery.
Before shipment: Our QC would double check the order quantity,package and strength of cartons to avoid lost and damage
After shipment: Keep tracking shipping status and reporting to clients
Shipping Method: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR etc.
|
|
