Product Overview

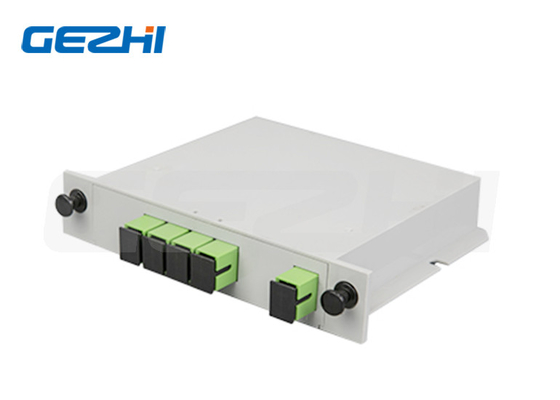

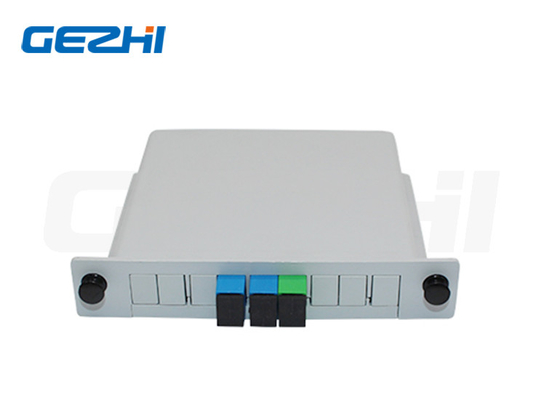

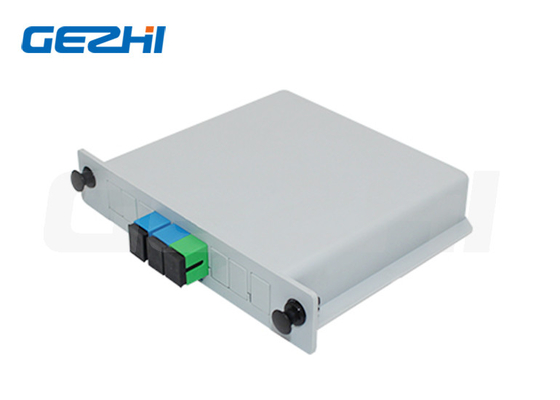

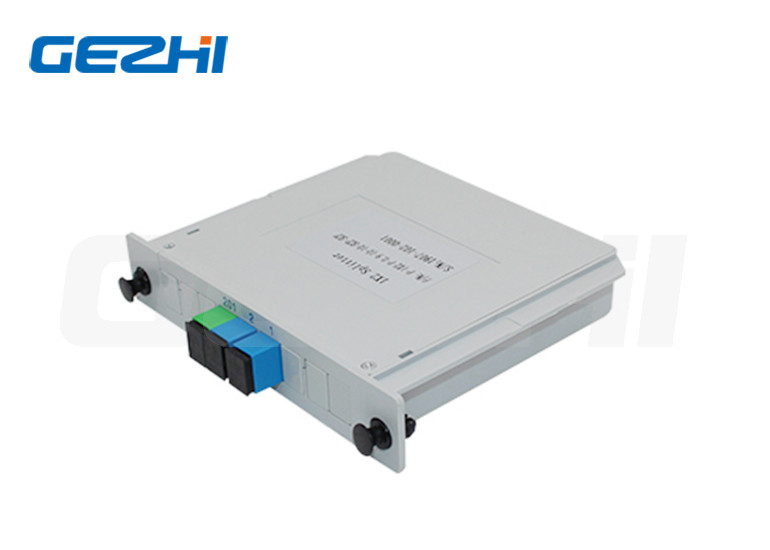

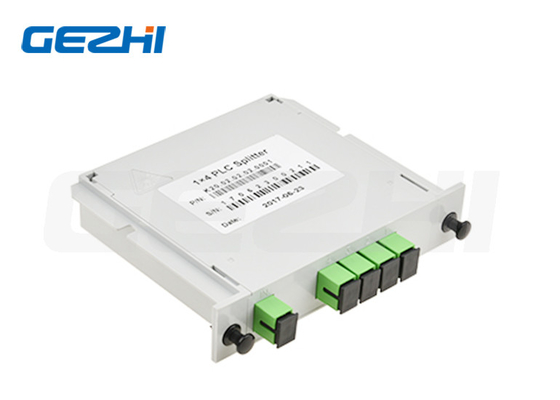

Passive Components 1x2 1x4 PLC Splitter Cassette Plug-in Module
PLC Splitter
The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.
Features & Applications
| Features | Applications |
| ♦ Low Insertion loss ♦ Low PDL ♦ Compact Design ♦ Good channel-to-channel uniformity ♦ Wide Operating Wavelength: From 1260nm to 1650nm ♦ Wide Operating Temperature: From -40℃ to 85℃ ♦ High Reliability and Stability |
♦ FTTX Systems ♦ PON Networks ♦ CATV Links ♦ Optical Signal Distribution |
Specifications
| Parameter | 1xN PLC Splitter Specification | ||||||
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
| Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| Max | 3.8 | 7.1 | 10.3 | 13.5 | 16.5 | 20.5 | |
| Uniformity (dB) | Typical | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 2.5 |
| Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| PDL(dB)Max | Typical | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 |
| Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | |
|
Wavelength department loss(dB) |
Typical | 0.1 | 0.1 | 0.1 | 0.3 | 0.4 | 0.7 |
| Max | 0.2 | 0.3 | 0.4 | 0.6 | 0.8 | 1.0 | |
|
Temperature department loss |
Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Directivity (dB) Min | 55 | ||||||
| Return Loss (dB) Min | 55(50) | ||||||
| Operating Temperature (°C) | -40~ +85 | ||||||
| Storage Temperature (°C) | -40 ~ +85 | ||||||
| Fiber length | 1m or Customized | ||||||
| Fiber Type | G657A | ||||||
| Connector Type | Customized | ||||||
| PLC Splitter Bare Fiber (mm) | 4x4x40 | 4x4x40 | 4x4x40 | 4x7x50 | 4x7x50 | 4x12x60 | |
| PLC Splitter Blcokless mm) | 4x4x40 | 4x7x60 | 4x7x60 | 4x12x60 | 6x20x80 | 6x40x100 | |
| PLC Splitter Module (mm) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 141x115x18 | |
| PLC-splitter-rack-mountable(mm) | 19’1U 2U Rack-Mount Box, LGX Box, ODF Box | ||||||
| GP | XXX | XX | XX | XX | XX | XX |
|
Port Configrition |
Module type | Cable type | Fiber length | Input connector |
Output connector |
|
|
G=Gezhi P=PLC
|
102=1x2 104=1x4 108=1x8 116=1x16 132=1x32 164=1x64 204=2x4 208=2x8 216=2x16 232=2x32 264=2x64 |
BF=Bare Fiber BL=Blockless MO=Module LG=LGX Box RM=Rack Mount CB=Cassette Box XX=Customized
|
00=none 09=900um Loose tube 20=2.0mm 30=3.0mm |
05=0.5m 10=1.0m 15=1.5m 30=3.0m 40=4.0m 50=5.0m ...... |
0=none 1=LC/UPC 2=LC/APC 3=SC/UPC 4=SC/APC 5=FC/UPC 6=FC/APC 7=LC/APC X=Customized |
0=none 1=LC/UPC 2=LC/APC 3=SC/UPC 4=SC/APC 5=FC/UPC 6=FC/APC 7=LC/APC X=Customized |
|
|
