| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-FOC100x |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
Product Overview

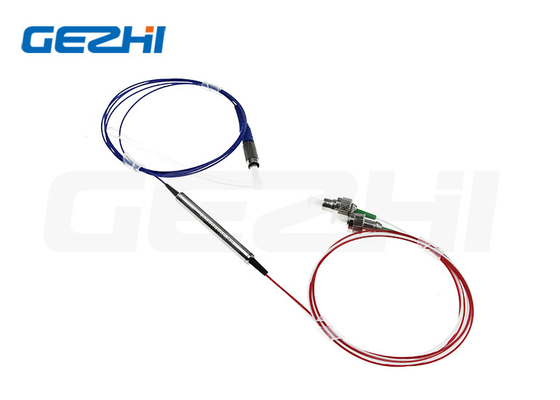

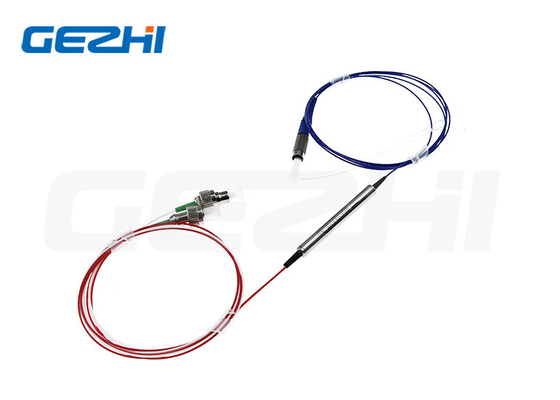

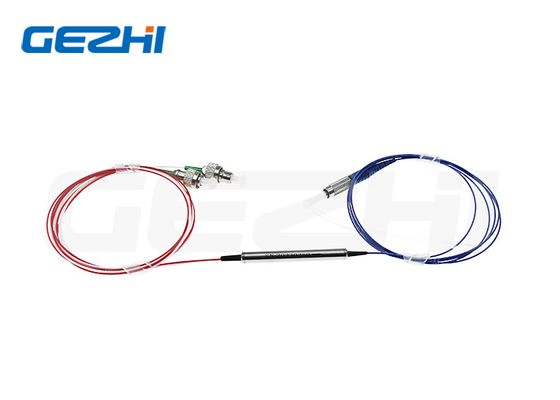

3 Port 1310nm 1550nm Fiber Optical Circulator with FC DIN Connetor
Fiber Optical Circulator
The 1310/1550 optical circulators are non-reciprocal devices that redirect light from port-to-port in one direction while minimizing reflection and scattering in the reverse directions for any state of polarization. GEZHI’s advanced micro optics design features low insertion loss, low polarization sensitivity, high isolation, compact structure and high stability. The excellent characteristics of this product make it an ideal choice for application in fiber amplifier systems, pump laser diodes and optical fiber sensors.
Features & Applications
| Features | Applications |
|
|
Specifications
| Parameter | P Grade | |
| Configuration | Port 1 to Port 2 to Port 3 | |
| Operation Wavelength (nm) | 1310±30 or 1550±30 or 1585±30 | |
| Isolation (dB) | Typical | 0.6 |
| Maximum | 0.8 | |
| Typical Isolation (dB) | ≥50 | |
| Minimum Isolation (dB) | ≥40 | |
| Cross Talk (dB) | ≥50 | |
| Polarization Dependent Loss (dB) | <0.15 | |
| Polarization Mode Dispersion | <0.1 | |
| Return Loss(dB) | ≥50 | |
| Power Handling (mW) | 500 | |
| Opterating Temperature (℃) | -10~+75 | |
| Package dimension (mm) | Φ5.5xL50 or Φ5.5xL63 | |
| PICIR | Wavelength | Package | Fiber Diameter | Fiber Length | Connector |
|
3=3Port 4=4Port S=Specity |
13=1310nm 55=1550nm 58=1580nm C+L=C=L band S=Specify |
S1=5.5x50mm S2=5.5x68mm A9=90x20x10mm S=Specify |
25=250um 09=900um 20=2.0mm 30=3.0mm S=Specify |
05=0.5m 10=1.0m 15=1.5m S=Specify |
FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC LP=LC/PC LA=LC/APC S=Specify |
|
|
