| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-OADM200x |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
Product Overview

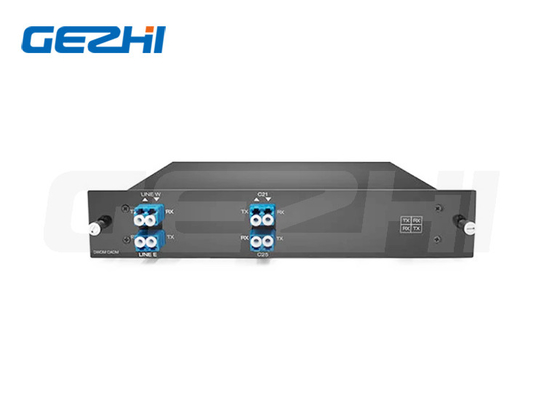

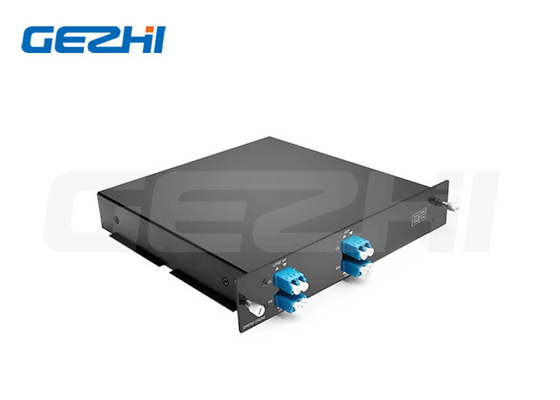

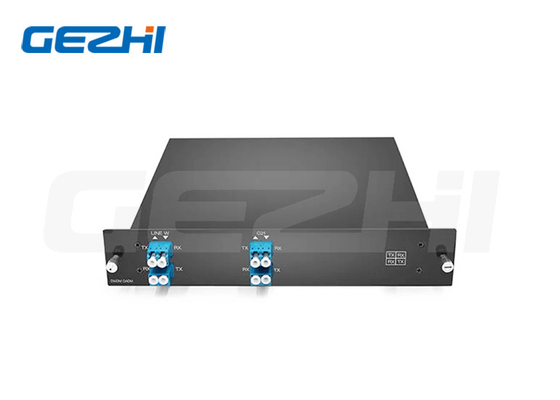

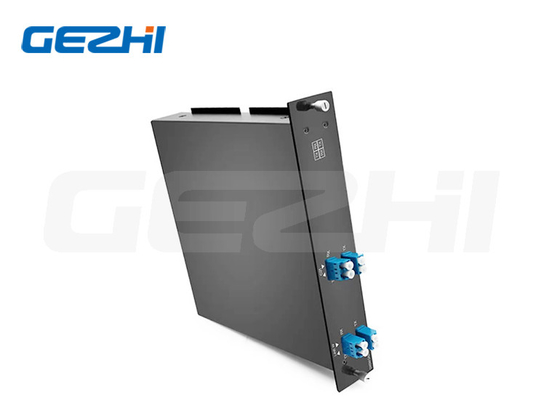

100GHz 2 Channel Passive Double Fiber OADM Module DWDM Multiplexer
DWDM OADM
DWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple 100 GHz DWDM channels in the C-band into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination.Using the DWDM technology can add effectively WDM capability to their existing and new networks, and extend the optical signals transmission distance.
Features & Applications
Features
Applications
Specifications
| Operating Wavelength | 2 Channels C21-C60 | Channel Spacing | 100GHz |
| Passband | ITU±0.11 | Insertion Loss | ≤1.3dB |
| Directivity | ≥50dB | Return Loss | ≥45dB |
| Transmission Direction | West and/or east | Line Type | Dual Fiber |
| Adjacent Channel Isolation | ≥30dB | Non-adjacent Channel Isolation | ≥40dB |
| Polarization Dependent Loss | ≤0.2dB | Polarization Mode Dispersion | ≤0.2ps |
| Maximum Optical Power | 500mW | Dimensions (HxWxD) | 39x208x200mm |
| Operating Temperature | -5°C～+75°C | Storage Temperature | -40°C～+85°C |
|
|
