| Brand Name: | GEZHI or OEM |
| Model Number: | 2CH-OADM-D-WE-S |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |

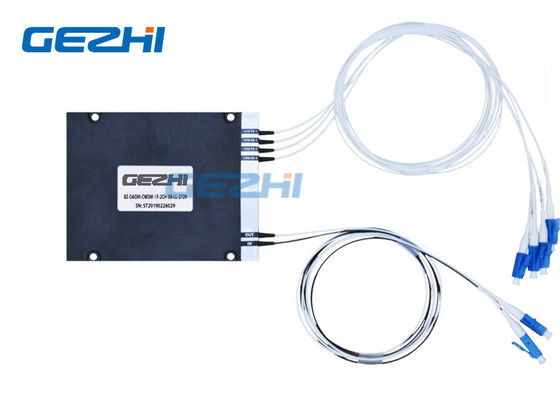

2CH BIDI Optical Add Drop Multiplexer Single Fiber West&East
GEZHI’ 2CH BIDI Optical Add Drop Multiplexer Single Fiber West&East paked in a ABS box module which is a low insertion loss, high density passive optical module and based on the thin film coating technology with C35, C36 wavelength. Its package one 2CH West and East DWDM OADM module in a ABS Box. This 2CH BIDI Optical Add Drop Multiplexer Single Fiber West&East are used in WDM systems for multiplexing and demultiplexing and routing fiber optic signals, selectively adding and dropping individual or sets of wavelength channels from a DWDM stream. This GEZHI's 2CH BIDI Optical Add Drop Multiplexer are available in dual-sided (East and West) configurations supporting up to two wavelengths on one fiber.
| Features | Applications |
|
|
Specification
| Parameter |
Unit |
2CH BIDI OADM West and East | ||
| Add | Drop | |||
| Channel Wavelength | nm |
C35, C36 |
||
|
Center wavelength Accuracy |
nm | ITU-T Grid @DWDM | ||
|
Channel Passband |
nm | 0.8 (100Ghz) | ||
| Insertion Loss | dB | <1.1 | <1.1 | |
| Channel Ripple | dB | 0.5 | ||
| Isolation | Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature Sensitivity |
dB/℃ | <0.005 | ||
|
Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent Loss |
dB | <0.15 | ||
|
Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | >50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -20~+70 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | ABS Box 100x80x10 | ||
2CH BIDI Optical Add Drop Multiplexer Single Fiber West&East
Singe Fiber DWDM OADM Add and Drop Module
Two channel DWDM add & drop multiplexer for EAST&WEST for data transmission over single fibers.
2CH BIDI Optical Add Drop Multiplexer Single Fiber West&East filter cascading
2CH BIDI Optical Add Drop Multiplexer Single Fiber West&East Solution
|
|
