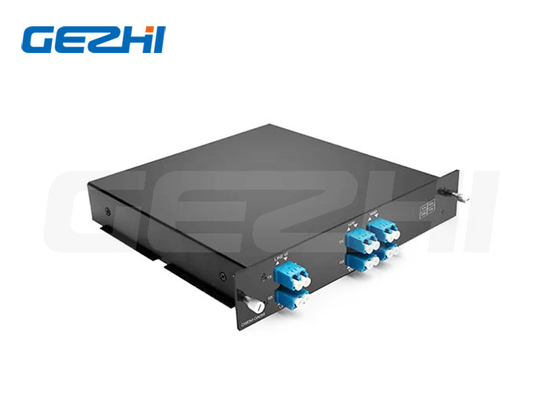

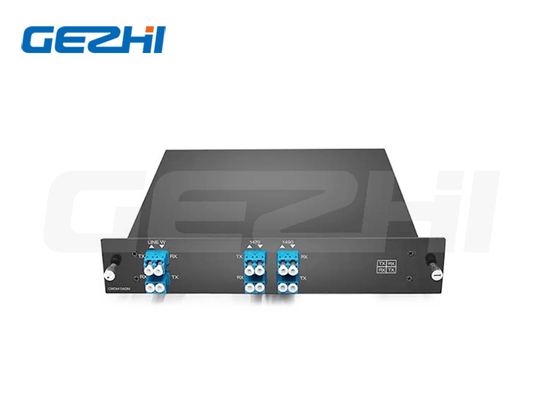

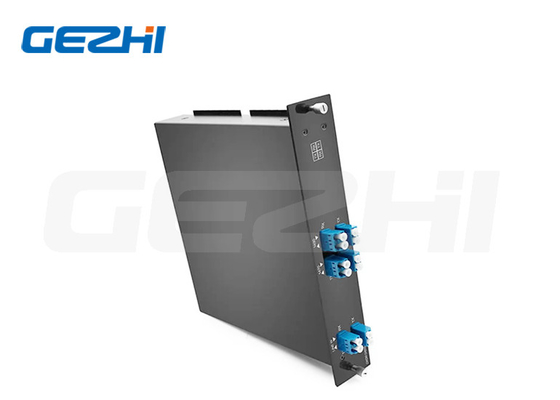

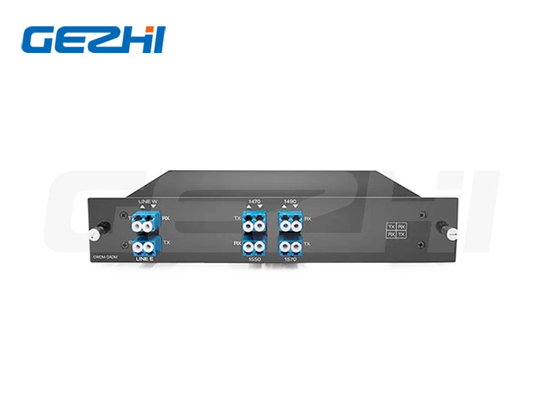

Passive CWDM Double Fiber 4 Channels OADM Multiplexer
CWDM OADM
CWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple CWDM channels into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination.CWDM OADM modules are available in single-sided (East or West) and dual-sided (East and West) configurations supporting up to four wavelengths.
Features & Applications
Features
Low insertion loss
4 channels West & East dual sided
Sinlge Fiber Network
Add & Drop functions in both directions
Industry standard LC connectors
Based on thin film optics with epoxy free optical path
Fully compliant with Telcordia GR1221, GR1209, RoHS, ISO
Applications
Channel Add/Drop
CATV Fiber Optic Links
Coarse WDM Systems
Metro Networks
Specifications
| Parameter | Unit | Specification | |
| Wavelength Range | nm | 1260 ~ 1620 | |
| Center Wavelength | nm | Customer specified | |
| Channel Spacing | nm | 20 | |
| Passband | nm | CW±6.5 | |
| Insertion Loss | COM==>DROP | dB | ≤1.5 |
| ADD==>EXP | |||
| Adjacent Isolation | dB | ≥30 | |
| Non-Adjacent Isolation | dB | ≥45 | |
| PDL | dB | ≤0.1 | |
| Directivity | dB | ≥50 | |
| Return Loss | dB | ≥45 | |
| PMD | ps | ≤0.1 | |
| Power handling(CW) | mW | ≤300 | |
| Operating Temperature | ℃ | -10 to +70 | |
| Storage Temperature | ℃ | -40 to +85 | |
| Fiber Type | G.657.A1 or G.652D | ||
| Fiber Diameter | 3.0mm or 2.0mm,0.9mm with loose tube | ||
| Connector Type | LC/UPC or others | ||
| Fiber Length | m | 1 or others | |
| Optional Moniter port | % | 1 | |
| Package Dimensions | mm |
ABS Cassete:100*80*10.5；140*115*18; ABS mini box:90x20x10； Steel tube :Φ5.5*38； |
|
|
|
