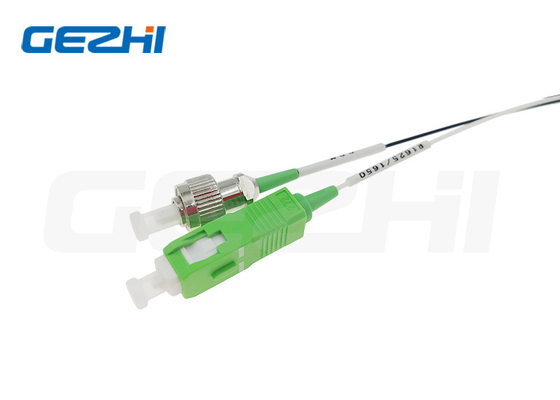

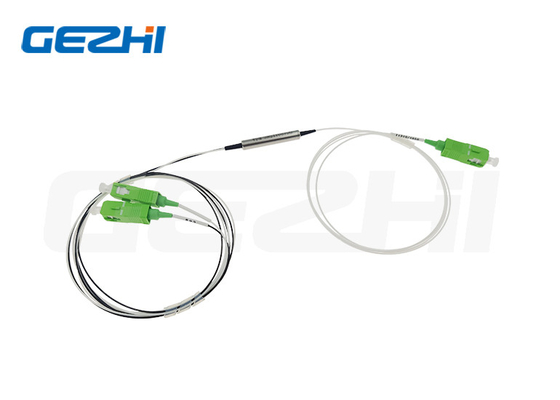

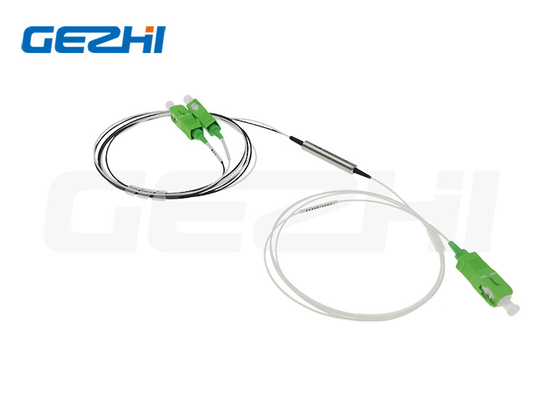

Low insertion loss Fiber Optical PWDM steel tube type for WDM System

Name: Low insertion loss Fiber Optical PWDM steel tube type for WDM System
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-FOP200x
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-FOP200x
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

PWDM

Port:

1x2

Connecctor:

LC/UPC SC/APC Or Customized

Operating Temperature:

-10 ~ +70°C

Warranty:

3 Years

Application:

CATV System

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

WDM System Fiber Optical PWDM

Product Description

Product Overview of PWDM

Low insertion loss Fiber Optical PWDM steel tube type for WDM System

PWDM

PWDM is used for packaging of optical module. It can realize the multiplexing of two communication signal, which expands the capacity of single fiber and achieves bi-directional communication. It is widely used in optical network upgrade and expansion, or introduce new comprehensive business (CATV, TELECOM, integration of three networks-PON+EOC) etc.

Features & Applications of PWDM

Features

♦ Low insertion loss

♦ Low PDL

♦ High channel isolation

♦ Excellent environmental reliability

Applications

♦ WDM system

♦ CATV

Specifications of PWDM

Parameters	Unit	PWDM
Operating Wavelength T: transmission wavelength R: reflection wavelength 1310±50,1490±10, 1550±10 1610±10, 1625±25, 1650±20 λ:CWDM(1260-1620) ITU±7.5	nm	1	T1550 R1310/1490
		2	T1490 R1310/1550
		3	T1310 R1490/1550
		4	T1550/1610 R1310/1490
		5	T1550/1625 R1310/1490
		6	T1625 R1310/1490/1550
		7	T1650 R1310/1490/1550
		8	Tλ
Insertion Loss	dB	Transmission: ≤ 0.6
		Reflection: ≤ 0.4
Transmission Channel Isolation		≥ 30
Reflection Channel Isolation	dB	≥ 15
PDL	dB	≤ 0.1
Wavelength thermal stability	nm/℃	≤ 0.003
Insertion loss thermal stability	dB/℃	≤ 0.005
Return loss	dB	≥ 45
Optical Power	mW	≤ 500
Operating Temperature	℃	-10 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	Φ3.2×14
Note: 1. Customization is available. 2. Specified without connector, and add an additional 0.2dB loss per connector

Odering Information of PWDM

Wavelength

Tube Type

Fiber Length

(Include connector)

Connector

Dimension

T15R13/14=T1550 R1310/1490

T14R13/15=T1490 R1310/1550

T13R14/15=T1310 R1490/1550

T1310=T1310±7.5

X=Others

25=250um

90=900um

X=Others

05=0.5m±0.05m

10=1.0m±0.05m

15=1.5m±0.05m

X=Others

OO:None

FP=FC/PC

FA=FC/APC

SP= SC/PC

SA=SC/APC

STP=ST/PC

STA=ST/APC

LP=LC/PC

LA= LC/APC

X=Others

3214=Φ3.2×14mm

X=Others

FAQ

Q1:Can I have a sample order? What is your MOQ of PWDM?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of PWDM?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of PWDM?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
