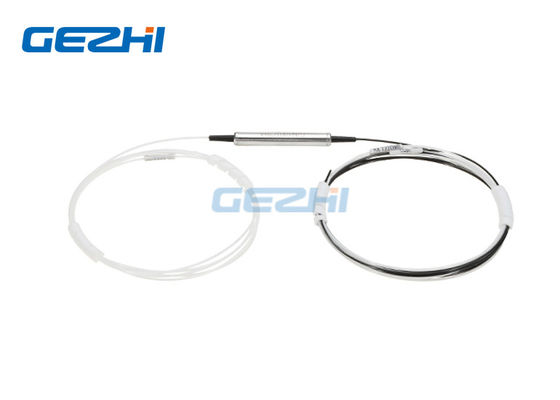

3 port 1480/1550nm FWDM Multiplexers Component
1480/1550nm FWDM - for high-power DWDM optical amplifier and EDFA
1480/1550 nm FWDW is based on thin-film filter technology and metal bonding micro-optic packaging. This component is used to combine or separate 1480 and 1550nm band signal. The devices combine or separate light at different wavelength in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating. These components have been extensively used in EDFAs, Raman amplifiers, WDM networks and fiber optical instruments.
|
Features |
Applications |
|
|
Specification
| Parameter | FWDM | |
| Pass Channel Wavelength Range (nm) | 1530 ~ 1580 (or 1440 ~ 1490) | |
| Reflect Channel Wavelength Range(nm) | 1440 ~ 1490 (or 1530 ~ 1580) | |
| Insertion Loss (dB) | Reflect Channel | < 0.4 |
| Pass Channel | < 0.4 | |
| Insertion Loss Variation(dB) | < 0.3 | |
| Isolation | Reflect Channel | > 12 |
| Pass Channel | > 30 | |
| Insertion Loss Temperature Sensitivity (dB/°C ) | < 0.003 | |
| Polarization Dependent Loss (dB) | < 0.10 | |
| Polarization Mode Dispersion (ps) | < 0.1 | |
| Directivity (dB) | > 60 | |
| Return Loss (dB) | > 50 | |
| Power Handling (mW) | 300 | |
| Operating Temperature (°C) | 0 ~ +70 | |
| Storage Temperature (°C) | -40 ~ +85 | |
| Package Dimensions (mm) |
|
|
3 port 1480/1550nm FWDM Multiplexers Component
Ordering Information:
| A | B | C | D | E |
| Wavelength | Tube Type | Fiber Length (Include connector) |
Connector | Dimension |
|
45: 1480nm pass/1550nm reflect 54: 1550nm pass/1480nm reflect X=Others |
25=250um 90=900um 20:2000um 30=3000um X=Others |
05=0.5m±0.05m 10=1.0m±0.05m 15=1.5m±0.05m X= Others |
00=None FP=FC/PC FA=FC/APC SP= SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LC/APC X=Others |
5534=Φ5.5×34mm 4225=Φ4.2×25mm 9021=90×20×10mm X=Customized |
|
|
