| Brand Name: | GEZHI |
| Model Number: | DWDM Mux Demux |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

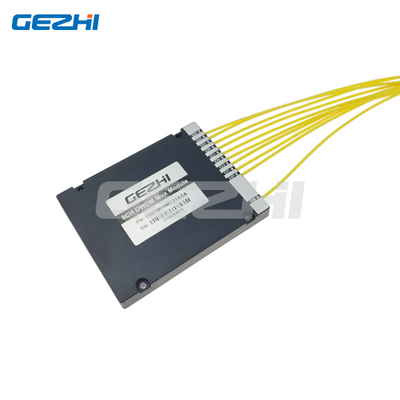

DWDM Mux Demux is a wavelength multiplexing device which can provide multiplexer and demultiplexer functionalities to transmit multiple optical signals over a single optical fiber. It has excellent performance in terms of polarization mode dispersion (≤0.2ps) and channel count (4, 8, 16, 32, 40, 80, 96, 120, 144, 160, 192, 240, 288, 320, 336, 384, 432, 480, 576, 640, 768, 864, 960, 1040, 1152, 1280, 1536). It also has wide operating temperature (-40℃~+85℃) and storage temperature (-40℃~+85℃) as well as a resistance to relative humidity (5%~95%). DWDM Mux Demux is an ideal choice for customers looking for reliable and cost-effective solutions for DWDM network applications.
| Parameter | Specification |
|---|---|
| Connector Type | LC, SC, FC, ST |
| Insertion Loss | ≤7.0dB |
| Relative Humidity | 5%~95% |
| Channel Spacing | 100GHz, 50GHz, 20GHz, 10GHz, 5GHz |
| Storage Temperature | -40℃~+85℃ |
| Polarization Mode Dispersion | ≤0.2ps |
| Operating Temperature | -40℃~+85℃ |
| PDL | ≤0.2dB |
| Wavelength | C-Band, L-Band |
| Channel Count | 4, 8, 16, 32, 40, 80, 96, 120, 144, 160, 192, 240, 288, 320, 336, 384, 432, 480, 576, 640, 768, 864, 960, 1040, 1152, 1280, 1536 |
GEZHI DWDM Mux Demux is a wavelength multiplexing device designed to aggregate and transport multiple optical signals in C-Band or L-Band. It offers a wide variety of channel count options with 4, 8, 16, 32, 40, 80, 96, 120, 144, 160, 192, 240, 288, 320, 336, 384, 432, 480, 576, 640, 768, 864, 960, 1040, 1152, 1280, and 1536 channels. The device is available in different package types including 1U, 2U, 4U, 6U, 8U, 10U to meet varied application requirements. It has low insertion loss of up to 7.0dB and offers channel spacing of 100GHz, 50GHz, 20GHz, 10GHz, and 5GHz. The device is certified according to CE RoHS and ISO9001 standards and can be ordered in minimum quantities of 1. GEZHI DWDM Mux Demux is an ideal choice for long-haul, metro, and data center applications.
DWDM Mux Demux products should be packaged and shipped according to the following steps:
Q1: What is a DWDM Mux Demux?
A1: A DWDM Mux Demux is a device used in optical communications for combining and separating different wavelengths of light over a single fiber. The device is manufactured by GEZHI with model number DWDM Mux Demux, and is certified with CE RoHS and ISO9001. It has a minimum order quantity of 1.
Q2: What are the benefits of using a DWDM Mux Demux?
A2: The DWDM Mux Demux increases the capacity of a fiber optic link by combining multiple wavelengths of light into a single fiber. This enables more data to be transmitted over the same fiber, maximizing the efficiency of the network.
Q3: How does the DWDM Mux Demux work?
A3: The DWDM Mux Demux uses an array of optical filters to combine and separate different wavelengths of light. The device acts as a multiplexer for combining incoming wavelengths of light and as a demultiplexer for separating the wavelengths of light.
Q4: What are the features of the DWDM Mux Demux?
A4: The DWDM Mux Demux features low insertion loss, low polarization dependent loss, high channel isolation, and high return loss. It is also designed to be compatible with a wide range of optical fibers.
Q5: What is the application of the DWDM Mux Demux?
A5: The DWDM Mux Demux is typically used in long-haul optical networks to increase the capacity of the fiber link. It is also used in data center networks and in metro networks for carrying multiple channels of traffic over a single fiber.
Video
|
|
