| Brand Name: | GEZHI |
| Model Number: | DWDM Mux Demux |
| MOQ: | 1 |

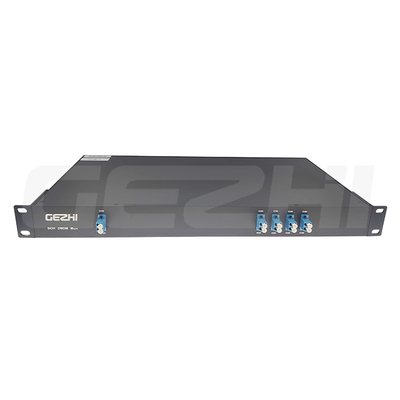

DWDM Mux Demux is a Dense Wavelength Division Multiplexer (DWDM) designed for multiplexing and demultiplexing up to 80 channels of optical signals. It is capable of multiplexing multiple wavelengths into one fiber, and then demultiplexing them into individual channels. This device provides channel spacing of 100GHz, 50GHz, 20GHz, 10GHz, and 5GHz, and has a maximum insertion loss of only 7.0dB. PDL is also very low at ≤0.2dB, making it ideal for high-performance applications.
The DWDM Mux Demux is designed for long-term use in harsh environments. It is temperature-resistant, and can operate in temperatures ranging from -40°C to 85°C. Relative humidity is also resistant, and it can operate in a range of 5% to 95%. This makes it suitable for almost any environment.
Overall, the DWDM Mux Demux is an ideal wavelength multiplexing device with superior performance. It offers low insertion loss, low PDL, and wide temperature and humidity range, making it the perfect choice for optical communication applications.
| Product Name | DWDM Mux Demux |
|---|---|
| Storage Temperature | -40℃~+85℃ |
| Operating Temperature | -40℃~+85℃ |
| Connector Type | LC, SC, FC, ST |
| Channel Count | 4, 8, 16, 32, 40, 80, 96, 120, 144, 160, 192, 240, 288, 320, 336, 384, 432, 480, 576, 640, 768, 864, 960, 1040, 1152, 1280, 1536 |
| Power Consumption | ≤10W |
| Relative Humidity | 5%~95% |
| Wavelength Multiplexing Device | Yes |
| Dense Wavelength Division Multiplexer | Yes |
| Demultiplexer Multiplexer | Yes |
| PDL | ≤0.2dB |
| Polarization Mode Dispersion | ≤0.2ps |
| Package Type | 1U, 2U, 4U, 6U, 8U, 10U |
GEZHI's DWDM Mux Demux is a wavelength multiplexing device widely used in many application scenarios. It is designed to combine, transmit, and separate multiple optical signals over a single optical fiber in order to increase the capacity of existing fiber-optic networks. This product is certified with CE RoHS,ISO9001 and is available in various package sizes such as 1U, 2U, 4U, 6U, 8U and 10U. It offers a return loss of ≥50dB, isolation of ≥30dB and PDL of ≤0.2dB. This wavelength multiplexer/demultiplexer multiplexer can be used for C-Band and L-Band wavelength. It is also specialized for long-haul, high-speed, high-capacity, and dense wavelength division multiplexing (DWDM) applications. This product is a great choice for fiber-optic networks that require efficient and reliable transmission of signals with high bandwidth.
DWDM Mux Demux products must be packaged and shipped with care. The following are the procedures for safely packaging and shipping a DWDM Mux Demux:
