| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-GPON-WDM |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
Product Overview of CEx WDM Module

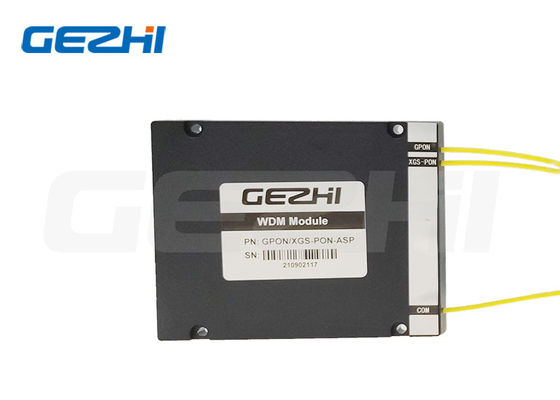

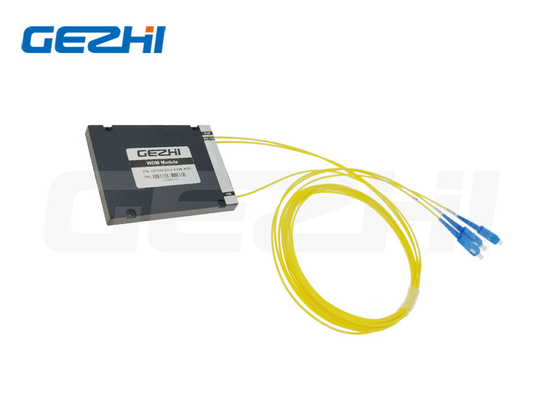

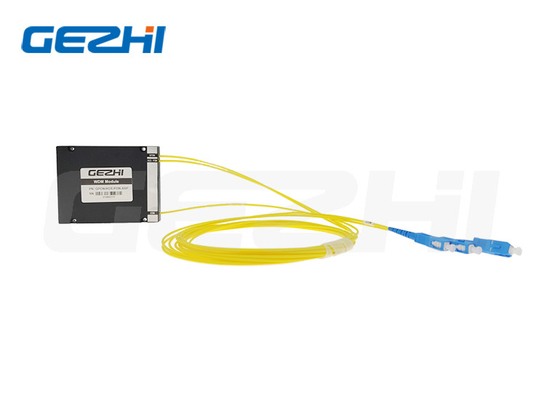

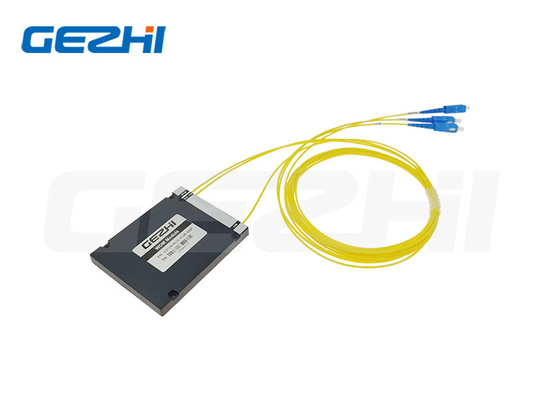

Passive Optical Networks WDM Module GPON XGS PON CEx Multiplexer
CEx Multiplxer
The Coexistence Element (CEx) of xWDM/xPON multiplexer is a single WDM device to combine current G-PON FTTH services with emerging XGS-PON and Next Generation NG-PON2 technologies. Additional provisioning wavelengths with the Coexistence Element include RF, Point to Point (PtP), and OTDR monitoring.Its compliant with ITU-T G.984.5.
GEZHI offers a flexible platform of Coexistence Element products to fit a specific PON deployment that is most cost-effective to your needs – Depending on your requirements each CEx can be fully complemented with all PON services or with only the services requested.
Features & Applications of CEx WDM Module
Features:
RoHS Compliant
Low Insertion Loss
High channel isolation
Available with customized functionalities
Applications:
FTTH access networks
WDM systems
PON SYSTEM
Optical telecommunication networks
Specifications of CEx WDM Module
Note: Customized Specification is available.
The above specifications do not include connector loss.
CEx Multiplexer Module ABS Box Package
| Model | Configuration | Package type | Cable type | Fiber length | Connector |
|
CEx01 CEx02 CEx03 CEx04 CEx05 CEx06 CEx07 CEx08 S=Specify |
1=1unit combo 2=2unit combo 3=3unit combo 4=4unit combo S=Specify |
A0=ABS box 80x60x12mm A1=ABS box 100x80x10mm A2=ABS box 120x80x18mm A3=ABS box 140x115x15mm L1=LGX 129*29*130mm L2=LGX insert in 2slot Rack L4=LGX insert in 4slot Rack R1=19" 1 U Rack R2=2slot 19″1U Rack R4=4slot 19″1U Rack X=Customized
|
00=None 09=900um loose tube 20=2.0mm 30=3.0mm |
00=None 05=0.5m 10=1.0m 15=1.5m S=Specify |
00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify |
|
|
