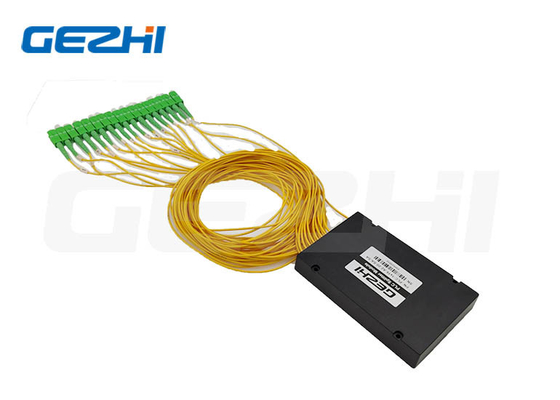

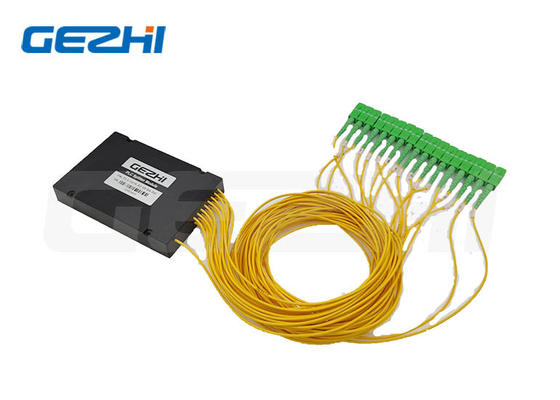

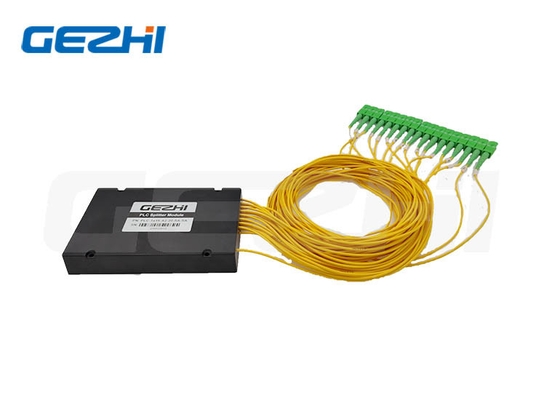

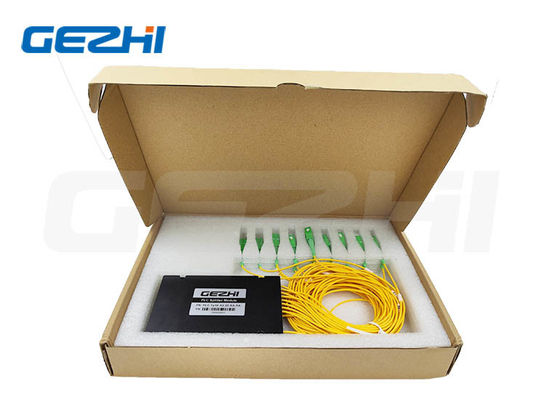

FTTX 1X16 PLC Splitter Module ABS Cassette Type Fiber Splitter
1x16 PLC Splitter
The Planar Lightwave Circuit (PLC) Splitter is developed based on unique silica glass wavequide process with reliable precision aligned fiber pigtail in a miniaturepackage, it provides a low cost light distribution solution with small form factor and high reliability.
The 1x16 ABS box module type PlC Splitters have high performance in terms of low insertion loss, low PDL, high return loss, and excellent uniformity over a wide wavelength range from1260nm to 1650nm and working in temperatures from -40°C to +80°C.
Features & Applications of 1x16 PLC Splitter Module
|
Features *Compact design *Customized packaging and configuration |
Applications *FTTx Systems *Analog/Digital Passive Optical Networks
|
Specifications of 1x16 PLC Splitter Module
| Parameter | 1xN PLC Splitter Specification | ||||||
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
| Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| Max | 3.8 | 7.1 | 10.3 | 13.5 | 16.5 | 20.5 | |
| Uniformity (dB) | Typical | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 2.5 |
| Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| PDL(dB)Max | Typical | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 |
| Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | |
|
Wavelength department loss(dB) |
Typical | 0.1 | 0.1 | 0.1 | 0.3 | 0.4 | 0.7 |
| Max | 0.2 | 0.3 | 0.4 | 0.6 | 0.8 | 1.0 | |
|
Temperature department loss |
Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Directivity (dB) Min | 55 | ||||||
| Return Loss (dB) Min | 55(50) | ||||||
| Operating Temperature (°C) | -40~ +85 | ||||||
| Storage Temperature (°C) | -40 ~ +85 | ||||||
| Fiber length | 1m or Customized | ||||||
| Fiber Type | G657A | ||||||
| Connector Type | Customized | ||||||
| PLC Splitter Bare Fiber (mm) | 4x4x40 | 4x4x40 | 4x4x40 | 4x7x50 | 4x7x50 | 4x12x60 | |
| PLC Splitter Blockless (mm) | 4x4x40 | 4x7x60 | 4x7x60 | 4x12x60 | 6x20x80 | 6x40x100 | |
| PLC Splitter Module (mm) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 141x115x18 | |
| PLC-splitter-rack-mountable(mm) | 19’1U 2U Rack-Mount Box, LGX Box, ODF Box | ||||||
Odering Information of 1x16 PLC Splitter Module
| GP | XXX | XX | XX | XX | XX | XX |
|
Port Configrition |
Module type | Cable type | Fiber length | Input connector |
Output connector |
|
|
G=Gezhi P=PLC
|
102=1x2 104=1x4 108=1x8 116=1x16 132=1x32 164=1x64 204=2x4 208=2x8 216=2x16 232=2x32 264=2x64 |
BF=Bare Fiber BL=Blockless MO=Module LG=LGX Box RM=Rack Mount CB=Cassette Box XX=Customized
|
00=none 09=900um Loose tube 20=2.0mm 30=3.0mm |
05=0.5m 10=1.0m 15=1.5m 30=3.0m 40=4.0m 50=5.0m ...... |
0=none 1=LC/UPC 2=LC/APC 3=SC/UPC 4=SC/APC 5=FC/UPC 6=FC/APC 7=LC/APC X=Customized |
0=none 1=LC/UPC 2=LC/APC 3=SC/UPC 4=SC/APC 5=FC/UPC 6=FC/APC 7=LC/APC X=Customized |
