| Brand Name: | GEZHI or OEM |
| Model Number: | 40CH AAWG DWDM module MUX DEMUX |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
40CH AAWG DWDM module MUX DEMUX Single Fiber 0.7m Length C21-C60 LC/UPC Connector
Description
AAWG module is based on the silica on silicon technology and no electrical power is required. The product offers high stability and reliability, and has small package size.
The product is Telcordia GR-1221-CORE qualified, and RoHS compliant.
Features
Athermal design operates over operating temperature range
Large channel number
Compact size
High stability and reliability
Low insertion loss, high isolation increase system margin
Applications
WDM transmission
Metro and long haul network

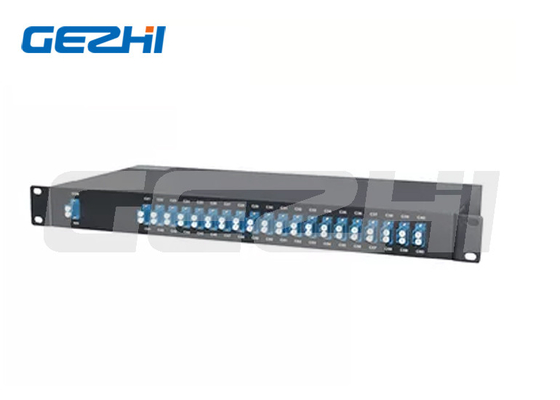

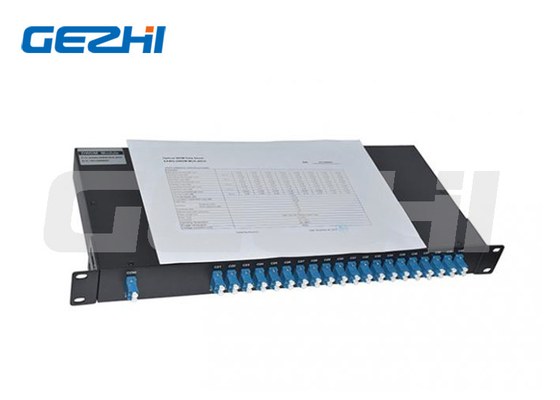

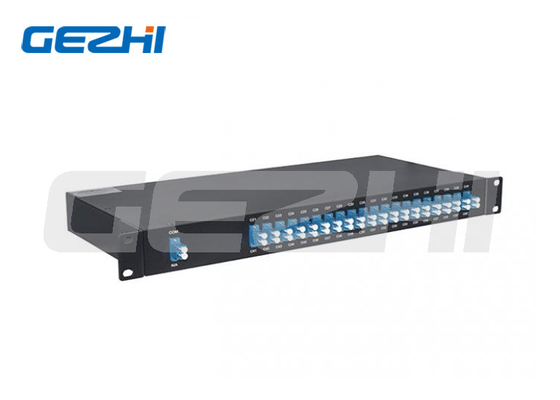

Product Picture
Specifications
| Parameter | Unit | Value | |
| Channel Spacing | GHZ | 100 | |
| Channel Number | CH | 40~48 | |
| Wavelength Accuracy | nm | +0.05 | |
| 1dB Pass Band | nm | ≥0.38 | |
| 3dB Pass Band | nm | ≥0.58 | |
| Insertion Loss | dB | ≤5.5 | |
| Ripple | dB | ≤0.5 | |
| Uniformity | dB | ≤1.5 | |
| Adjacent Crosstalk | dB | ≥23 | |
| Non-adjacent Crosstalk | dB | ≥30 | |
| Total Crosstalk | dB | ≥21 | |
| Polarization Dependent Loss(PDL) | dB | ≤0.5 | |
| PMD | ps | ≤0.5 | |
| Chromatic Dispersion | ps/nm | ±20 | |
| Retumn Loss | dB | ≥40 | |
| Fiber | Input Port | mm | 0.9 |
| Output Ribbon | |||
| Fan Out | mm | 0.9 | |
| Operation Temperature | °C | -5~+65 | |
| Storage Temperature | °C | -40~+85 | |
| Package | mm | 120x70x11 | |
Package
ABS plastic box, LGX metal cassette box, 19inch rack mount.
DWDM Solutions and DWDM SFP/XFP.
Mechanical Dimensions
Guarantee
Brand new.
OEM/ODM is available.
100% through quality test and aging test.
3 years warranty.
Video
|
|
