Overview of 1x64 PLC Splitter Module

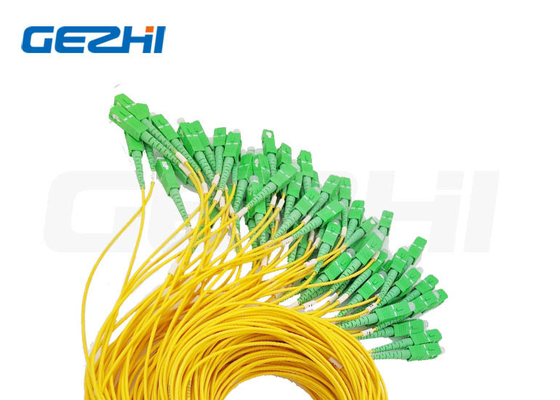

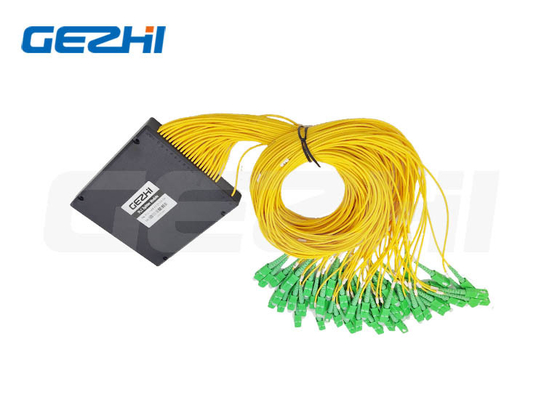

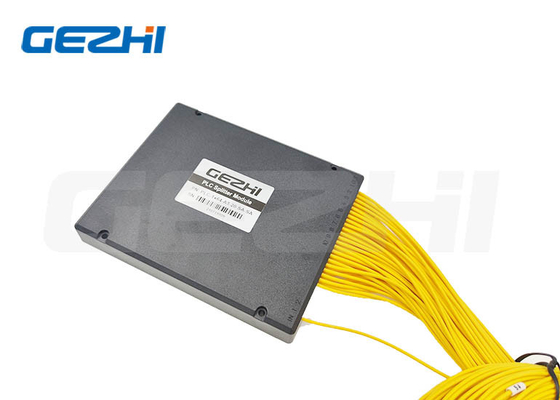

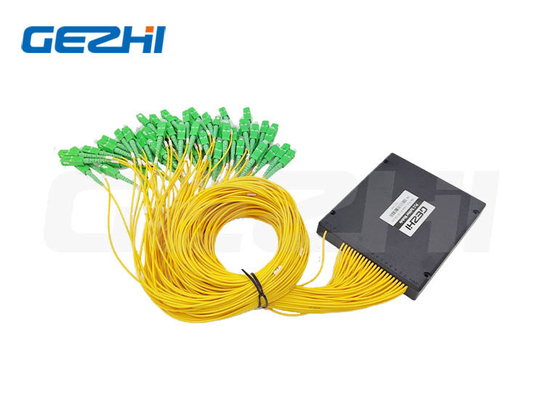

Multi Channel 1X64 PLC Splitter Module with ABS Cassette Type
1x64 PLC Splitter
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
Features & Applications of 1x64 PLC Splitter Module
|
Features Low insertion loss |
Applications
|
Specifications of 1x64 PLC Splitter Module
| Parameter | 1xN PLC Splitter Specification | ||||||
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
| Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| Max | 3.8 | 7.1 | 10.3 | 13.5 | 16.5 | 20.5 | |
| Uniformity (dB) | Typical | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 2.5 |
| Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| PDL(dB)Max | Typical | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 |
| Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | |
|
Wavelength department loss(dB) |
Typical | 0.1 | 0.1 | 0.1 | 0.3 | 0.4 | 0.7 |
| Max | 0.2 | 0.3 | 0.4 | 0.6 | 0.8 | 1.0 | |
|
Temperature department loss |
Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Directivity (dB) Min | 55 | ||||||
| Return Loss (dB) Min | 55(50) | ||||||
| Operating Temperature (°C) | -40~ +85 | ||||||
| Storage Temperature (°C) | -40 ~ +85 | ||||||
| Fiber length | 1m or Customized | ||||||
| Fiber Type | G657A | ||||||
| Connector Type | Customized | ||||||
| PLC Splitter Bare Fiber (mm) | 4x4x40 | 4x4x40 | 4x4x40 | 4x7x50 | 4x7x50 | 4x12x60 | |
| PLC Splitter Blockless (mm) | 4x4x40 | 4x7x60 | 4x7x60 | 4x12x60 | 6x20x80 | 6x40x100 | |
| PLC Splitter Module (mm) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 141x115x18 | |
| PLC-splitter-rack-mountable(mm) | 19’1U 2U Rack-Mount Box, LGX Box, ODF Box | ||||||
Odering Information of 1x64 PLC Splitter Module
| GP | XXX | XX | XX | XX | XX | XX |
|
Port Configrition |
Module type | Cable type | Fiber length | Input connector |
Output connector |
|
|
G=Gezhi P=PLC
|
102=1x2 104=1x4 108=1x8 116=1x16 132=1x32 164=1x64 204=2x4 208=2x8 216=2x16 232=2x32 264=2x64 |
BF=Bare Fiber BL=Blockless MO=Module LG=LGX Box RM=Rack Mount CB=Cassette Box XX=Customized
|
00=none 09=900um Loose tube 20=2.0mm 30=3.0mm |
05=0.5m 10=1.0m 15=1.5m 30=3.0m 40=4.0m 50=5.0m ...... |
0=none 1=LC/UPC 2=LC/APC 3=SC/UPC 4=SC/APC 5=FC/UPC 6=FC/APC 7=LC/APC X=Customized |
0=none 1=LC/UPC 2=LC/APC 3=SC/UPC 4=SC/APC 5=FC/UPC 6=FC/APC 7=LC/APC X=Customized |
