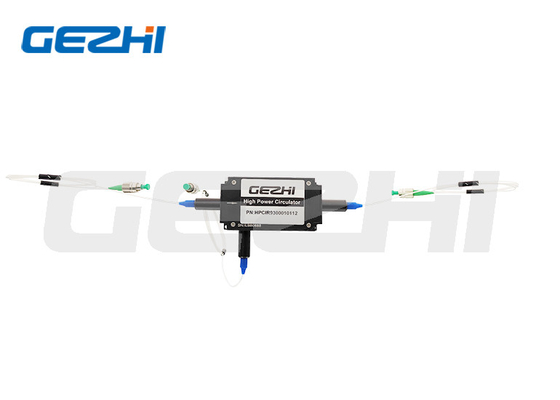

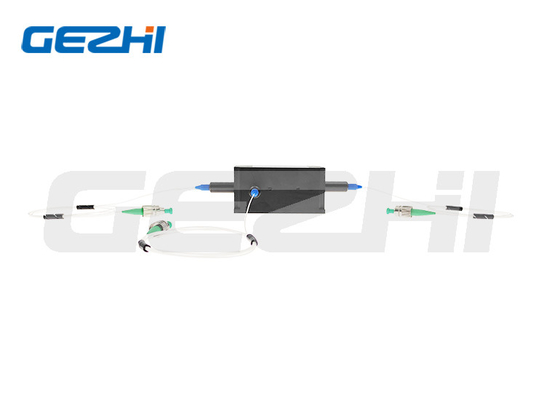

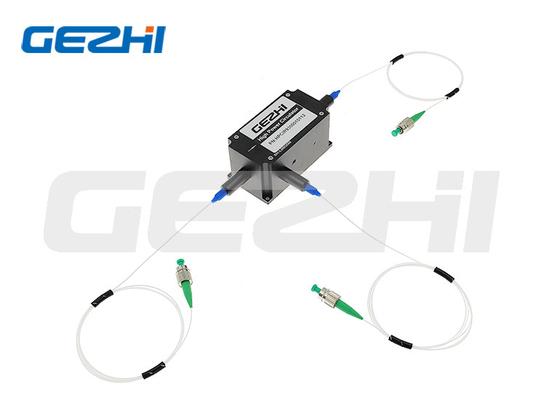

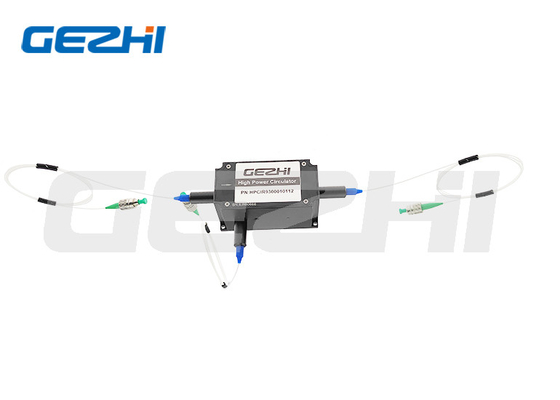

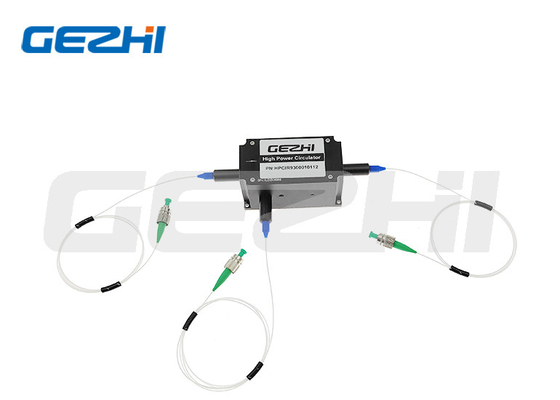

SM Fiber Optic Splitter Circulators,1310 Nm Optical Fiber Circulator Single Mode Type
Optical Fiber Circulator Description
1310 nm SM Fiber Optic Circulators are available unterminated, with FC/PC connectors, or with FC/APC connectors.Circulators can be used to send optical signals through a single fiber in two directions.An optical circulator is analogous to an electronic circulator and both perform similar functions.An optical circulator is a three-port device that allows light to travel in only one direction.A signal entering Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount.
Optical Fiber Circulator Features
High isolation & High Return Loss
Low insertion loss & PDL
Optical Path Epoxy Free
Optical Fiber Circulator Applications
Add-Drop Multiplexing
Fiber Sensors
Bidirectional Pumping
Bidirectional Signal Transmission Systems
Coupling In-Line Chromatic Dispersion Compensation Devices
Optical Fiber Circulator Specifications
| Item | Unit | Parameters | |||
| Operating wavelength | nm | 1064 | |||
| Bandwidth | nm | ±5 | ±10 | ±20 | ±30 |
| Isolation | dB | ≥25 | ≥23 | ≥20 | ≥20 |
| Insertion Loss@Band,23℃ | dB | ≤2.1 | ≤2.6 | ≤3.2 | ≤3.8 |
| PDL | dB | ≤0.2 | |||
| Return Loss | dB | ≥ 50 | |||
| Cross Talk | dB | ≥ 45 | |||
| PDL | dB | ≤ 0.1 | |||
| Maximum Optical Power | mW | ≤ 300 | |||
| Operation Temperature | 0C | 0~50 | |||
| Storage Temperature | 0C | -40~85 | |||
| Package Dimension | mm | 34x8.4x8.4(P1) | |||
Optical Fiber Circulator Dimension(mm)
Optical Fiber CirculatorOrdering Information
| Wavelength | Bandwidth | Fiber Type | Fiber Length | Connector Type |
| 1.1064nm 2.Others |
1.±5nm 2.±10nm 3.±20nm 4.±30nm |
1.250μm fiber 2.900μm fiber 3. Others |
1.0.5 +/- 0.1 m 2. 1.0 +/- 0.1 m 3. Others |
0.No Connector 1. FC/UPC 2. FC/APC 3. SC/UPC 4. SC/APC 5. LC/PC 6. MU/PC 7. Others |
|
|
