Polarization Maintaining Components
Created with Pixso. Dwdm Pm Fiber Filter For Network Polarization Maintaining Fiber

Dwdm Pm Fiber Filter For Network Polarization Maintaining Fiber

Brand Name: GEZHI or OEM
Model Number: customized PM
MOQ: 1pc
Price: Negotiable
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Return Loss:
> 45
Fiber Type:
PM1550-XP Panda Fiber
Package Dimensions:
Ø5.5 X L35
Operating Temperature:
0 ~ +70
Pigtail Length:
1M Or Customized
Cable Color:
White Or 12 Colors
Warranty Time:
3 Years
Connector Type:
SC FC LC ST MU Etc
Packaging Details:
2pcs in a foam with plastic Box
Supply Ability:
50000pcs per month
Highlight:

dwdm pm fiber filter

,

network pm fiber filter

Product Description

PM DWDM Filter, Low IL, High ER, High Isolation, for



Polarization Maintaining DWDM for DWDM network

Product Description

The Polarization Maintaining Filter DWDM is characterized with low IL, high return loss, high extinction ratio and excellent environmental stability and reliability. They are ideal for polarization maintaining fiber amplifiers, DWDM network, and high-speed communication system and instrumentation applications.

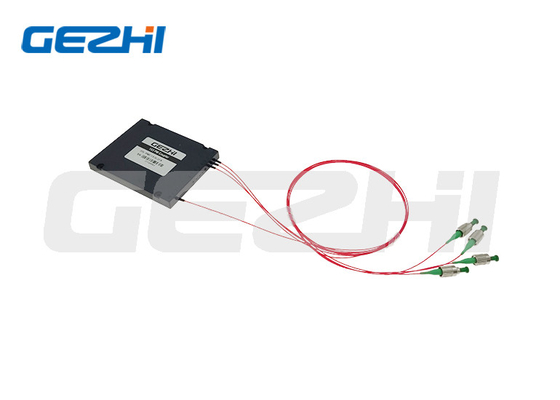

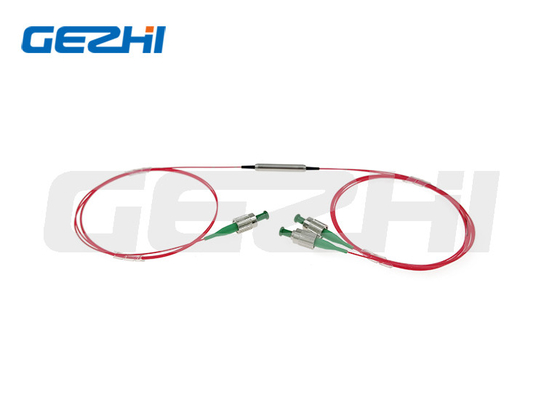

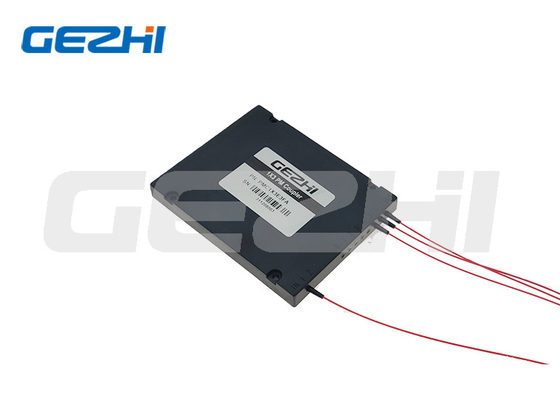

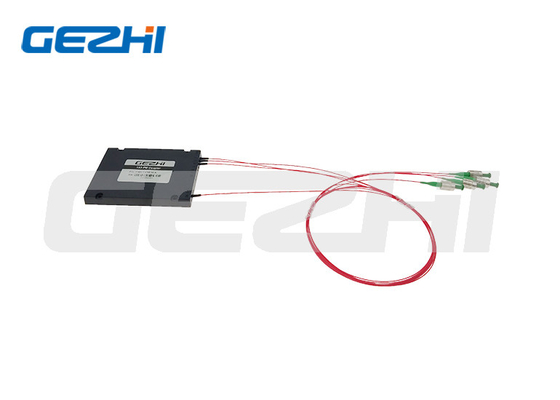

Dwdm Pm Fiber Filter For Network Polarization Maintaining Fiber 0Dwdm Pm Fiber Filter For Network Polarization Maintaining Fiber 1Dwdm Pm Fiber Filter For Network Polarization Maintaining Fiber 2Dwdm Pm Fiber Filter For Network Polarization Maintaining Fiber 3



Features

Low insertion loss

High Extinction Ratio
High channel isolation
High stability and reliability

Application

Channels add / drop

DWDM network
Fiber optical amplifier
Fiber Optic System

Dwdm Pm Fiber Filter For Network Polarization Maintaining Fiber 4

Specification

Parameters Unit Value
Center Wavelength nm 532, 633
Operating Wavelength Range nm ±10
Typ. Insertion Loss at 23℃ dB 1.3
Max. Insertion Loss at 23℃ dB 1.5
Min. Return Loss dB 50
Typ. Extinction Ratio at 23℃ dB 24
Min. Extinction Ratio at 23℃ dB 22
Fiber Type for Input & Output / SM→SM or SM→PM or PM→PM
Max. Optical Power (CW) mW 300
Max. Tensile Load N 5
Operating Temperature -5~+70
Storage Temperature -40~+85
With connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.


Test Environment

Dwdm Pm Fiber Filter For Network Polarization Maintaining Fiber 5



Our Certificate

Dwdm Pm Fiber Filter For Network Polarization Maintaining Fiber 6



More Questions:

1. Can I have a sample order?What is your MOQ?

Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.



2. What is the lead time?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.



3. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange.



4. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.



5. What is your warranty time
We promise 3 years warranty for all products shipped from us.



6. Could i use our own logo and label?

Yes,we could provide a OEM service and make the products with your own label.



7. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Paypal.

Could also support L/C,Credit terms.
