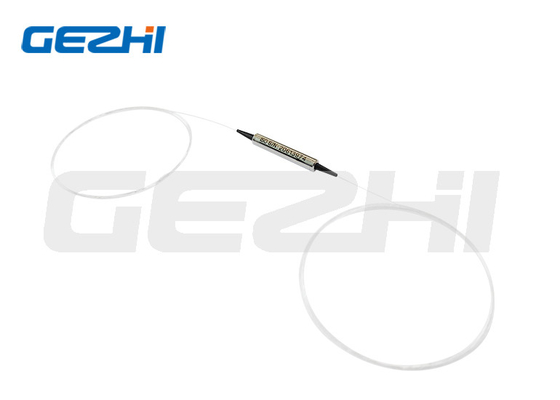

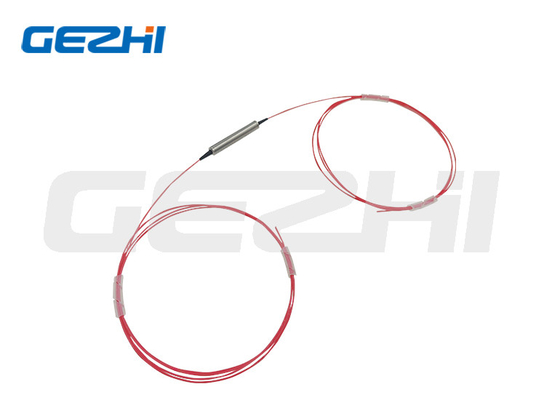

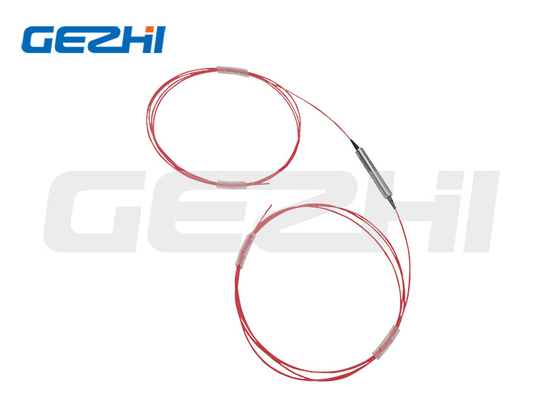

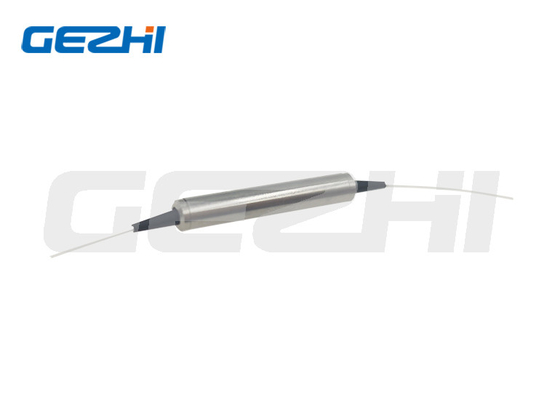

| Brand Name: | GEZHI or OEM |
| Model Number: | PM In-line Isolator |
| MOQ: | 1pc |
| Price: | gotiable |
| Payment Terms: | T/T, Western Union |
Product Description
| Parameter | Unit | Value | |||||
| Stage | - | Single | Dual | Single | Dual | ||
| Center Wavelength | nm | 2050, 2000, 1950 | 1550, 1480, 1310 | ||||
| Operating Wavelength Range | nm | ±20 | |||||
| Typ. Peak Isolation at 23℃ | dB | 20 | 35 | 42 | 58 | ||
| Min. Isolation at 23℃ | dB | 18 | 30 |
28
|
45
|
||
| Typ. Insertion Loss at 23℃ | dB | 0.8 | 1.0 |
0.4
|
0.5
|
||
| Max. Insertion Loss at 23℃ | dB | 1.2 | 1.3 |
0.55
|
0.65
|
||
| Min. Extinction Ratio at 23℃ | Both axis working | dB |
18 20
|
20 | |||
| Fast axis Blocked | dB |
20 25
|
23 | ||||
| Min. Return Loss at 23℃ (input/output) | dB | 50/50 | |||||
| Max. Optical Power (CW) | mW | 500 | |||||
| Fiber Type | - | PM Panda Fiber | |||||
| Max. Tensile Load | N | 5 | |||||
| Operating Temperature | ℃ | 0~+70 | |||||
| Storage Temperature | ℃ | -40~+85 | |||||
With connectors, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.
Package Dimensions
Ordering Information
| PMIS-1111-23-444-56-7-88 | |
|
1111 - Wavelength: 1064=1064nm, 1030=1030nm, 980=980nm,..... |
2000=2000nm, 1550=1550nm, 1480=1480nm, 1310=1310nm, SSSS=Specified |
|
2 - Core Type: S=Single-Core |
S=Single-core, D=Dual-core |
|
3 - Working Axis: F=Fast axis blocked, B=Both axis working, N=Non-PM |
B=Both axis working, F=Fast axis blocked |
|
444 - Fiber Type: 003=PM980, 004=Hi1060, 014=PM1060L, SSS=Specified |
001=PM1550, 002=PM1310, 045=PM1950, SSS=Specified |
|
5 - Package Dimensions: 0=58x28x26mm |
0=5.5x35mm, S=Specified |
|
6 - Pigtail Type: 0=bare fiber, 1=900μm loose tube, S=Specified |
0=bare fiber, 1=900μm loose tube, S=Specified |
|
7 - Fiber Length: 0.8=0.8m, 1.0=1.0m. S=Specified |
0.8=0.8m, 1.0=1.0m, S=Specified |
|
88 - Connector Type: N=None |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified |
|
|
