100GHz 4 8 16 18 Channel DWDM Mux Demux Module Passive Optical Multiplexer

Name: 100GHz 4 8 16 18 Channel DWDM Mux Demux Module Passive Optical Multiplexer
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: DWDM108XXX
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	DWDM108XXX
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Channel Spacing:

100GHz

Product Name:

DWDM Mux Demux

Channel Number:

4, 8, 16, 18 Or Customized

Fiber Type:

SMF-28e

Fiber Connector:

LC/UPC, FC/APC, SC/APC Etc

Application:

Data Center

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

18 Channel DWDM Mux Demux Module

Data Center DWDM Mux Demux

100GHz Passive Optical Multiplexer

Product Description

Product Overview of DWDM Mux Demux

100GHz 4 8 16 18 Channel DWDM Mux Demux module Passive Optical Multiplexer

DWDM Mux Demux

DWDM (Dense Wavelength Division Multiplexing) is a combination of a set of optical wavelengths that can be transmitted with one fiber. This DWDM Module launched by GEZHI Photonics is based on the thin film coating technology. This is a laser technology used to increase bandwidth on existing fiber-optic backbones. It enables optical fiber networks to transmit signals of several wavelengths simultaneously.

GEZHI Photonics provide full range of DWDM Mux Demux with customized Channel, Wavelength, Power, Fiber type and connector type. Also Low insertion type is available

Features of DWDM Mux Demux

Features:
•Low Insertion Loss

•High Isolation

•High Stability & Reliability

•Industrial Operating Temperature

•(-40~+80℃  available)

•Customized Package type

•Stainless Steel tube, ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

Specifications of DWDM Mux Demux

Parameter	Unit	DWDM Mux Demux
Channel Spacing	nm	100GHz or 200GHz
Center Wavelength	nm	ITU Grid
Channel Passband	nm	0.22 (100GHz) / 0.5 (200GHz)
Channel Number	/	4CH	8CH	16CH
Insertion Loss	dB	<1.5	<2.5	<5.5 or <3.5(with skip)
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Express Port	dB	>15
Polarization Dependent Loss	dB	<0.2
Polarization Mode Dispersion	dB	<0.1
Directivity	dB	>50
Return Loss	dB	UPC >45 APC>50
Power Handling	mW	<500 (High Power type available)
Fiber Type	/	SMF-28e (Polarization Maintaining Type available)
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Package Type	mm	ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

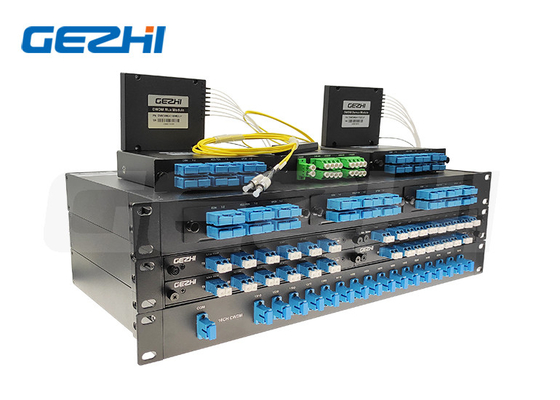

100GHz 4 8 16 18 Channel DWDM Mux Demux Module Passive Optical Multiplexer 0

ABS Plug-in Box

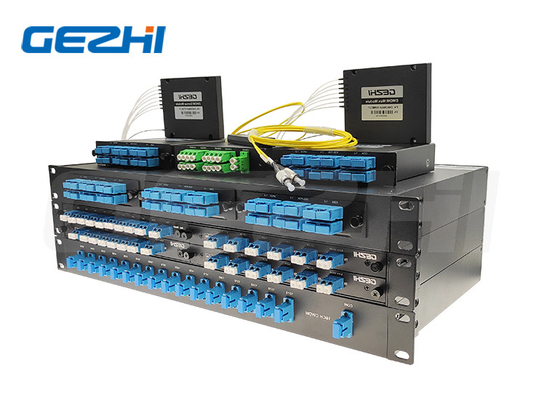

100GHz 4 8 16 18 Channel DWDM Mux Demux Module Passive Optical Multiplexer 1

LGX Chassis

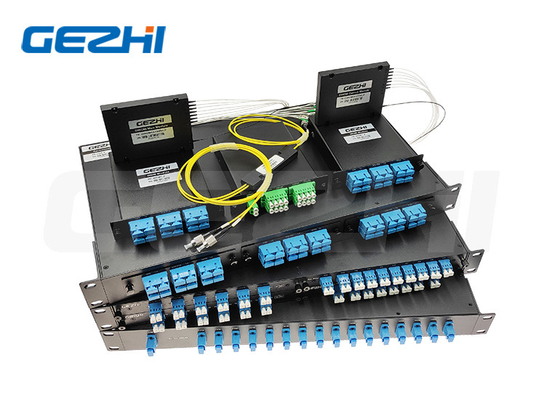

100GHz 4 8 16 18 Channel DWDM Mux Demux Module Passive Optical Multiplexer 2

Front elevation

FAQ

Q1:Can I have a sample order? What is your MOQ of DWDM Mux Demux?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of DWDM Mux Demux?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
