| Brand Name: | GEZHI or OEM |
| Model Number: | PM FWDM |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

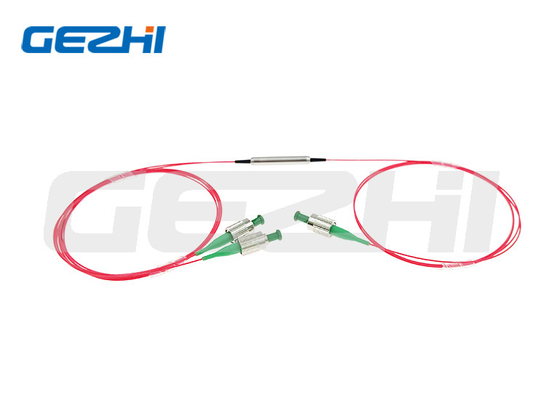

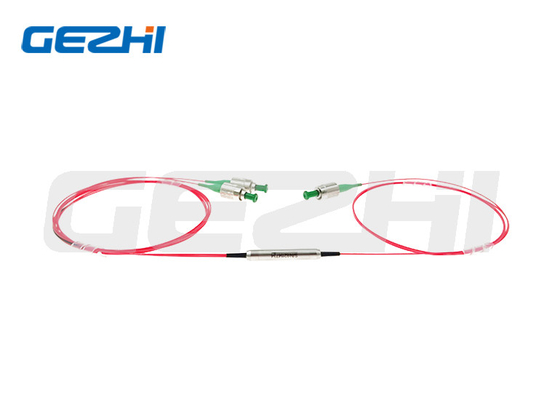

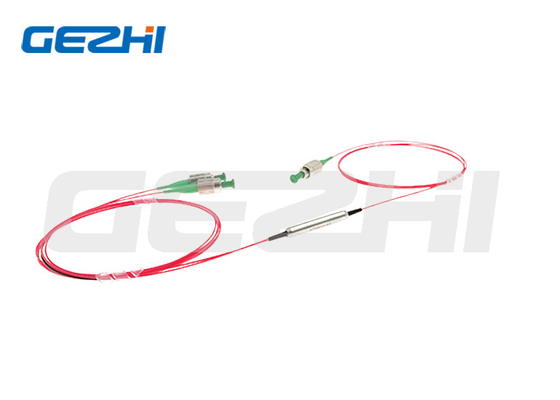

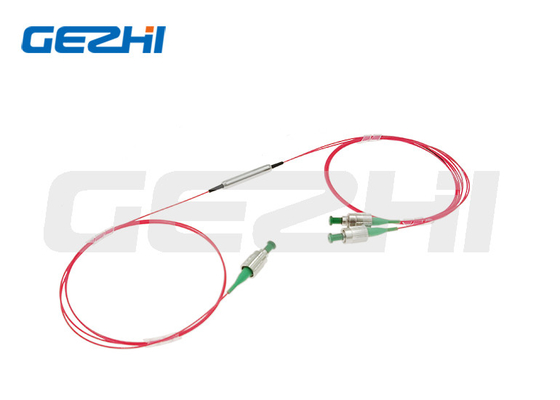

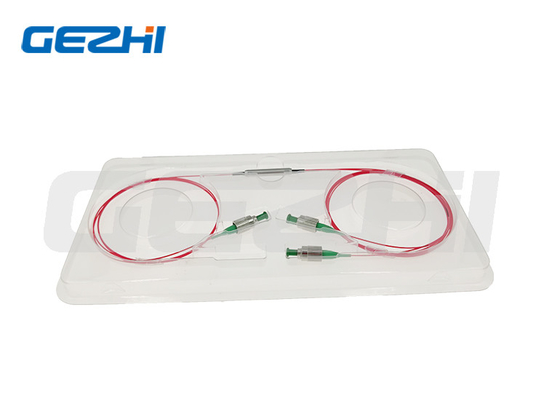

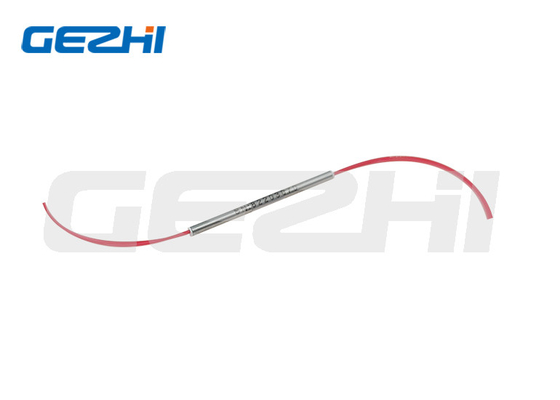

1x2 Polarization Maintaining Filter Wavelength Division Multiplexer for CATV System
Product Overview
The polarization maintaining filter WDM series provides wavelength division multiplexing while maintaining signal polarization. The PM FWDM is based on environmentally stable thin film filters technology and is characterized with high extinction ratio, low insertion loss, and high return loss. They are ideal for high speed WDM network systems.The polarization maintaining filter WDM series provides wavelength division multiplexing while maintaining signal polarization.
Application
CATV System
CWDM/DWDM Module
EPON/GPON Networks
Feature
Low Insertion Loss
High Return Loss
High Reliability & Stability
Product Specifications
| Parameters | Unit | Values | ||||||
| Type | - | 1064/980 | 1550/980 | 1550/1064 |
1550/1480
|
2000/1550
|
||
| Transmission Wavelength | nm | 1020~1080 | 1520~1580 | 1520~1580 | 1535~1565 | 1950~2050 | ||
| Reflection Wavelength | nm | 960~990 | 960~990 | 1020~1080 | 1480±10 | 1570±10 | ||
|
Max. Insertion Loss at 23℃ |
Transmission Channel | dB | 0.8 | 0.7 | 0.8 | 0.8 | 0.8 | |
| Reflection Channel | dB | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | ||
| Min. Transmission Isolation @Reflection | dB | 30 | 30 | 30 | 30 | 25 | ||
| Min. Reflection Isolation @Transmission | dB | 15 | 15 | 15 | 15 | 12 | ||
| Max. Channel Flatness | dB | 0.4 | ||||||
|
Min. Extinction Ratio at 23℃ |
Transmission Channel | dB | 20 | |||||
| Reflection Channel | dB | 18 | ||||||
| Max. Wavelength Thermal Stability | nm/℃ | 0.003 | ||||||
| Max. Insertion Loss Thermal Stability | dB/℃ | 0.005 | ||||||
| Min. Return Loss at 23℃ | dB | 50 | ||||||
| Max. Power Handling (CW) | mW | 500 | ||||||
| Max. Tensile Load | N | 5 | ||||||
| Operating Temperature | ℃ | 0~+70 | ||||||
| Storage Temperature | ℃ |
-40~+85 |
||||||
With connectors, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.
Dimensions
Ordering Information
| PMFWDM-1111-23-444-555-67-8-999 | |
| 1111 - Wavelength: | 5506=T1550nm/R1064nm, 0698=T1064nm/R980nm, SSSS=Specified |
| 2 - Pump Type: | F=Forward, B=Backward |
| 3 - Working Axis for Signal Route: | B=Both axis working, F=Fast Axis Blocked |
| 444 - Fiber Type for Com & Pass: | 001=PM1550, 003=PM980, 045=PM1950, SSS=Specified |
| 555 - Fiber Type for Ref: | 001=PM1550, 003=PM980, 004=Hi1060, 008=SMF-28E, SSS=Specified |
| 6 - Package Dimensions: | 0=φ5.5x35mm, S=Specified |
| 7 - Pigtail Type: | 0=bare fiber, 1=900μm loose tube |
| 8 - Fiber Length: | 0.8=0.8m, 1.0=1m, S=Specified |
| 999 - Connector Type: | 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified |
|
|
