| Brand Name: | GEZHI or OEM |
| Model Number: | 1x2,2x2 Polarization Maintaining Fused Coupler |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

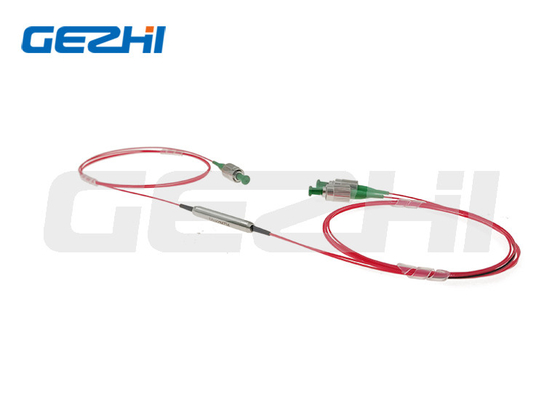

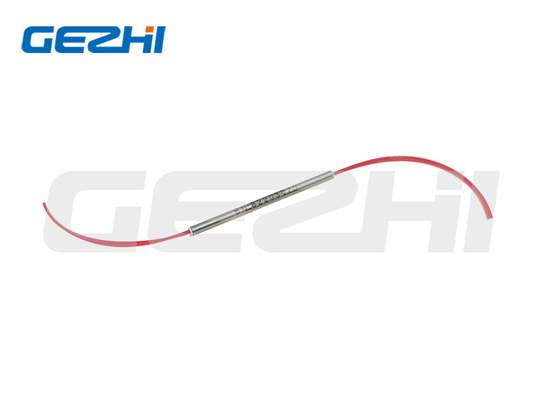

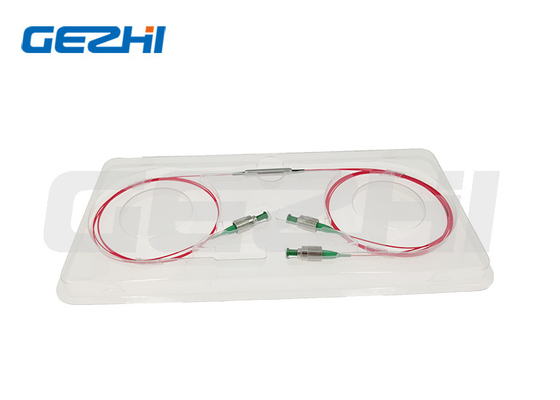

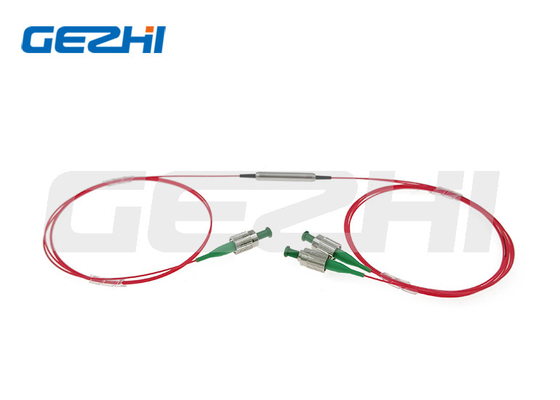

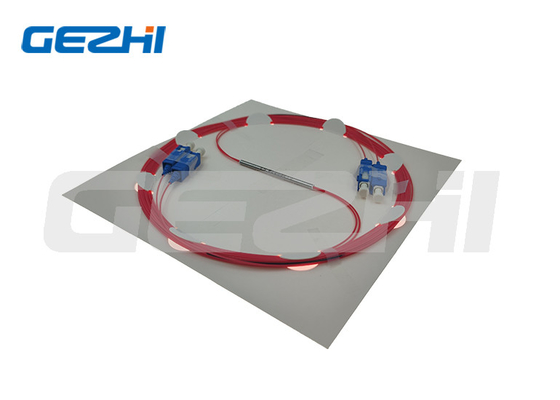

525nm, 630nm, 780nm, 850nm, 980nm 1x2,2x2 Polarization Maintaining Fused Fiber Optic Coupler
Product Overview
1x2,2x2 Polarization Maintaining Fused Fiber Optic Coupler uses unique fusing technique and polarization maintaining fiber to build the polarization maintaining fused standard coupler (PMC).The coupling ratio could be selected according to customer’s request. It features low excess loss, small size and high polarization extinction ratio. PMC is widely used for optical sensors and optical gyro, optical amplifier.
Application
Fiber Amplifier
Power Monitoring
Fiber Optical Instrument
FEATURES
Low Insertion Loss
High Return Loss
High Extinction Ratio
| Parameters | Unit | Values | |||||||||||||||
| Type | / | 1x2 or 2x2 | |||||||||||||||
| Center Wavelength | nm | 525 | 630 | 780 | 850 | 980 | |||||||||||
| Operating Wavelength Range | nm | ±10 | ±10 | ±15 | ±15 | ±20 | |||||||||||
| Max. Excess Loss | dB | 1.2 | 0.6 | 0.6 | 0.6 | 0.5 | |||||||||||
| Tap Coupling Ratio | % | 1±0.5%, 5±1.0%, 10±2.0%, and 50% | |||||||||||||||
| Insertion Loss | dB | IL related to Coupling Ratio | |||||||||||||||
| Extinction Ratio | dB | 1x2:≥20 ; 2x2:≥18 | |||||||||||||||
| Return Loss | dB | ≥55 | |||||||||||||||
| Max Power Handling (CW) | W | 0.1 | 0.1 | 0.5, 1, or 3 | 0.5, 1, or 3 | 0.5, 1, or 3 | |||||||||||
| Tensile Load | N | ≤5 | |||||||||||||||
| Operating Temperature | ℃ | -5~+75 | |||||||||||||||
| Storage Temperature | ℃ | -40~+85 | |||||||||||||||
| Package Dimension | mm | φ3x54mm or φ3x60mm | |||||||||||||||
| Coupling Ratio Tolerance | % | 1/99 | 2/98 | 5/95 | 10/90 | 20/80 | 30/70 | 40/60 | 50/50 | ||||||||
| ±0.5 | ±0.6 | ±1.0 | ±1.5 | ±2.0 | ±2.5 | ±3.0 | ±3.5 | ||||||||||
Note: 1. the PM fused coupler is both axis working, no axis can be blocked; default test extinction ratio is on the slow axis.
Above specifications are for device without connector, If with connector, IL will be 0.3dB higher, return loss with be reduce 5dB and Extinction Ratio will reduce 2dB.
2. For >10W high power applications, we will use heat sink package
3. If there is pulse application, please be sure to inform us of pulse energy and peak power.
Dimensions
Ordering Information
PMFBTC-XXXX-XX-XX-X-XX-XX-XX-XX-XX
| ①Wavelength: | 525=525nm; 630=630nm; 780=780nm; 850=850nm; 980=980nm; S=Specify |
| ②Configuration Type: | 12=1x2, 22=2x2 |
| ③Coupling Ratio: | 50=50/50; 40=40/60; 30=30/70; 20=:20/80; 10=10/90; 01=1/99; S=Specify |
| ④Fiber Type: | PM460-HP; PM630-HP; PM780; PM980; S=Specify |
| ⑤Power Handling: | 0L=0.5W; 01=1W; 02=2W |
| ⑥Package Dimensions: | S2=3.0x54mm; S3=3.0x60mm; S=Specify |
| ⑦Pigtail Type: | 00=bare fiber; 09=900um loose tube |
| ⑧Fiber Length: | 08=0.8m; 10=1m; S=Specify |
| ⑨Connector Type: | FA=FC/APC; FP=FC/UPC; SA=SC/APC; SP=SC/UPC; S=Specify |
|
|
