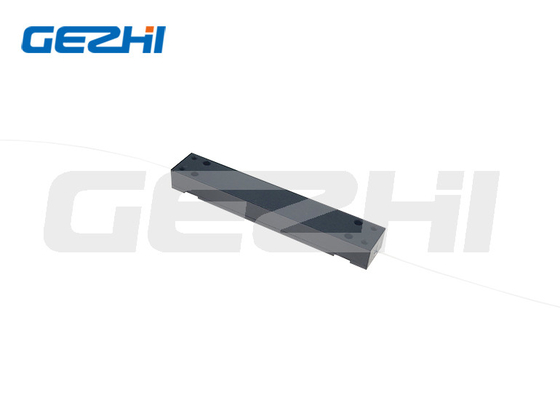

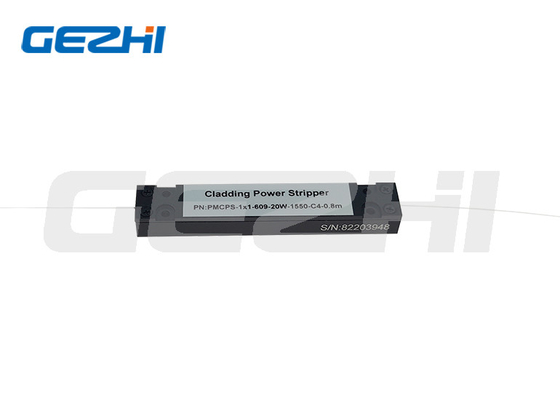

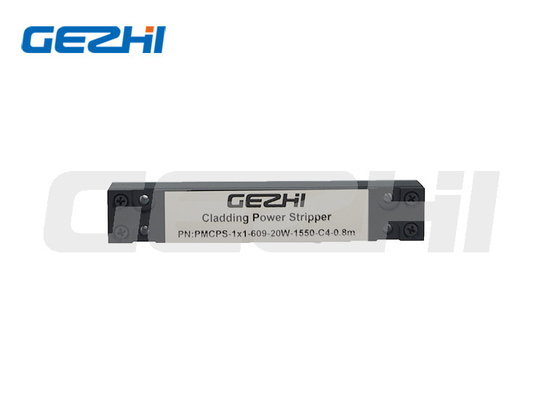

1x1 PM Cladding Power Strippers High Stable / Reliable For Fiber Amplifier

Brand Name: GEZHI or OEM
Model Number: PM CPS-1x1
MOQ: 1pc
Price: Negotiable
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Port:
1x1
Product Name:
PM Cladding Power Stripper
Storage Temperature:
-40~+85(℃)
Application:
Fiber Amplifier
Warranty:
3 Years
Fiber Type:
PM Fiber
Packaging Details:
Paper box
Supply Ability:
100000Channel per month
Highlight:

1x1 PM Cladding Power Strippers

,

High Stable PM Cladding Power Strippers

Product Description



 Product Overview of PM Cladding Power Stripper

High Stable and Reliable 1x1 PM Cladding Power Strippers Fiber Amplifier



PM Cladding Power Strippers



GEZHI PM Cladding Power Stripper is made by Fusion Splice technology with PM fiber in and PM fiber out. It features High Strip Ratio and High Optical Power. The PM Cladding Power Stripper will trasmit the signal power and at the same time remove the residual pump light in the cladding. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available.







Features & Applications of PM Cladding Power Stripper

Features:

  • High Stripping Efficiency
  • Low Signal Loss and Beam Quality Degradation
  • High Extinction Ratio (for PM Fiber)
  • Stable and Reliable

Applications:

  • High Power Fiber Lasers
  • Fiber Amplifiers

Specifications of PM Cladding Power Stripper

Parameter Specification
Port Configuration 1x1
Signal Wavelength 800 nm ~ 2000 nm
Pump Wavelength 800 nm ~ 1000 nm
Signal Fiber (Note 2) x/125 x/250 x/400
Cladding Attenuation >20 dB >18 dB >18 dB
Signal Insertion Loss <0.13 dB
Power Handling (Note 3) 20W 100W 1000W
Polarization Extinction Ratio (PM fiber) >17 dB (Input PER >25 dB)
Return Loss >45 dB
Pigtail Standard 1m or custom
Operating Temperature 0~75°C
Storage Temperature -40~85°C








Package

1x1 PM Cladding Power Strippers High Stable / Reliable For Fiber Amplifier 0

FAQ

Q1:Can I have a sample order? What is your MOQ of PM cladding power stripper?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time of PM cladding power stripper?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
