| Brand Name: | GEZHI or OEM |
| Model Number: | Cladding Power Stripper |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

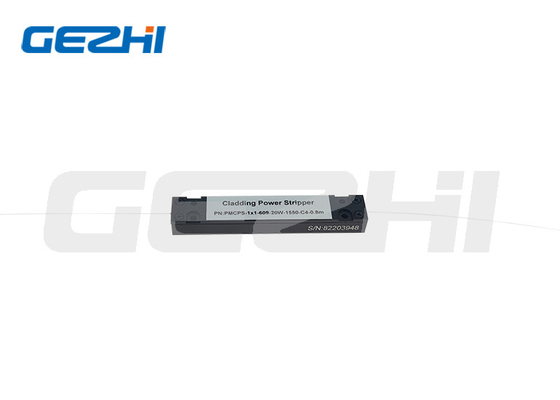

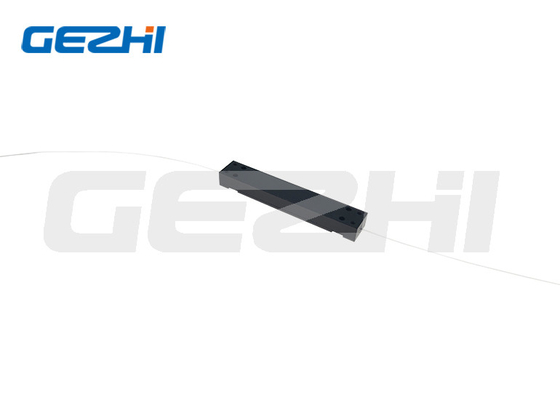

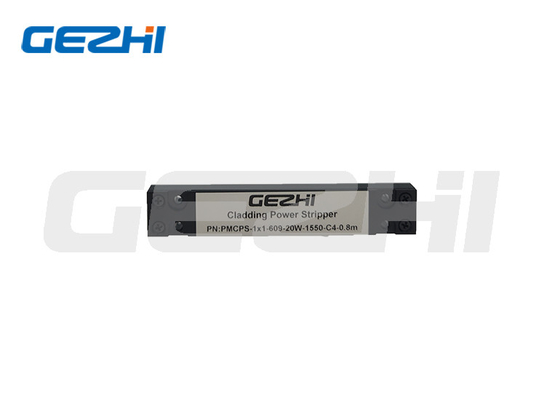

Cladding Power Stripper for High Power Fiber Laser and fiber amplifiers
Products Description
The High Power Cladding Power Stripper (CPS) is designed for high power fiber laser and amplifier applications. The device is ideal for stripping residual pump power, ASE and escaped core modes within the inner cladding of cladding fibers while preserving minimal degradation of signal power and beam quality. Reflected signal power into the inner cladding from the facet can be stripped out as well.
Features
Low Insertion Loss
High Power Handling
High Power Absorption
PM and Non-PM are available
Fiber can be customized
High Reliability
Excellent Temperature Stability
Applications
Fiber amplifier and laser systems
Cladding-mode-free high power beam delivery
ASE stripping
Industrial/Biomedical/Telecom/Metrology
Life Science/Imaging/Quantum optics
Technical Index
| Parameter | Specification | ||
|---|---|---|---|
| Port Configuration | 1x1 | ||
| Signal Wavelength | 800 nm ~ 2000 nm | ||
| Pump Wavelength | 800 nm ~ 1000 nm | ||
| Signal Fiber (Note 2) | x/125 | x/250 | x/400 |
| Cladding Attenuation | >20 dB | >18 dB | >18 dB |
| Signal Insertion Loss | <0.13 dB | ||
| Power Handling (Note 3) | 20W | 100W | 1000W |
| Polarization Extinction Ratio (PM fiber) | >17 dB (Input PER >25 dB) | ||
| Return Loss | >45 dB | ||
| Pigtail | Standard 1m or custom | ||
| Operating Temperature | 0~75°C | ||
| Storage Temperature | -40~85°C | ||
Note 1: Values are referenced without connectors.
Note 2: x specifies fiber core size.
Note 3: Bottom side of these devices must be mounted on a heat sink with good heat conduction. For cladding power >200W, water cooling is required.
|
|
