Polarization Maintaining Components
Created with Pixso. 2x2 Polarization Maintaining Coupler High Isolation For Power Monitoring

2x2 Polarization Maintaining Coupler High Isolation For Power Monitoring

Brand Name: GEZHI or OEM
Model Number: 2x2 SM PM FBT Fiber Optic Splitter
MOQ: 1pc
Price: Negotiable
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Network:
Wireless Lan, Wired LAN, POE, Wifi, 4g
Port Type:
3-port Or 4-port
Fiber Type:
PM Panda Fiber
Package:
Steel Tube 5.5mm*35mm
Wavelength:
1310nm, 1550nm Or 1064nm
Pigtail Length:
1M Or Customized
Cable Color:
White Or 12 Colors
Operating Temperature:
-40~85
Connector Type:
SC FC LC ST MU Etc
Packaging Details:
2pcs in a foam with plastic Box
Supply Ability:
50000pcs per month
Highlight:

2x2 Polarization Maintaining Coupler

,

High Isolation PM Coupler

Product Description

2x2 Polarization Maintaining Coupler

Product Description



2x2 Polarization Maintaining Coupler High Isolation For Power Monitoring 0

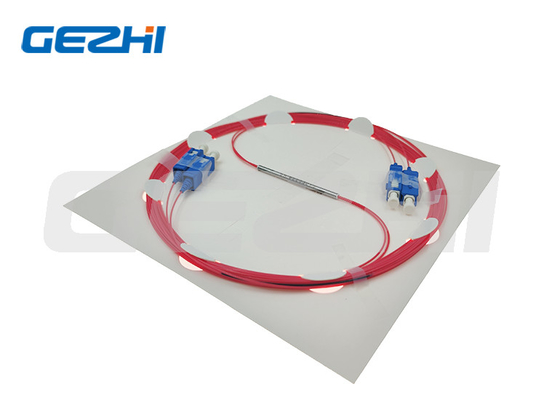

2x2 Polarization Maintaining Coupler High Isolation For Power Monitoring 1



Features

Low Insertion LossHigh Extinction Ratio
High Isolation
High stability and reliability

Application

EDFA
Fiber Optical Instrument
Power Monitoring
Fiber Sensor



Specification

Parameter
1 x 2
2 x 2
Wavelength (nm)
1310, 1550
1064
1310, 1550
1064
Operating Bandwidth (nm)
±40
±20
±40
±20
Excess Loss (dB)
≤0.7
≤0.8
≤1.0
≤1.2
Uniformity (dB)
≥0.4
≥0.5
≥0.6
≥0.8
Coupling Ratio (%)
1/99~50/50
Extinction Ratio (dB)
Type 2
(Both of axis working)
≥20
≥20
≥18
≥18
Type 1
(Fast axis blocked)
≥22
≥22
≥22
≥22
Return loss (dB)
≥50
Power handling (mW)
≤300
Fiber Type
Tap port 2
SMF-28 or HI 1060 or Panda fiber
Port 1 & 3
Panda fiber
Operating temperature (℃)
-5~+70
Storage temperature (℃)
-40 ~ +80
Dimensions (mm)
φ5.5×L35

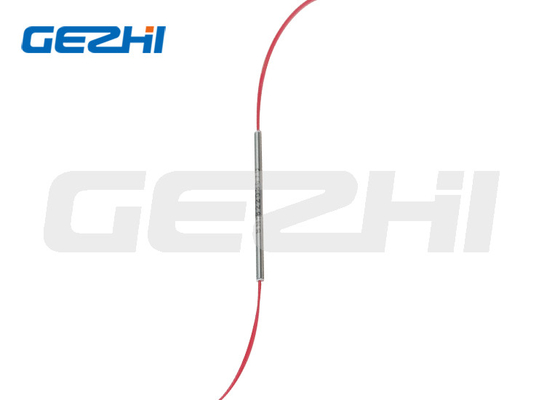

2x2 Polarization Maintaining Coupler High Isolation For Power Monitoring 2
Test Environment



2x2 Polarization Maintaining Coupler High Isolation For Power Monitoring 3

Packing & Shipping

2x2 Polarization Maintaining Coupler High Isolation For Power Monitoring 4



More Questions:

1. Can I have a sample order?What is your MOQ?

Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.



2. What is the lead time?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.


3. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Paypal.

Could also support L/C,Credit terms.



4. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange.



5. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.



6. What is your warranty time
We promise 3 years warranty for all products shipped from us.



7. Could i use our own logo and label?

Yes,we could provide a OEM service and make the products with your own label.









Contact us

Send your inquiry Details in the Belows for SAMPLE Click "SEND" now!
Estella Zhang will reply you asap.

Wechat: +8615907245385

Skype:15907245385

Cell Phone:+86-15907245385

Website: www.gezhiphotonics.com
