| Brand Name: | GEZHI or OEM |
| Model Number: | PM Patch Cord |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
Product Overview of PM Patch Cord

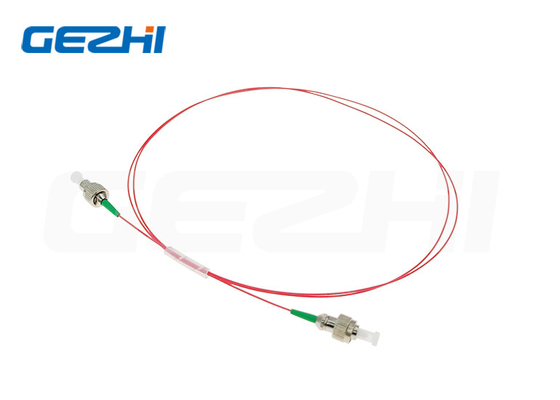

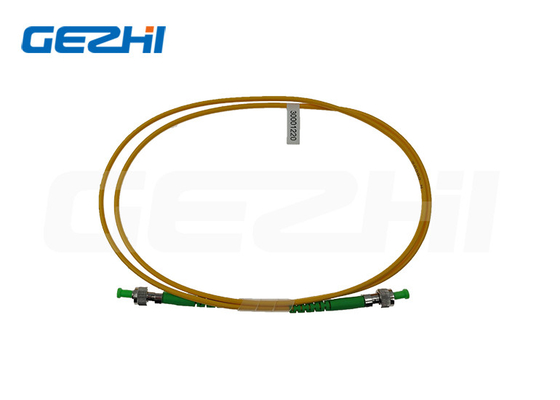

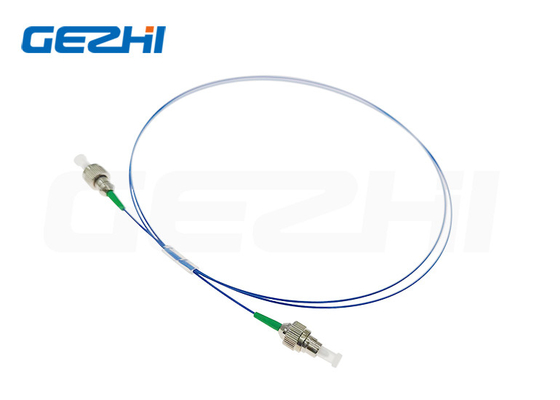

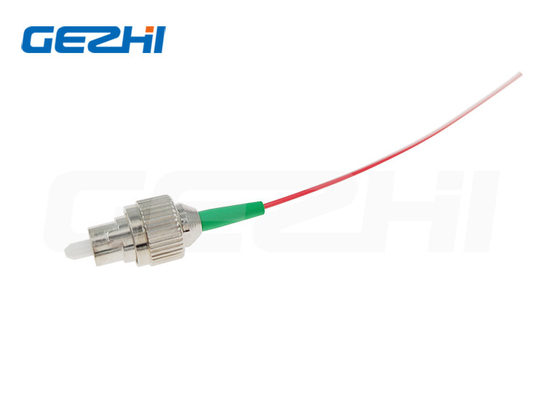

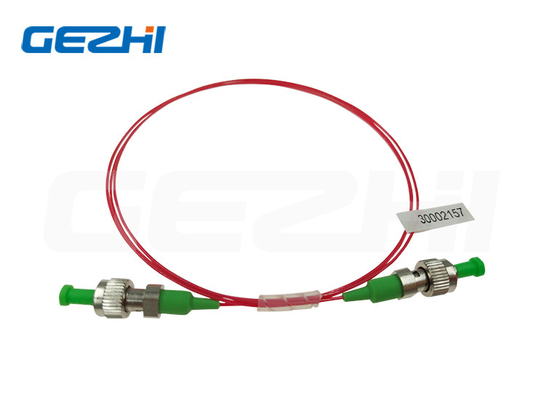

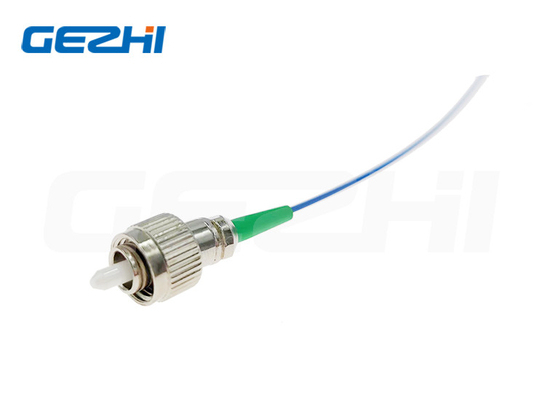

FC SC LC Fiber Polarization Maintaining Patch Cord applied Optical Fiber Amplifiers
Polarization Maintaining Patch Cord
GEZHI Polarization Maintaining (PM) patchcords are based on a high precision butt-style connection technique. The PM fiber optical cable with orthogonal “slow” and “fast” axis with different propagation constants.
The Polarization Maintaining (PM) fiber optic cable of GEZH Photonics are using famous PM optical fibers (Such as Nufern PM Fibers or Fujikura PM Fibers ).We also provide Polarization Maintaining (PM) fiber optical jumper cord with customized spec.
Features & Applications of PM Patch Cord
Features
Low Insertion Loss
High Return Loss
High Extinction Ratio
High Reliability
High Stability
Applications
Optical Fiber Amplifiers
Test Instrument
Fiber Sensor
Research
Fiber Laser
Specifications of PM Patch Cord
| Parameter | Unit | Value | |||||
| Connector Type | - | FC, SC, LC | |||||
| Center Wavelength | nm | 2000, 1950 | 1550, 1310 | 1060, 980 | 850, 780 | 633, 532 | |
| Max. Insertion Loss | dB | 0.5 | 0.3 | 0.5 | 0.5 | 0.5 | |
| Min. Extinction Ratio at 23℃ | dB | 22 | 23 | 23 | 22 | 22 | |
| Min. Return loss | UPC Type | dB | 50 | ||||
| APC Type | dB | 60 | |||||
| Fiber Type | - | PM Panda fiber | |||||
| Key Orientation | - | Slow Axis | |||||
| Tolerance for Axis Alignment | deg | ±3 | |||||
| Operating Temperature | ℃ | -20~+70 | |||||
| Storage Temperature | ℃ | -40~+85 | |||||
| The default connector key is aligned to slow axis. | |||||||
Dimension
Odering Information of PM Patch Cord
| PMJP-1111-2-333-4-5-67 | |
|
1111 - Wavelength: -Center Wavelength: |
2000=2000nm, 1550=1550nm, 1310=1310nm, 1064=1064nm, 980=980nm,... |
|
2 - Axis Alignment: -Key Orientation: |
S=Slow axis, F=Fast axis |
|
333 - Fiber Type: -Fiber Type: |
001=PM1550, 002=PM1310, 003=PM980, SSS=Specified |
|
4 - Pigtail Type: -Connector for Output: |
0=bare fiber, 1=900μm loose tube, 2=2.0mm loose tube, 3=3.0mm loose tube |
|
5 - Fiber Length: -Pigtail Type: |
0.8=0.8m, 1.0=1m, ......, 20=20m, S=Specified |
|
6 - Connector for Input: -Fiber Length: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified |
|
7 - Connector for Output: -Connector for Input: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified |
FAQ
Q1:Can I have a sample order of Polarization Maintaining Patch Cord? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales.
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of Polarization Maintaining Patch Cord?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time Polarization Maintaining Patch Cord?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
|
|
