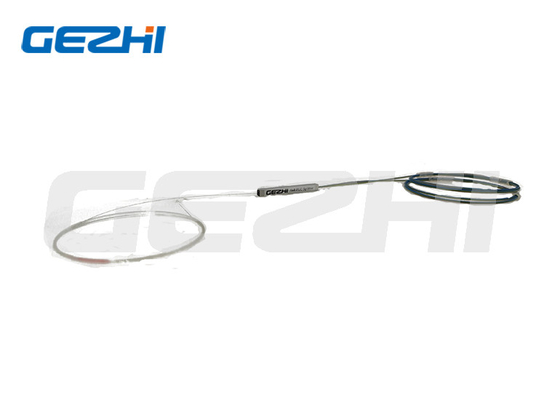

Micro Steel Tube FTTH PLC Fiber Optic Splitter SC UPC APC 1x8 PLC Splitter

Name: Micro Steel Tube FTTH PLC Fiber Optic Splitter SC UPC APC 1x8 PLC Splitter
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x8 PLC Splitter Bare Fiber
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x8 PLC Splitter Bare Fiber
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength:

1260-1650nm

Warranty Time:

3 Years

Fiber Type:

G657A1

Package:

Stainless Steel Tube

Application:

GEPON

Port:

1x8

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

Steel Tube PLC Fiber Optic Splitter

FTTH PLC Fiber Optic Splitter

UPC APC 1x8 PLC Splitter

Product Description

Ordering Information

XXX

Port

Configrition

Module type

Cable type

Fiber length

Input connector

Output

connector

G=Gezhi

P=PLC

102=1x2

104=1x4

108=1x8

116=1x16

132=1x32

164=1x64

204=2x4

208=2x8

216=2x16

232=2x32

264=2x64

BF=Bare Fiber

BL=Blockless

MO=Module

LG=LGX Box

RM=Rack Mount

CB=Cassette Box

XX=Customized

00=none

09=900um

Loose tube

20=2.0mm

30=3.0mm

05=0.5m

10=1.0m

15=1.5m

30=3.0m

40=4.0m

50=5.0m

......

0=none

1=LC/UPC

2=LC/APC

3=SC/UPC

4=SC/APC

5=FC/UPC

6=FC/APC

7=LC/APC

X=Customized

0=none

1=LC/UPC

2=LC/APC

3=SC/UPC

4=SC/APC

5=FC/UPC

6=FC/APC

7=LC/APC

X=Customized

Product Overview

Micro Steel Tube FTTH PLC Fiber Optic Splitter 1x8 SC UPC APC Fiber Optic PLC Splitter

1x8 PLC Splitter Bare Fiber

PLC Splitter is Based on the Planar Waveguide Technology. It Provides a Low Cost Power Distribution Solution with Small Form Factor and High Reliability.

Specifications

Parameter		1xN PLC Splitter Specification
Operating Wavelength (nm)		1260 ~ 1650
Type		1x2	1x4	1x8	1x16	1x32	1x64
Insertion Loss (dB)	Typical	3.6	6.8	10.0	13.0	16.0	19.5
Insertion Loss (dB)	Max	3.8	7.1	10.3	13.5	16.5	20.5
Uniformity (dB)	Typical	0.4	0.5	0.5	1.0	1.0	2.5
Uniformity (dB)	Max	0.6	0.6	0.8	1.2	1.5	2.5
PDL(dB)Max	Typical	0.1	0.1	0.1	0.2	0.2	0.2
PDL(dB)Max	Max	0.15	0.15	0.25	0.3	0.3	0.3
Wavelength department loss(dB)	Typical	0.1	0.1	0.1	0.3	0.4	0.7
Wavelength department loss(dB)	Max	0.2	0.3	0.4	0.6	0.8	1.0
Temperature department loss	Typical	0.3	0.3	0.3	0.4	0.4	0.4
Temperature department loss	Max	0.5	0.5	0.5	0.5	0.5	0.5
Directivity (dB) Min		55
Return Loss (dB) Min		55(50)
Operating Temperature (°C)		-40~ +85
Storage Temperature (°C)		-40 ~ +85
Fiber length		1m or Customized
Fiber Type		G657A
Connector Type		Customized
PLC Splitter Bare Fiber (mm)		4x4x40	4x4x40	4x4x40	4x7x50	4x7x50	4x12x60
PLC Splitter Blockless (mm)		4x4x40	4x7x60	4x7x60	4x12x60	6x20x80	6x40x100
PLC Splitter Module (mm)		100x80x10	100x80x10	100x80x10	120x80x18	120x80x18	141x115x18
PLC-splitter-rack-mountable(mm)		19’1U 2U Rack-Mount Box, LGX Box, ODF Box

Features

♦Low Insertion loss

♦Low PDL

♦Compact Design

♦Good channel-to-channel uniformity

♦Wide Operating Wavelength: From 1260nm to 1650nm

♦Wide Operating Temperature: From -40℃ to 85℃

♦High Reliability and Stability
